PureMedia Rack Mount Receivers

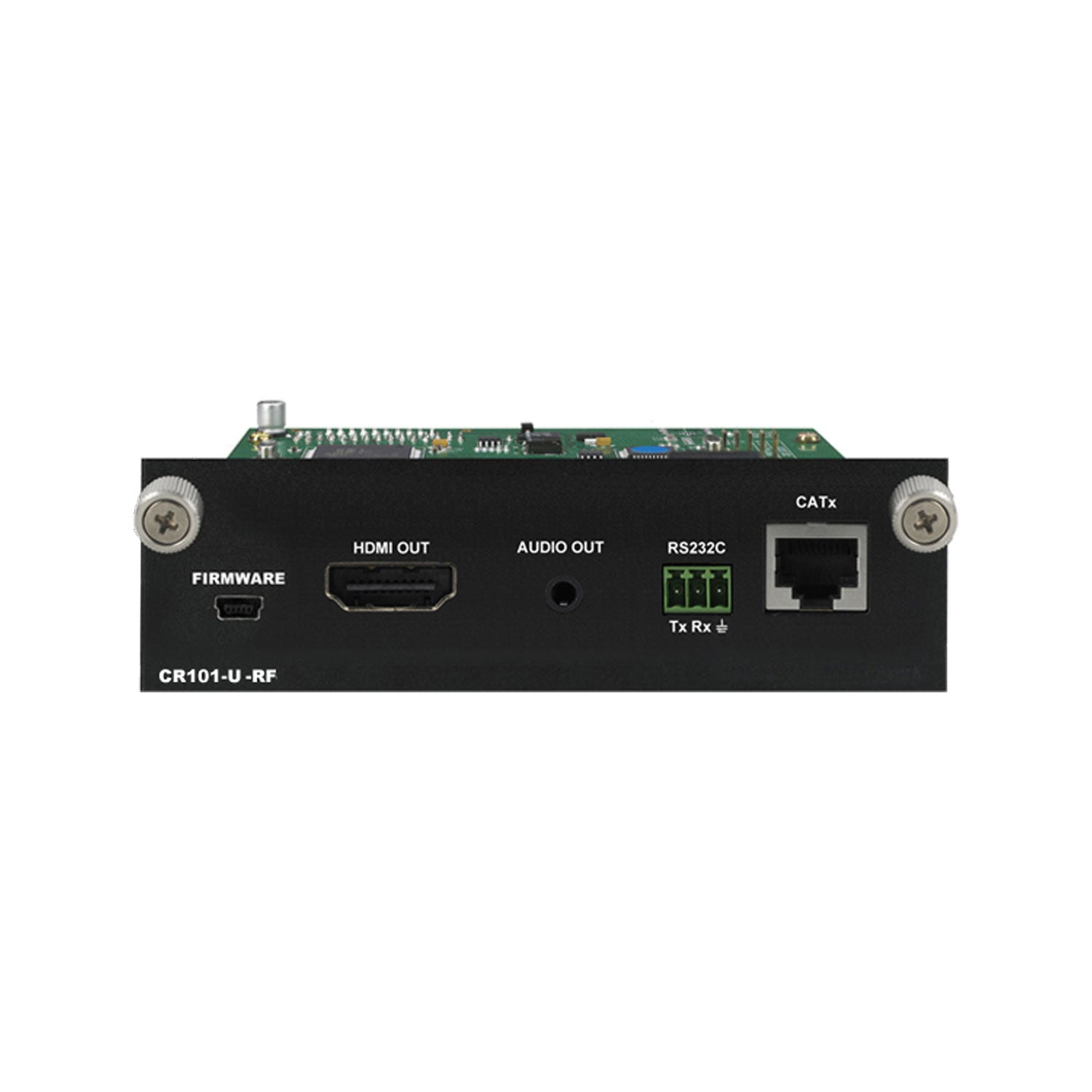

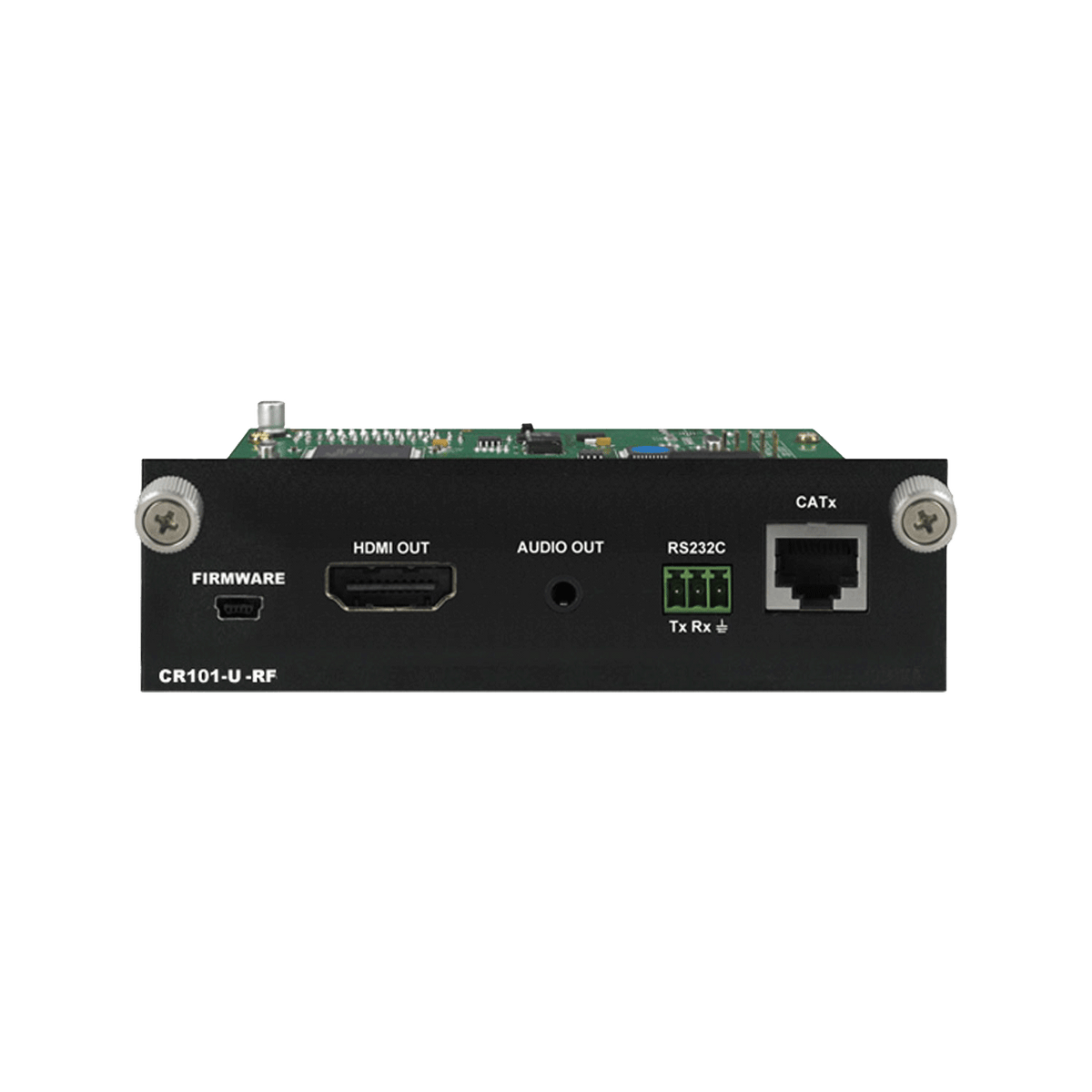

4K HDMI over HDBaseT Receiver with RS-232

PM-CR101-U-RF

Category	Title	Version	Updated	Download
Product Sheet	PureMedia — Product Sheet	1.0	08-19-2026	Download
User Manual	PureMedia Matrix Switchers — User Manual	2.1	08-19-2026	Download
Operation Manual	PureMedia — Operation Troubleshooting Guide	1.0	08-19-2026	Download
Software	PM-Tools — Driver	1.0	08-18-2026	Download
User Manual	PM-Tools — User Manual	1.0	08-19-2026	Download
Software	PM-Crestron — Driver	1.0	08-18-2026	Download
Product Catalog	PureMedia — Product Catalog	1.0	08-17-2026	Download
Product Catalog	TAA — Product Catalog	1.2	08-17-2026	Download

Hardware
Input Signal Type(s)	HDBaseT 0, 1, 2, 3 +/-
Output Signal Type(s)	DVI/HDMI (TMDS), 3.5mm stereo audio
Performance
Supported Distance	330 ft / 100 m at 1920 × 1200@60Hz, 1080p, or Ultra HD 4K
Supported Resolutions	Up to 4K@30Hz (4:4:4), 1080p@60Hz
Data Transfer Rate	3.4 Gbps per channel, 10.2 Gbps total max
Compliance	DVI 1.0, HDMI 1.4b, HDBaseT
HDCP Compliance	HDCP 2.0
Power Consumption	10W max
Power Supply	DC 12V
Connections
Connector Type(s)	1 × DVI 29-pin/HDMI 19-pin female, 1 × 3.5mm stereo jack, 1 × RJ45 jack, 1 × 3-pin 3.5mm terminal block for power, 1 × 3-pin 3.5mm terminal block for RS-232
Enclosure
Product Dimensions (W × D × H)	113mm × 73mm × 29mm
Product Weight	0.5 lbs / 0.27 kg
Warranty
Warranty	Limited Warranty, 3 Years

Specifications
