PureMedia Receivers

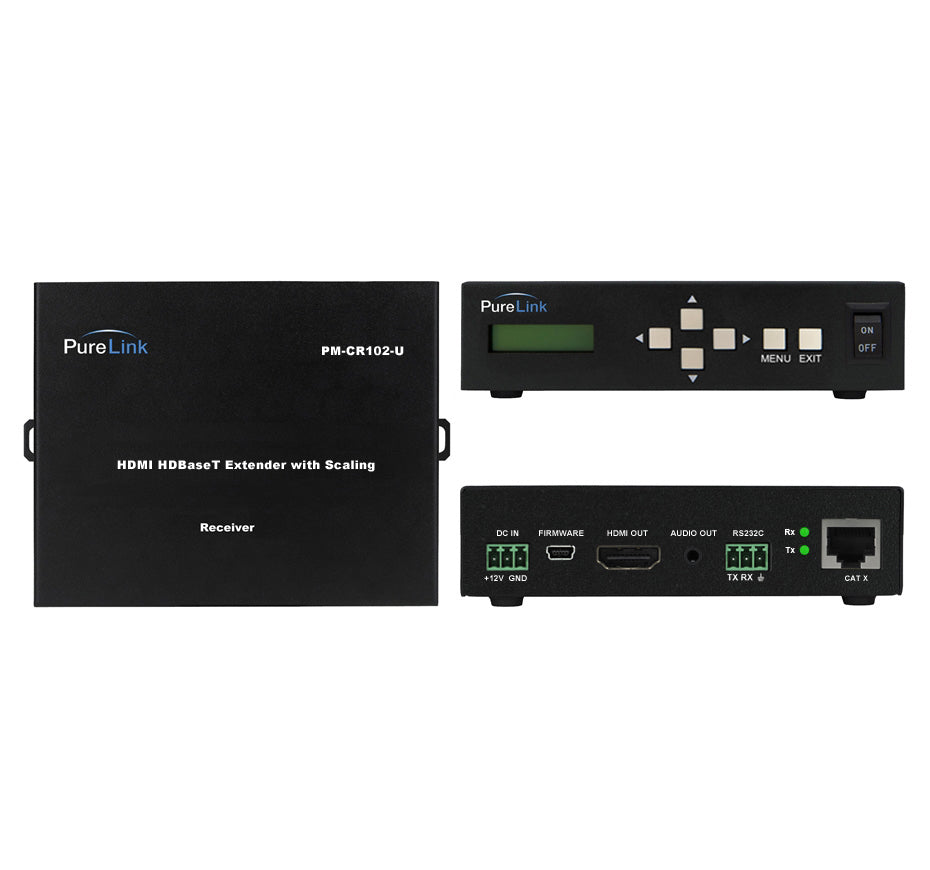

4K HDMI over HDBaseT Receiver with Scaling

PM-CR102-U

Category	Title	Version
User Manual	PureMedia Matrix Switchers — User Manual	2.1	Download
Operation Manual	PureMedia — Operation Troubleshooting Guide	1.0	Download
Software	PM-Tools — Driver	1.0	Download
User Manual	PM-Tools — User Manual	1.0	Download
Software	PM-Crestron — Driver	1.0	Download
Product Catalog	PureMedia — Product Catalog	1.0	Download
Product Catalog	TAA — Product Catalog	1.3	Download

Connections
Connector Type(s)	1 × DVI 29-pin/HDMI 19-pin female, 1 × 3.5mm stereo jack, 1 × RJ45 jack, 1 × 3-pin 3.5mm terminal block for power, 1 × 3-pin 3.5mm terminal block for RS-232
Performance
Distance	330 ft / 100 m
Resolutions	3840 × 2160@24/25/30Hz (RGB/YCbCr 4:4:4 8-bit, YCbCr 4:2:2 8/10/12-bit); 3840 × 2160@50/60Hz (YCbCr 4:2:0 8-bit)
HDCP Compliance	HDCP 2.0
Compliance	DVI 1.0, HDMI 1.4b, HDBaseT
Data Transfer Rate	3.4 Gbps per channel, 10.2 Gbps total max
Power Consumption	8.4W max
Power Supply	DC 12V
Operating Temperature	32° to 117°F / 0° to 47°C
Storage Temperature	-40° to 158°F / -40° to 70°C
Relative Humidity	0–90% non-condensing
MTBF	50,000 hours
Enclosure
Product Dimensions	7.75 × 5.96 × 1.7 in / 192.4 × 151.4 × 42 mm
Product Weight	1.59 lbs / 0.68 kg
Warranty
Warranty	Limited Warranty, 3 Years
