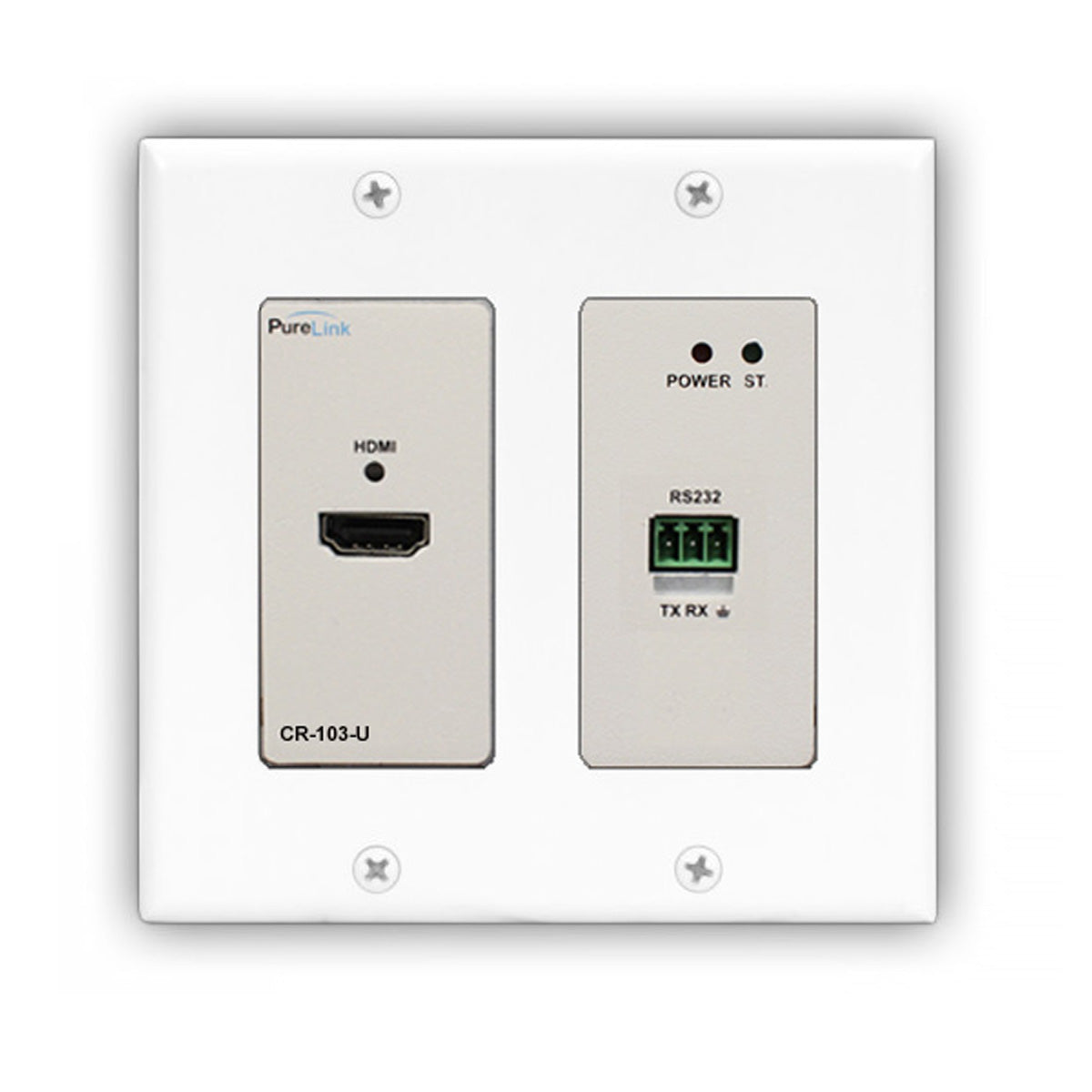

The PM-CR103-U provides a cost-effective and easy to install solution for schools, conference rooms, auditoriums, churches, and more. Enable the connection of HDBaseT source to HDMI display with RS-232.
PureLink is proud to announce the new single CAT5 (HDBaseT) wall plate extension system called PM-CT103-U and CR103-U, a part of new PM series extender, and are designed to be compatible with 2 gang size Decora wall plate. PM-CT103-U and CR103-U are a transmitter and receiver set for long distance transmission of video, audio, and control signal with POE. PM series CAT5e (HDBaseT) extension system is designed to transmit video (DVI, HDMI and VGA), audio (Embedded or analog stereo audio), control (RS232), and power over a single CAT5e cable for long distance up to 330ft. This CAT5e connection enables to minimize electrical noise and EMI free that is ideal for long distance extension of high definition HDMI/DVI video signal, HDMI embedded audio and control signal with POE.
Specifications
| Connections |
|
| Connector Type(s) |
1 × DVI 29-pin/HDMI 19-pin female, 1 × 3.5mm stereo jack, 1 × RJ45 jack, 1 × 3-pin 3.5mm terminal block for power, 1 × 3-pin 3.5mm terminal block for RS-232 |
Performance |
|
| Distance |
330 ft / 100 m at 1920 × 1200@60Hz, 1080p, or Ultra HD 4K |
| Resolutions |
Up to 4K@30Hz (4:4:4), 1080p@60Hz |
| HDCP Compliance |
HDCP 2.0 |
| Compliance |
DVI 1.0, HDMI 1.4b, HDBaseT |
| Data Transfer Rate |
3.4 Gbps per channel, 10.2 Gbps total max |
| Power Consumption |
10W max |
| Power Supply |
DC 12V |
| Operating Temperature |
32° to 117°F / 0° to 47°C |
| Storage Temperature |
-40° to 158°F / -40° to 70°C |
| Relative Humidity |
0–90% non-condensing |
| MTBF |
50,000 hours |
Enclosure |
|
| Product Dimensions |
2-gang Decora-style; 3.6 × 4.24 × 2.24 in / 91.44 × 107.95 × 57.15 mm |
| Product Weight |
0.5 lbs / 0.23 kg |
| Product Dimensions |
12.21 × 7.09 × 2.76 in / 310 × 180 × 70 mm |
| Product Weight |
7.7 lbs / 3.5 kg |
Warranty |
|
| Warranty |
Limited Warranty, 3 Years |
TAA
Discontinued
