PureMedia Transmitters

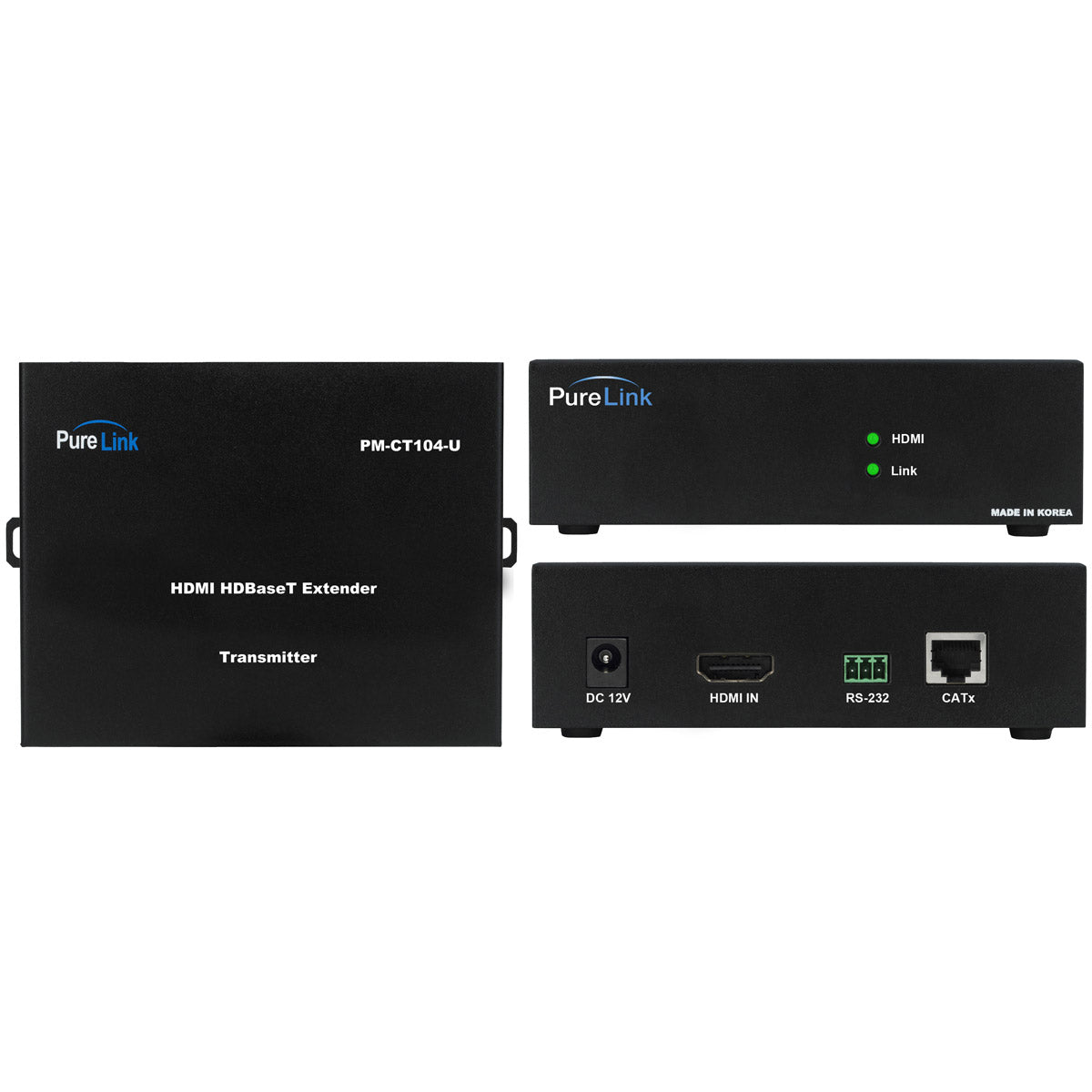

4K HDMI to CATx (HDBaseT) Transmitter

PM-CT104-U

Category	Title	Version	Updated	Download
Product Sheet	PureMedia — Product Sheet	1.0	08-19-2026	Download
User Manual	PureMedia Matrix Switchers — User Manual	2.1	08-19-2026	Download
Operation Manual	PureMedia — Operation Troubleshooting Guide	1.0	08-19-2026	Download
Software	PM-Tools — Driver	1.0	08-18-2026	Download
User Manual	PM-Tools — User Manual	1.0	08-19-2026	Download
Software	PM-Crestron — Driver	1.0	08-18-2026	Download
Product Catalog	PureMedia — Product Catalog	1.0	08-17-2026	Download
Product Catalog	TAA — Product Catalog	1.2	08-17-2026	Download

Connections
Connector Type(s)	1 × DVI 29-pin/HDMI 19-pin female, 1 × 3.5mm stereo jack, 1 × RJ45 jack, 1 × 3-pin 3.5mm terminal block for power, 1 × 3-pin 3.5mm terminal block for RS-232
Performance
Distance	330 ft / 100 m
Resolutions	Up to Ultra HD 4K; 3840 × 2160@24/25/30Hz (RGB/YCbCr 4:4:4 8-bit, YCbCr 4:2:2 8/10/12-bit); 3840 × 2160@50/60Hz (YCbCr 4:2:0 8-bit)
HDCP Compliance	HDCP 2.0
Compliance	DVI 1.0, HDMI 1.4b, HDBaseT
Data Transfer Rate	3.4 Gbps per channel, 10.2 Gbps total max
Power Consumption	DC 12V
Power Supply	2.4W max
Operating Temperature	32° to 117°F / 0° to 47°C
Storage Temperature	-40° to 158°F / -40° to 70°C
Relative Humidity	0–90% non-condensing
MTBF	50,000 hours
Enclosure
Product Dimensions	3.94 × 2.4 × 0.6 in / 100 × 60 × 14 mm
Product Weight	0.6 lbs / 0.27 kg
Warranty
Warranty	Limited Warranty, 3 Years
