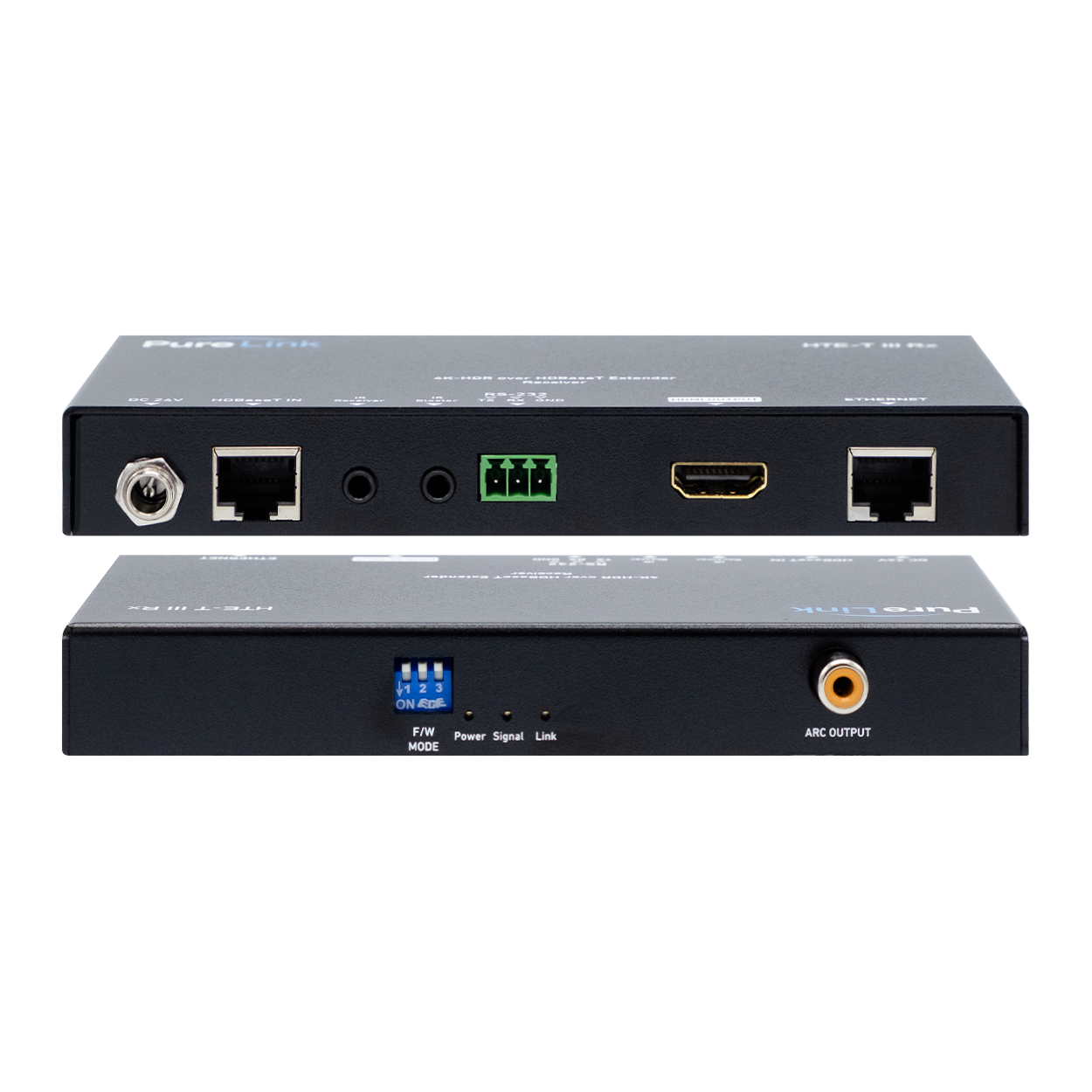

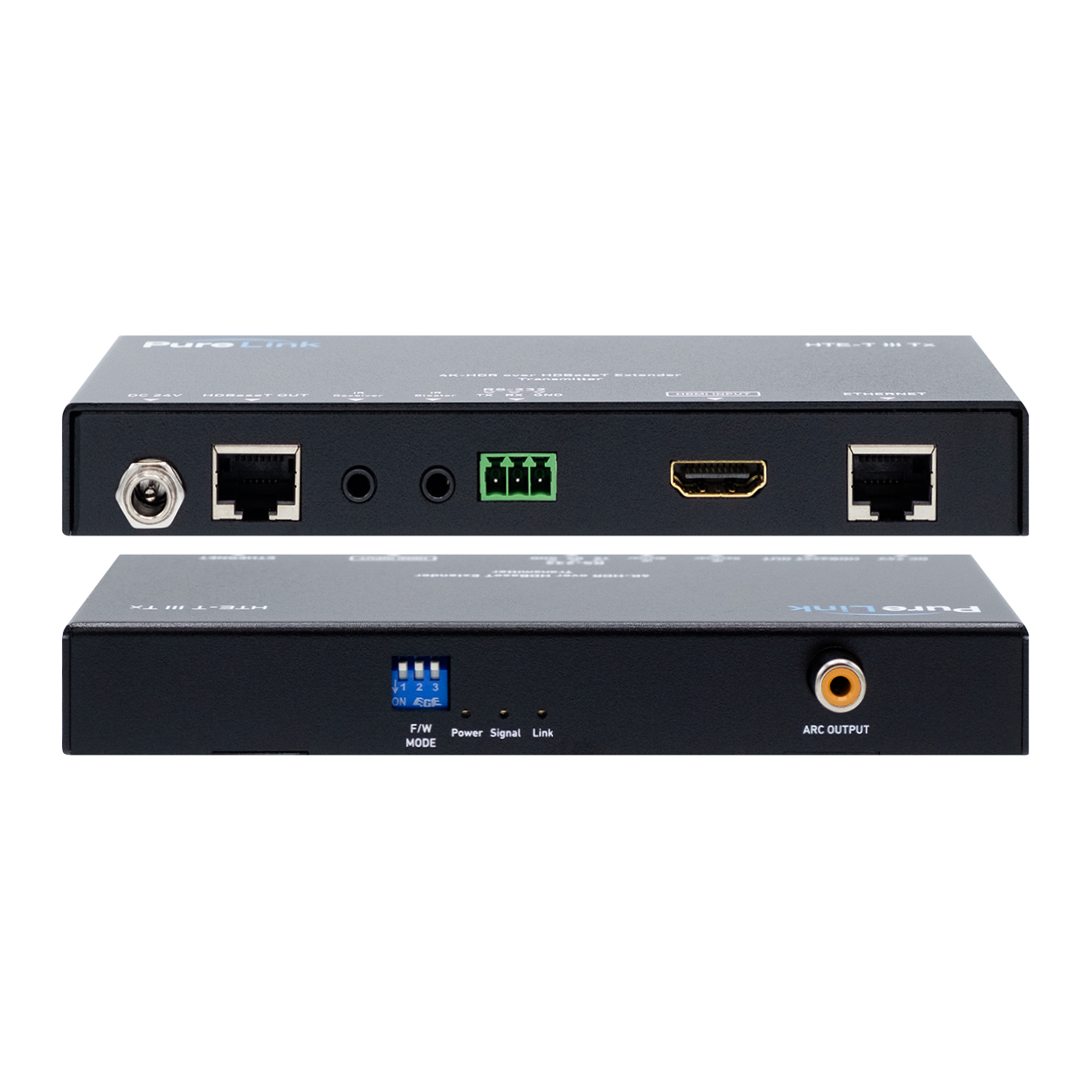

The HTE-T III extends 4K60 4:4:4 HDR HDMI signals over a single CATx cable while delivering uncompressed 7.1ch digital audio, DTS-HD Master Audio, and Dolby TrueHD. It transmits Full HD 1080p up to 330 ft (100m) and 4K-HDR up to 230 ft (70m), maintaining HDCP 2.2 compliance and deep color video. PoC powers either unit from the transmitter or receiver, and ARC, bi-directional IR, RS-232, and Ethernet provide full system control and integration. The HTE-T III ensures professional AV performance with ultra-low latency for live events, conference rooms, and commercial installations.

Key Features

• Extends Full HD 1080p up to 330 ft (100m) and 4K60 4:4:4 HDR up to 230 ft (70m)
• HDMI 2.0a with HDCP 2.2 compliance
• Uncompressed 7.1ch digital audio
• DTS-HD Master Audio and Dolby TrueHD high-bit-rate audio
• PoC (Power over Cable) for either TX or RX unit
• ARC on transmitter and receiver
• CEC pass-through with auto-equalization
• Bi-directional IR path-through (20–60 kHz)
• Full-duplex RS-232 control up to 115,200 bps
• Integrated LAN/network port
• Wall-mountable housing for easy installation
• Ultra-low latency (<20 ms)
• TAA-compliant

Specifications
