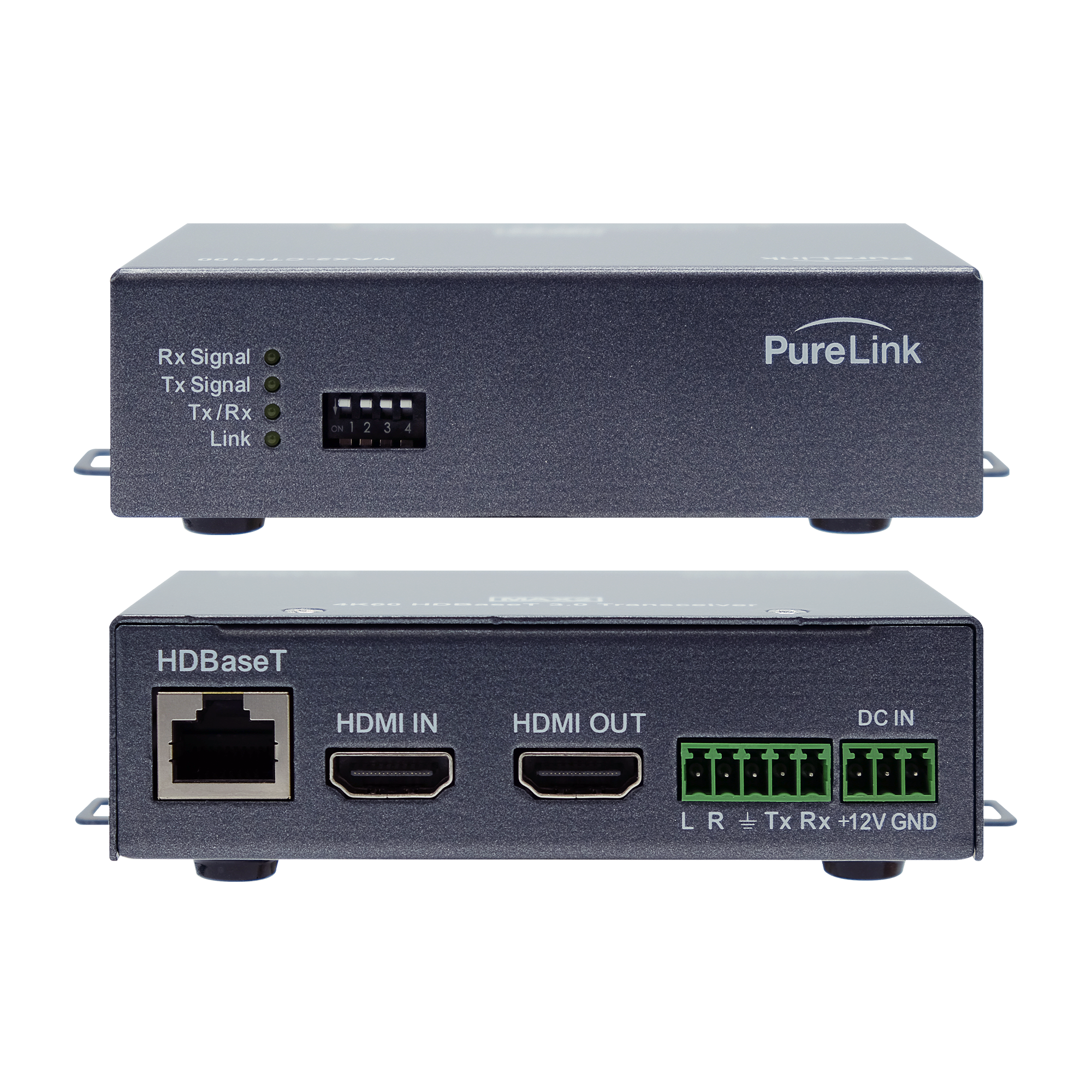

PureLink's Media Axis™ 2 Matrix System enables the extension of uncompressed 4K60 4:4:4 Ultra High-Definition video utilizing HDBaseT 3.0 technology. This allows for reaching impressive distances of up to 330ft (100m) via Cat6a or higher cables. The MAX2-CTR100 is a versatile transceiver that intuitively adapts as a transmitter or receiver based on its connection to either a frame input or output card.

Key Features

• Transmits or receives uncompressed 4K60 4:4:4 video, audio, and control signals up to 330 ft (via Cat6a) depending on connect to a Media Axis™ 2 input or output card
• HDMI 2.0 | HDCP 2.2 | HDBaseT 3.0
• Connects directly to the Media Axis™ 2 HDBaseT input board (MAX2-CIS100) or Output board (MAX2-COS100)
• Transmits bi-directional RS-232 via 3pin Phoenix connector
• Separate Audio connection to split out audio to external components
• TAA & NDAA Compliant: Complies with Trade Agreements Act and National Defense Authorization Act Regulations

Specifications
