MAX2 Receivers

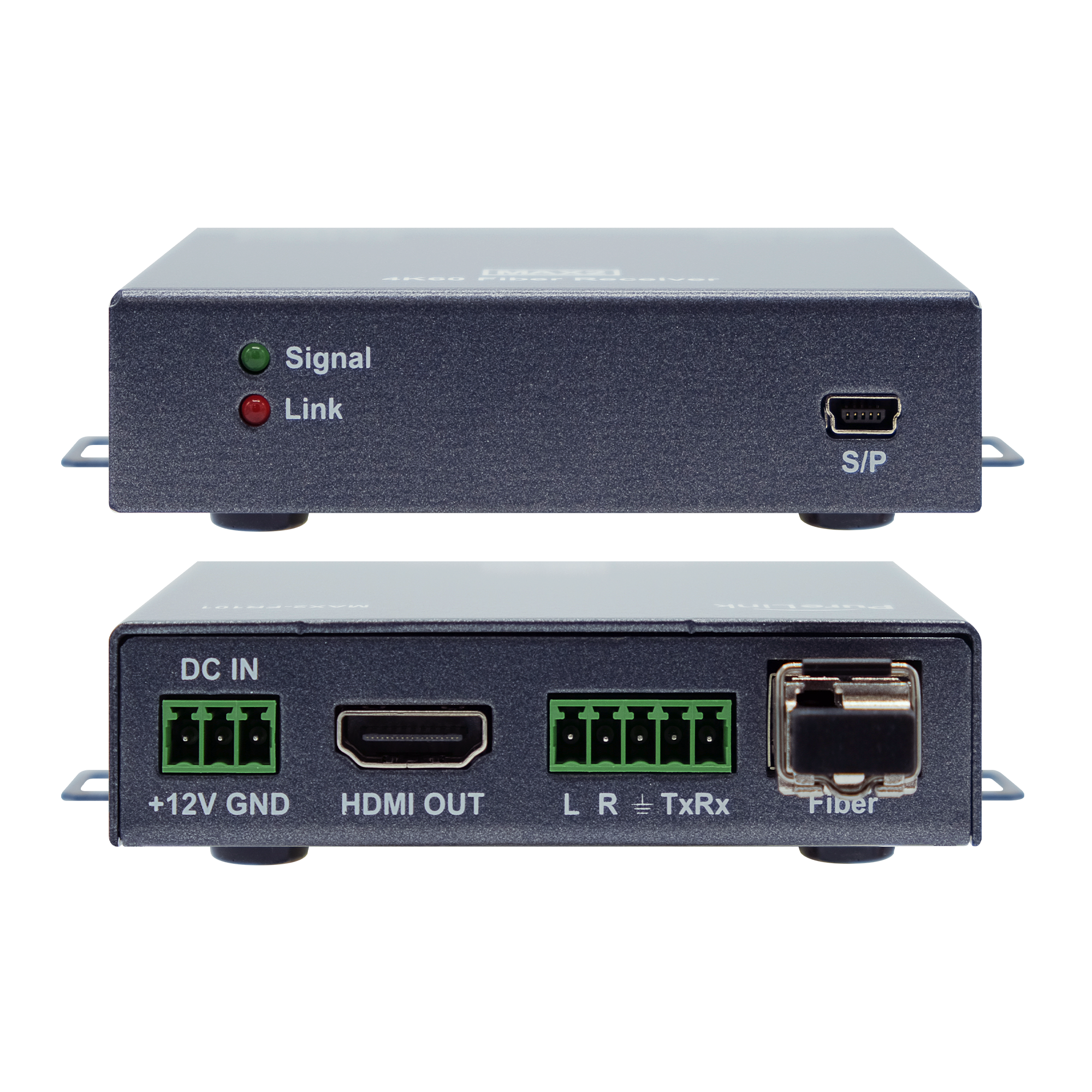

4K60 Fiber to HDMI™ Receiver for Media Axis™ 2

MAX2-FR100

Category	Title	Version	Updated	Download
Product Sheet	MAX2-FR100 — Product Sheet	3.0	08-19-2026	Download
Others	Media Axis vs. Media Axis 2 (MAX2) — Comparison Chart	1.0	08-19-2026	Download
User Manual	MAX2 — User Manual	2.1	08-19-2026	Download
Application Diagram	MAX2 — Multiview Application Diagram	5.5	08-19-2026	Download
Application Diagram	MAX2 — Dante Application Diagram	2.0	08-19-2026	Download
Product Catalog	MAX2 — Product Catalog	1.0	08-17-2026	Download
Product Catalog	TAA — Product Catalog	1.2	08-17-2026	Download

Connections
Inputs	1LC fiber with adaptive single-mode and multimode processing
Outputs	1 × HDMI
Connector Type(s)	1 × 1LC fiber output port, 1 × Female HDMI port, 1 × 5-pin Phoenix connector for audio extraction, 1 × 5-pin Phoenix connector for RS-232
Audio Output Type(s)	1 × 3-pin Mini-Phoenix connector
Performance
Distance	Single-mode: 1.24 miles / 2 km; multimode: 984 ft / 300 m
Resolutions	Up to Ultra HD/4K (4096 × 2160, 4:4:4@50/60Hz)
Supported Digital Audio Formats	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-ES, DTS 96/24, DTS-HD High Resolution, DTS-HD Master Audio, LPCM up to 8 channels
Compliance	HDCP 2.2
Data Transfer Rate	18 Gbps
Power Consumption	DC 12V, 10W max
Power Supply	100–240VAC, 50/60Hz
Operating Temperature	32° to 117°F / 0° to 47°C
Storage Temperature	-40° to 158°F / -40° to 70°C
Relative Humidity	0–90% non-condensing
Enclosure
Product Dimensions	6 × 5.4 × 1.25 in / 152 × 137 × 31 mm
Product Weight	2 lbs / 0.91 kg
Shipping Dimensions	15 × 15 × 4 in / 381 × 381 × 101 mm
Shipping Weight	3 lbs / 1.36 kg
Warranty
Warranty	3 Years, Parts and Labor
