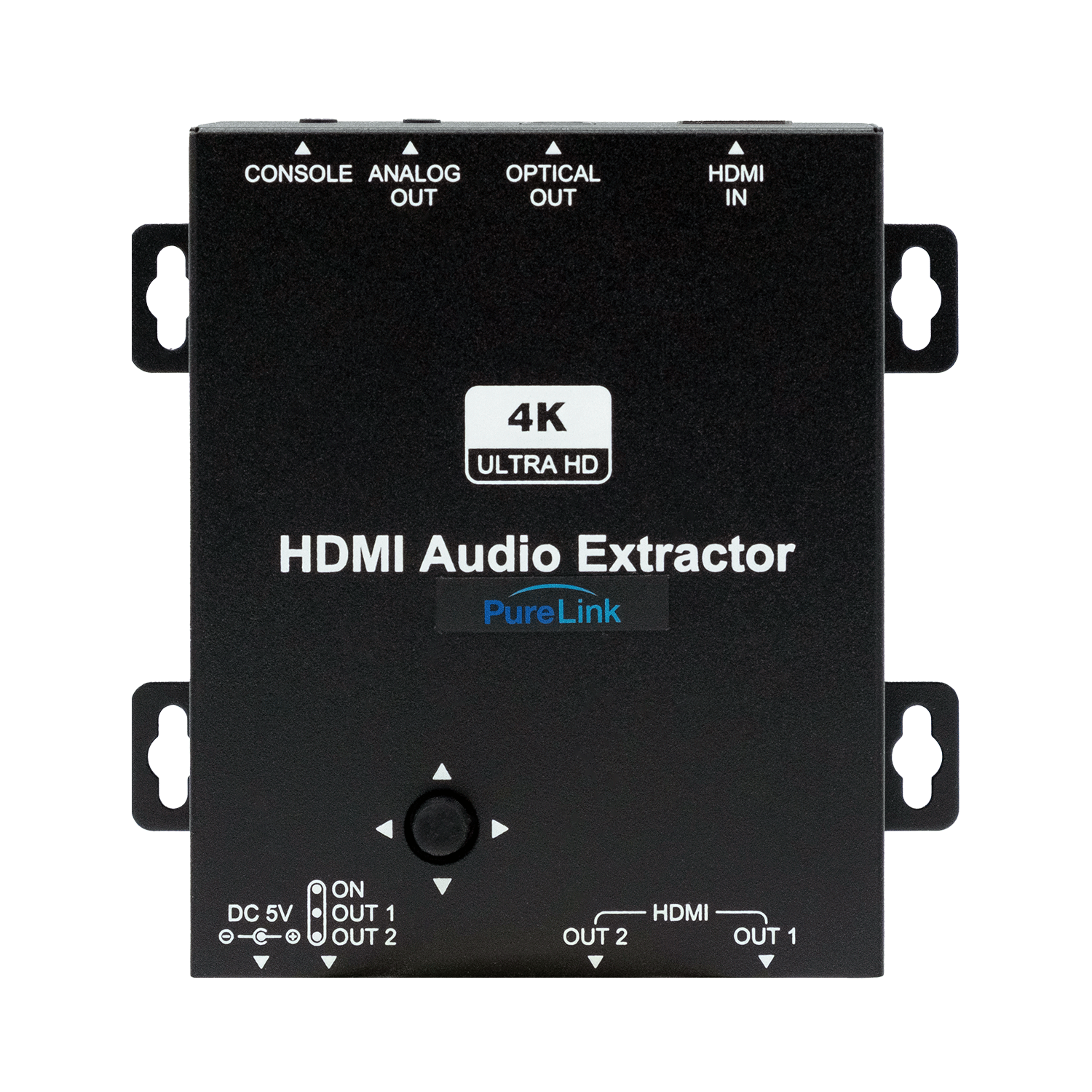

The HEXA 2.0 provides 1×2 HDMI distribution with scaling and audio extraction, perfect for mixed-resolution AV environments. Processing resolutions up to 4K60 4:4:4 with 18 Gbps bandwidth, HDR, and multi-channel audio formats, the HEXA 2.0 provides flexible signal management for modern AV systems.

In addition to HDMI signal distribution, the HEXA 2.0 extracts HDMI audio simultaneously to digital S/PDIF and analog stereo outputs while maintaining video integrity. Built-in scaling upscales 1080p to 4K or downscales 4K to 1080p, ideal for integrating legacy displays with new 4K sources. An intuitive on-screen display, controlled via a 5-way joystick, enables simple setup, EDID management, and system configuration.

Key Features

• HDMI 1×2 distribution amplifier with simultaneous audio extraction
• Processes HDMI signals up to 4K60 4:4:4 (18 Gbps bandwidth)
• Compatible with HDR and 3D video
• Extracts HDMI audio to S/PDIF digital and 3.5mm analog stereo outputs simultaneously
• Compatible with LPCM 7.1 (up to 192 kHz), Dolby TrueHD, and DTS-HD Master Audio
• 1080p to 4K upscaling and 4K to 1080p downscaling
• Built-in EDID management with 2.0, 5.1, and 7.1 patched EDID options
• On-screen display (OSD) with integrated 5-way joystick for configuration and system monitoring
• HDMI CEC pass-through

Specifications
