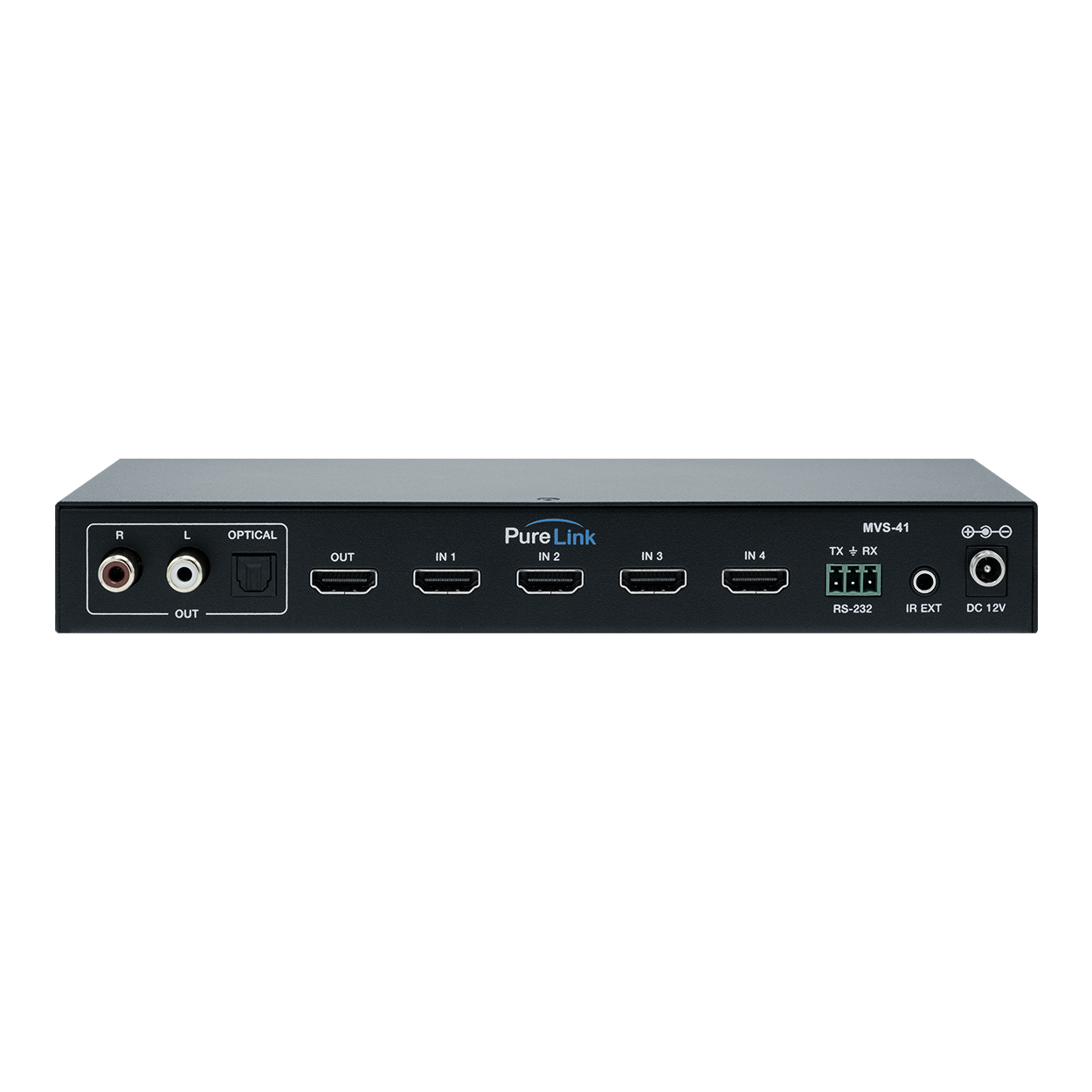

The MVS-41 provides Don't Blink Seamless switching via the industry renowned Motore scaling engine. Fourteen different output resolutions can be easily set from either the front panel controls, or the RS232 API.  The MVS-41 also features de-embedding of balanced stereo analog audio and SPDIF, seventeen (17) preloaded EDID tables with display EDID acquisition, and a number of Multiview layouts, including quad view for displaying all inputs simultaneously. The MVS-41 is HDCP 1.n and 2.2 compliant, and includes an infrared remote control with IR extender The MVS-41 is perfect for:

• Conference Rooms
• Hospitality and Convention Halls
• Corporate
• Entertainment
• Retail
• Home Theater
• and much more...

Couple the MVS-41 with our iCON-10W 10 button controller for easy implementation of switching, layouts, and control of other devices in your application. The MVS-41 can easily be controlled by other third party control devices from Crestron and QSC and more.

Key Features

• HDMI 2.0b 4K60, 4K2K60 4:4:4 (18Gbps), HDCP 2.2, HDCP 1.n
• (4) HDMI inputs, (1) HDMI output
• Instant/seamless switching with Motore 4K up/down scaling engine
• Single image, Side by Side (2 modes), and PIP with adjust size/position
• Fourteen (14) scaling engine resolution settings: up/down scaling
• Seventeen (17) built in EDID tables plus display EDID acquisition
• Audio De-embedding, Stereo Analog, and SPIDF
• Control via on-panel Buttons, IR remote control, and RS-232 API
• Third Party control ready such as Crestron, QSC and more
• EDID Management:
  • 17 selectable EDID
  • 1 display EDID
