The VIP-400 4K HDMI & USB/KM CAT and Fiber AV over IP Encoder provides UltraHD/4K60 4:4:4 HDR video, audio, RS-232, IR, and USB 1.1, 2.0, and USB camera signal transport over IP networks. The VIP-400 can be used as a point-to-point extension system supporting distances up to 120 meters over CAT6a, and up to 2 kilometers over SFP Single Mode Fiber. The VIP-400 is designed to handle multiple signals types for applications that require reliable distribution, switching, matrixing, and layered matrix switching. Multiple control options are available including the VIP-400's own rich API, PureLink’s VPX IP Video Management Software, and QSC plugin.  Providing complete and reliable AV over IP extension, the VIP-400 is the ideal solution for your application.

Key Features

• 4K60 4:4:4 HDR
• Ultra-low latency (<17mS)
• Data rate 300 Mbps typical; 50-850 Mbps range, variable
• Fiber or CAT transport – 1G port
• Extend signals up to 120 meters over CAT6, 300 meters using a network switch, and up to 2km with SFP fiber single mode
• HDCP 2.2 compliant
• USB 1.1 and 2.0 including USB camera support
• Comprehensive diagnostics via API - device discovery, signal data, and EDID
• Supports instant switching (same resolutions)
• Multiple control interfaces - built-in web interface, front panel buttons,  VPX Management Software, QSC modules, and 3rd party control development via API
• Built-in video wall processing (up to 8x8)
• Built-in scaler on the receiver (decoder)
• Image rotation; 90, 180 degrees
• IR and RS232 extension
• TCP/IP to RS232
• HDMI loop-out on TX (encoder)
• Powered by included AC power adapter, or via PoE 802.3af (8.5W)
• Supports Dolby, DTS, and LPCM audio and more
• Matrix switching systems up to 999 sources and 65K displays

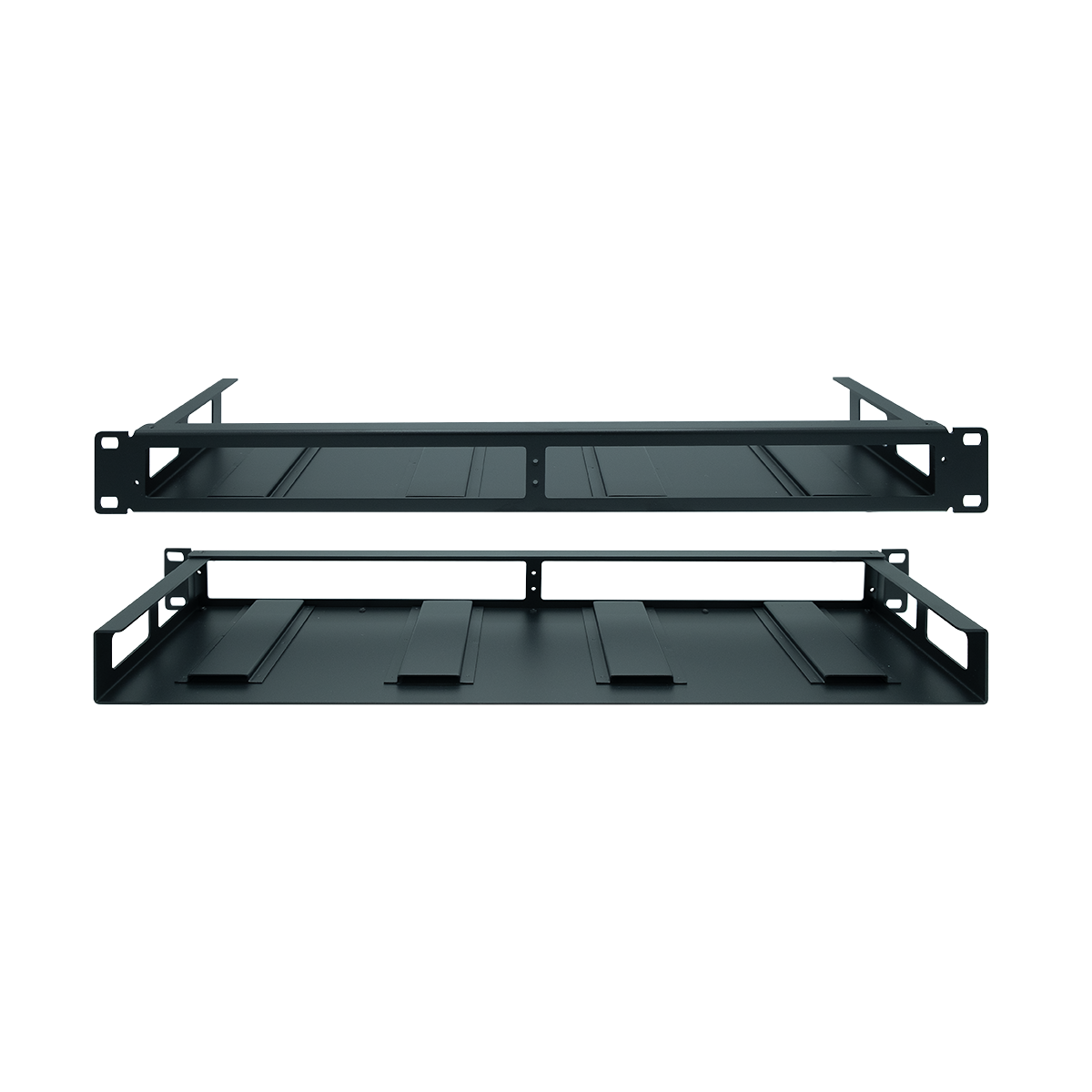

• Rack-mount options available

Specifications
