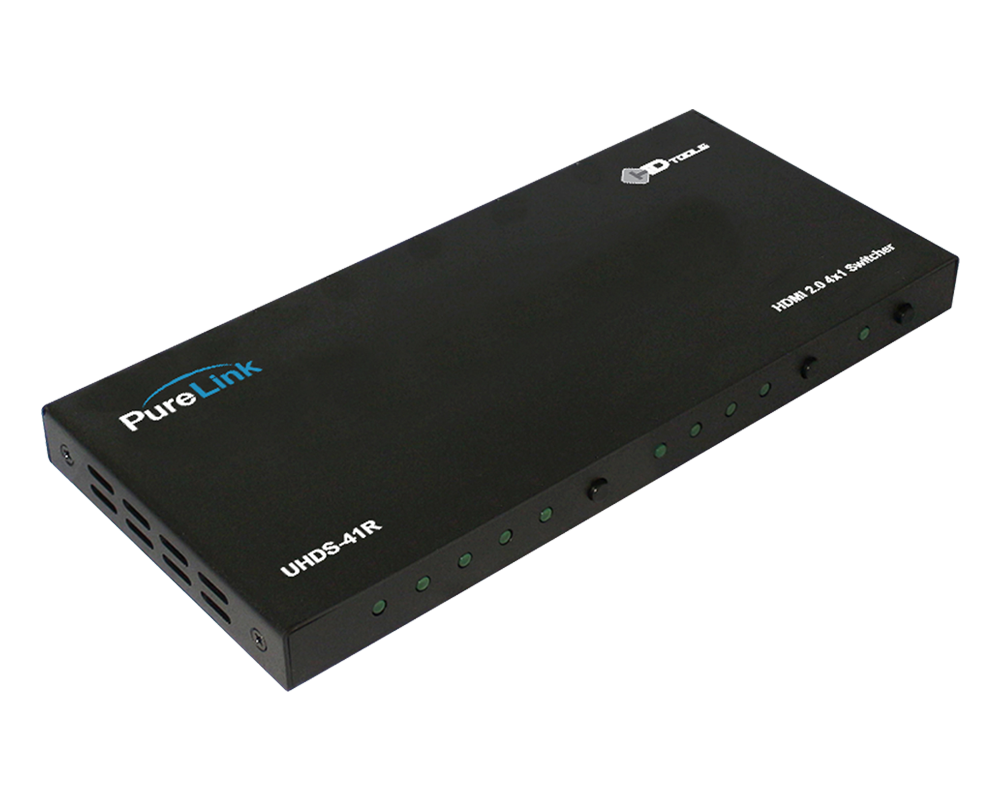

The UHDS-41R provides switching of up to four (4) Ultra HD/4K sources to a single Ultra HD/4K display. The UHDS-41R combines the latest technologies, including HDMI 2.0 and HDCP 2.2 support, with user-friendly configuration and operation via RS-232, IR, or front panel control to deliver a simple and effective multi-input AV switching solution.
Key Features
- 4×1 Ultra HD (4K50/60) digital AV switcher
- HDMI 2.0 and HDCP 2.2 compliance
- Automatic input switching by signal detection
- ARC - allows ARC-enabled TVs to transmit audio back to an AV receiver
- Easy operation via manual toggle buttons, IR remote, and RS-232C
- Full 3D compatibility
- Auto-EDID management
- Supports Dolby TrueHD, Dolby Digital Plus and DTS-HD Master audio, LPCM
- DVI and DisplayPort compatible (with adapters)
Specifications
| Standards & Compliance |
|
| Signal Standards |
HDMI 2.0, DVI 1.0
|
Matrix Connector Types
|
|
| HDMI Inputs |
4 × HDMI IN (Type A, 19-pin female) |
| HDMI Outputs |
1 × HDMI OUT (Type A, 19-pin female) |
| IR In |
1 × 3.5mm TRS |
| RS-232 |
1 × 3.5mm TRS |
| Audio Outputs |
1 × 3.5mm TRS |
Performance
|
|
| Max Video Resolution |
4K60 (4:4:4) |
| Video Bandwidth |
18 Gbps |
| Color Space |
RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
|
| HDR |
HDR 10 , HDR 10+, HLG
|
| HDCP |
HDCP 2.2 |
| RS-232 Support |
Yes |
| ESD Protection |
Human body model — ±8kV [air-gap discharge] & ±4kV [contact discharge] |
| HDMI Audio Formats |
Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, LPCM
|
Power Switcher
|
|
| Power Input |
DC 5V/1A |
| Power Supply |
AC 100 - 240V 50/60Hz |
| Power Consumption |
2.5W (max) |
Environment
|
|
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Storage Temperature |
-4 to 140°F / -20 to 60°C |
| Relative Humidity |
5 to 95% |
Enclosure
|
|
| Product Dimensions (W × D × H) |
7.09 in × 3.30 in × 0.50 in (180mm × 85mm × 11.6mm) |
| Weight |
0.66 lbs (300g) |
Warranty
|
|
| Parts |
3 year |
| Labor |
3 year |
