| Standards & Compliance |
|
| Signal Standards |
HDMI 2.0b, DP 1.2
|

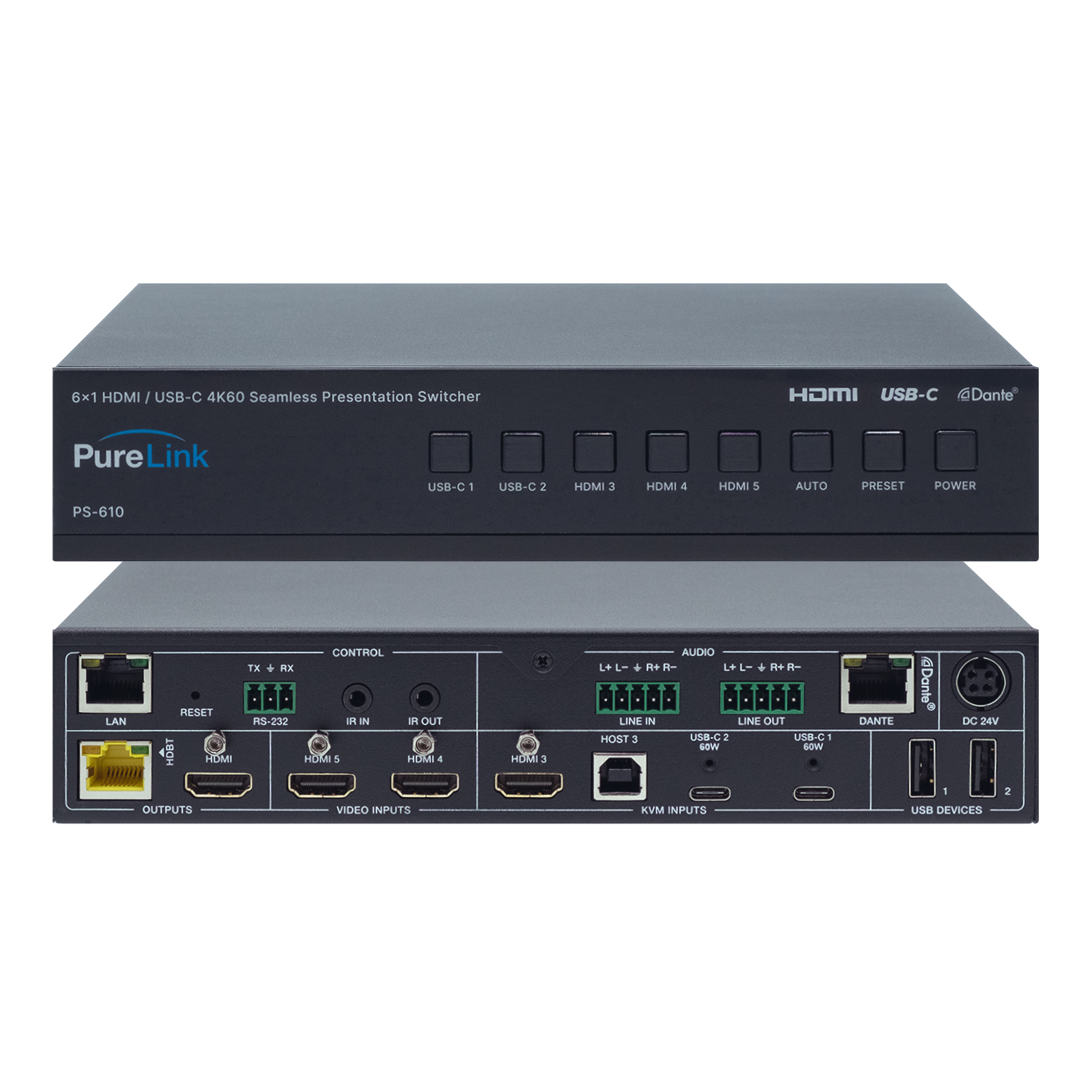

Matrix Connector Types
|
|
| HDMI Inputs |
3 × HDMI IN (Type A, 19-pin female) |
| HDMI Outputs |
1 × HDMI OUT (Type A, 19-pin female) |
| USB-C Inputs |
2 × USB-C IN (24-pin female) |
| HDBaseT Out |
1 × LAN (RJ45) |
| USB Host |
1 × USB-B |
| USB Devices |
2 × USB-A |

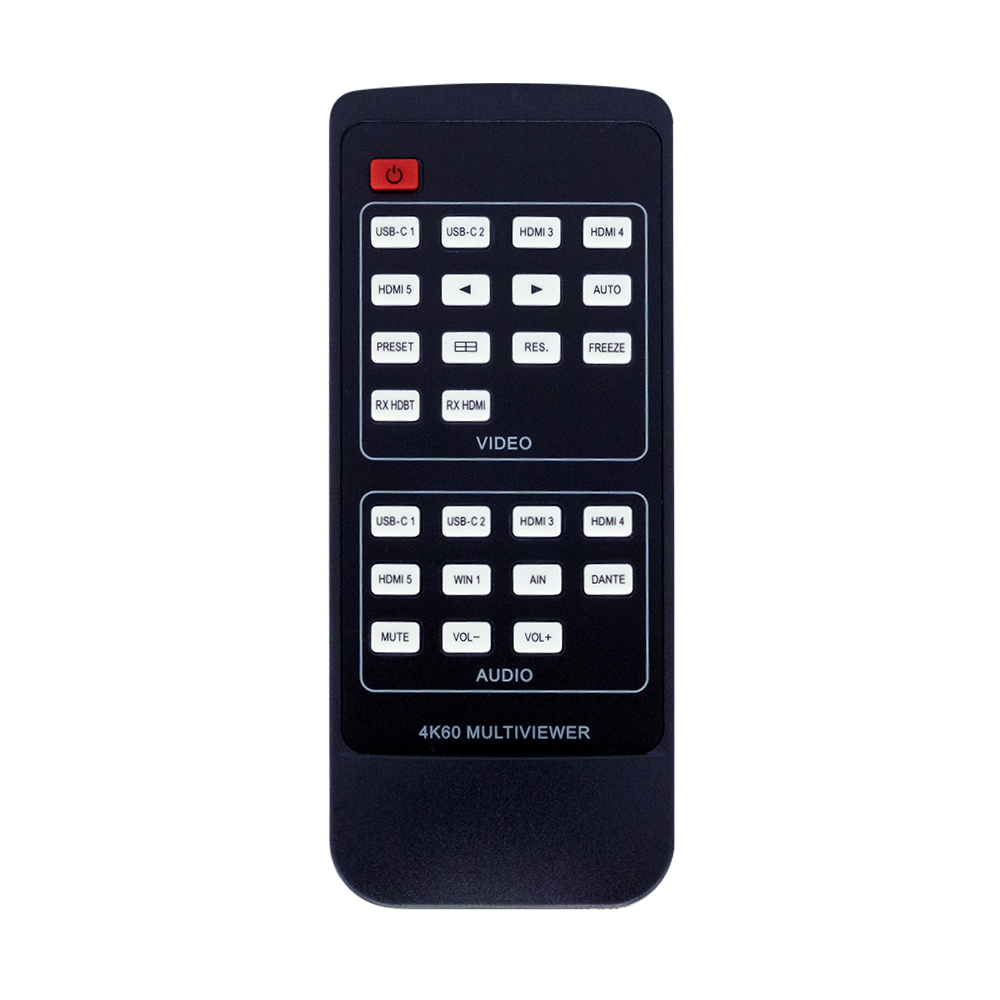

| IR In |
1 × 3.5mm TRS |
| IR Out |
1 × 3.5mm TRS |
| TCP/IP |
1 × LAN (RJ45) |
| RS-232 |
1 × 3-pin 3.5mm Phoenix |
| Audio Inputs |
1 × 5-pin Phoenix |
| Audio Outputs |
1 × 5-pin Phoenix |
| Dante |
1 × LAN (RJ45) |

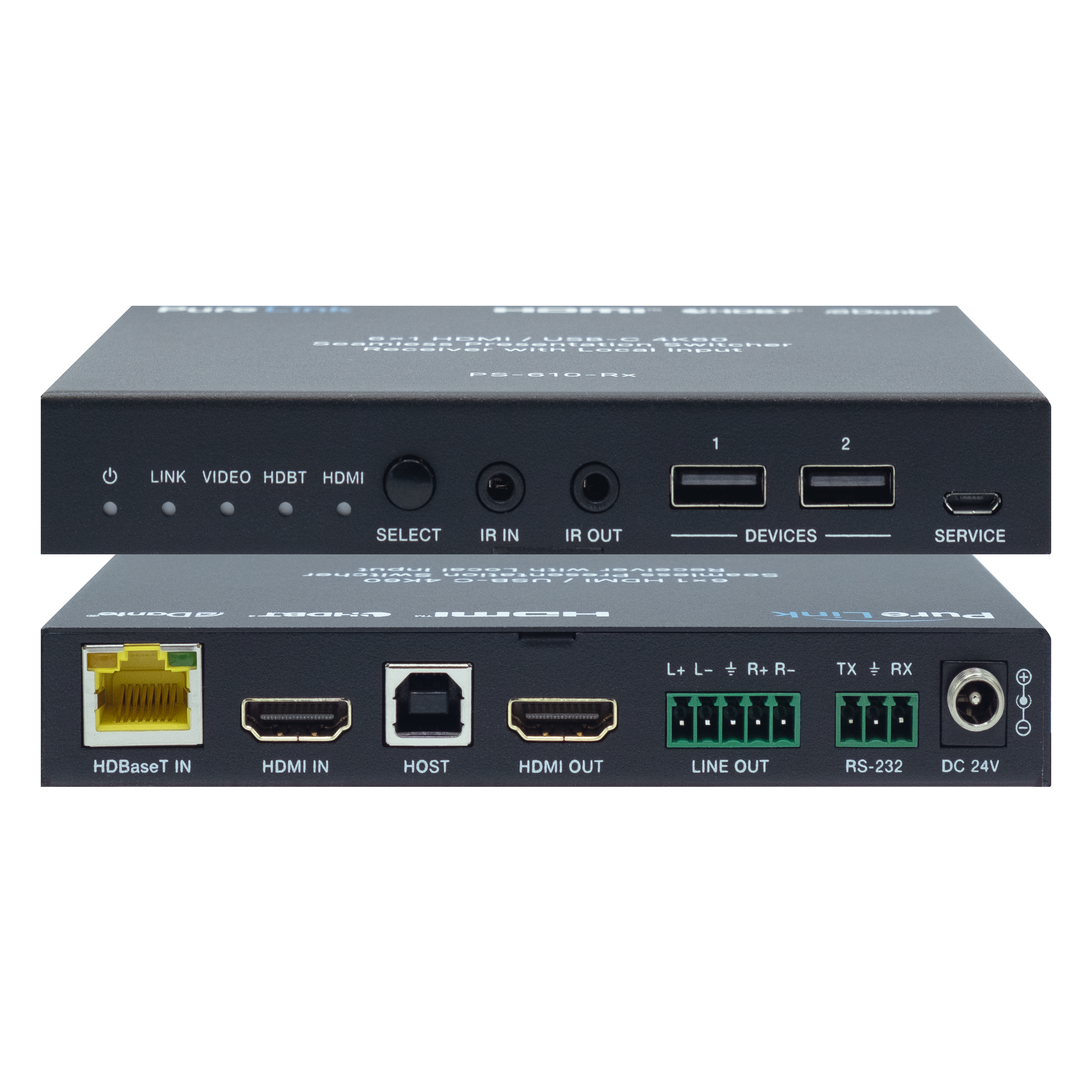

HDBaseT Receiver Connector Types
|
|
| HDMI Inputs - RX |
1 × HDMI IN (Type A, 19-pin female) |
| HDMI Outputs - RX |
1 × HDMI OUT (Type A, 19-pin female) |
| HDBaseT In - RX |
1 × LAN (RJ45) |
| USB Host - RX |
1 × USB-B |
| USB Devices - RX |
2 × USB-A |
| IR In - RX |
1 × 3.5mm TRS |
| IR Out - RX |
1 × 3.5mm TRS |
| Service - RX |
1 × Micro USB |
| RS-232 - RX |
1 × 3-pin 3.5mm Phoenix |
| Audio Outputs - RX |
1 × 5-pin Phoenix |
Performance
|
|
| CATx Transmission Distance |
4K2K@60: 40m, 4K2K@30: 70m, 1080P@60: 70m
|
| Transport |
HDBaseT 3.0 |
| Max Video Resolution |
4K60 (4:4:4) |
| Video Bandwidth |
18 Gbps |
| Network Bandwidth |
100 Mbps |
| USB Bandwidth |
TX USB DEVICES to TX HOST/USB-C: 480 Mbps, RX USB DEVICES to TX HOST/USB-C: 350 Mbps, RX USB DEVICES to RX HOST: 480 Mbps
|
| Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
|
| Color Depth |
Input: 8-bit, 10-bit, and 12-bit, 8-bit (4K60 4:4:4), Output: 8-bit
|
| HDR |
Input supports HDR, Output does not support HDR
|
| HDCP |
HDCP 2.2 |
| USB-C Charging Port |
60W (max) |
| RS-232 Support |
Yes |
| ESD Protection |
Human body model — ±8kV [air-gap discharge] & ±4kV [contact discharge] |
| IR |
Bi-directional |
| IR Level |
12Vp-p |
| IR Frequency |
20K-60KHz |
| Audio Sample Rate |
48KHz |
| HDMI Audio Formats |
LPCM 2.0 |
| Analog Audio TX - Input Impedance |
10K Ohms |
| Analog Audio TX - Output Impedance |
330 Ohms |
| Analog Audio TX - Line Input Level (Maximum) |
8.2dBu (2Vrms) balanced or unbalanced audio |
| Analog Audio TX - Line Output Level (Maximum) |
8.2dBu (2Vrms) balanced audio , 2.2dBu (1Vrms) unbalanced audio
|
| Analog Audio TX - Frequency Response |
(+0.5 dB, -1 dB) 20 Hz to 20 kHz |
| Analog Audio TX - Output Sync Delay |
0 to 50ms |
| Analog Audio TX - S/N Ratio |
93dB at 2Vrms, 1kHz A-weighted |
| Analog Audio TX - THD+N Ratio |
<0.1% at 0dBV, 1kHz |
| Analog Audio RX - Output Impedance |
330 Ohms |
| Analog Audio RX - Line Output Level (Maximum) |
8.2dBu (2Vrms) balanced audio , 2.2dBu (1Vrms) unbalanced audio
|
| Analog Audio RX - Frequency Response |
(+0.5 dB, -1 dB) 20 Hz to 20 kHz |
| Analog Audio RX - Audio Output Sync Delay |
0 to 50ms |
| Analog Audio RX - Audio S/N Ratio |
93dB at 2Vrms, 1kHz A-weighted |
| Analog Audio RX - Audio THD+N Ratio |
<0.1% at 0dBV, 1kHz |
| Dante Audio Formats |
LPCM 2.0 |
| Dante Audio Sample Rate |
44.1, 48, 88.2 and 96KHz at 24 bits |
| Dante Audio Delay |
2ms, 3ms, 4ms, 5ms, 10ms |
| Dante Network Bandwidth |
100 Mbps |
Power Switcher |
|
| Power Input |
DC 24V/8A |
| Power Supply |
AC 100 - 240V 50/60Hz |
| Power Consumption |
150W (max) |
Power Receiver
|
|
| Power Supply - RX |
AC 100 - 240V 50/60Hz |
Environment
|
|
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Storage Temperature |
-4 to 140°F / -20 to 60°C |
| Relative Humidity |
20 to 90% |
Enclosure
|
|
| Product Dimensions (W × D × H) |
Matrix: 8.66 in × 5.91 in × 1.73 in (220mm × 150mm × 44mm) , RX: 5.51 in × 4.13 in × 0.85 in (140mm × 105mm × 21.5mm)
|
| Weight |
Matrix: 2.67 lbs (1.21kg), RX: 0.93 lbs (424g)
|
Warranty
|
|
| Parts |
3 year |
| Labor |
3 year |
