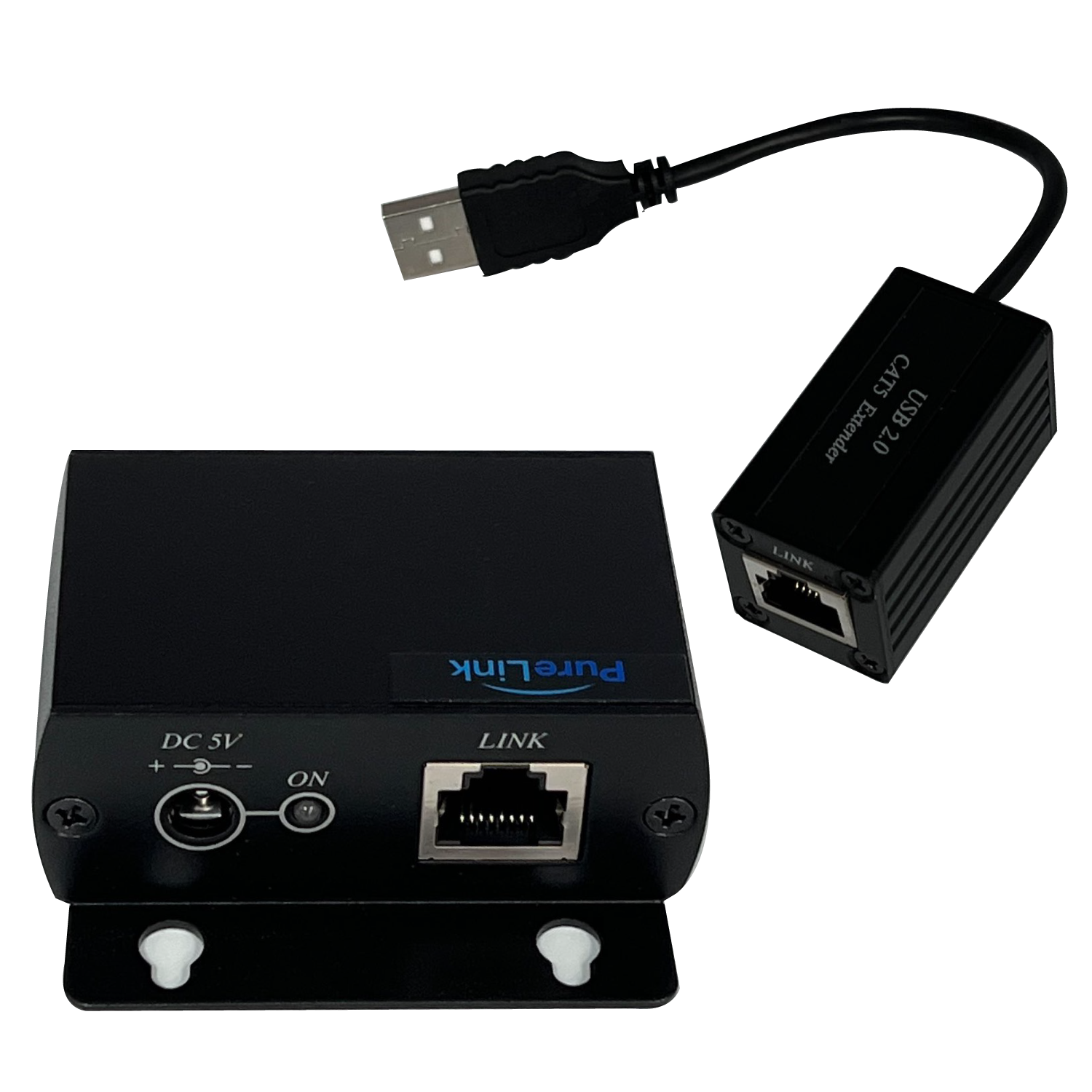

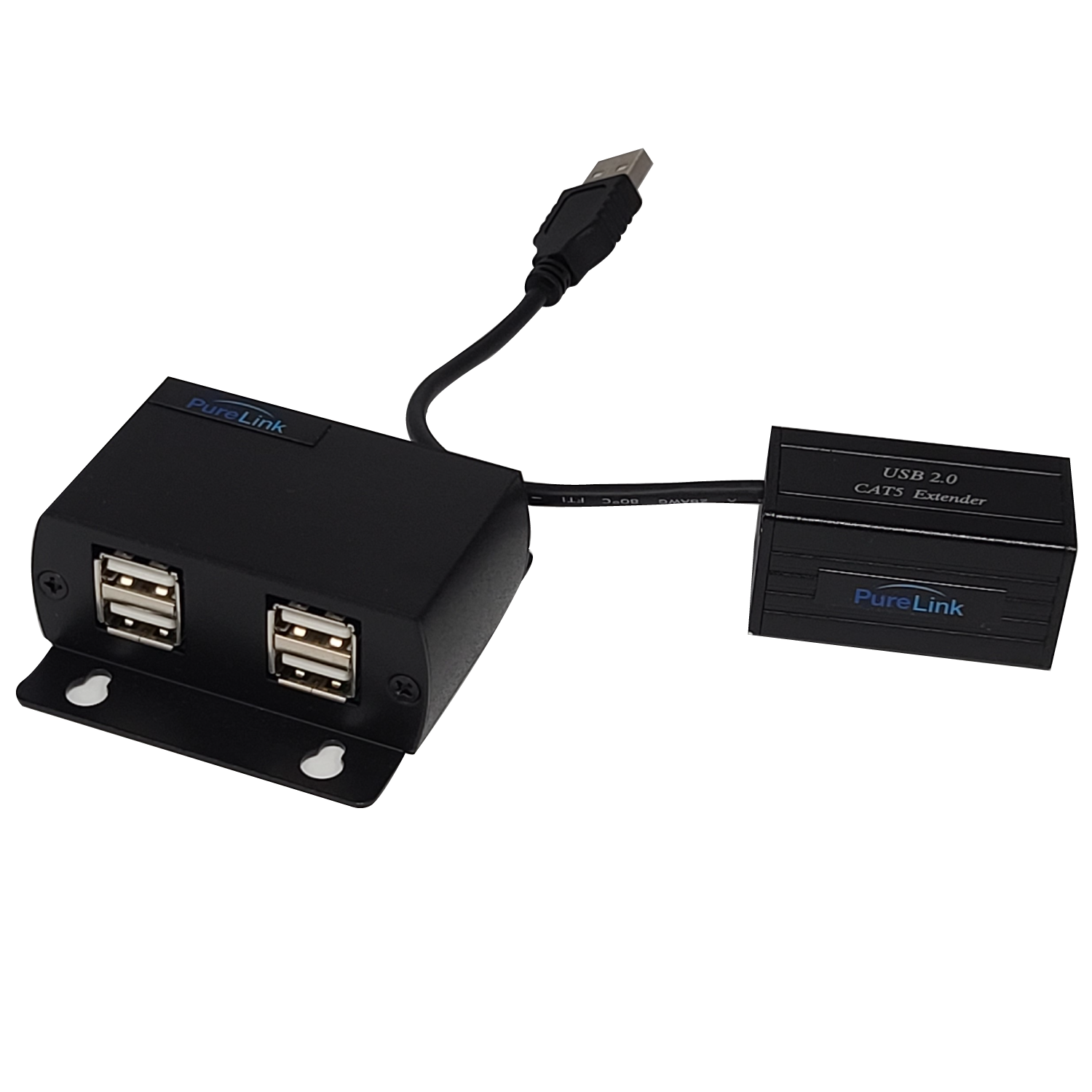

The USB2-E70 reliably extends USB 2.0 signals over a single CAT5e/6 cable up to 164 ft (50m) on CAT5e or 230 ft (70m) on CAT6. It supports up to four USB devices, including keyboards, mice, cameras, and other peripherals, with plug-and-play simplicity. The extender is ideal for workstations, conference rooms, or installations where USB devices need to be located away from the host PC. It is also TAA compliant for government and enterprise projects.
Key Features
-
Extends up to 4 USB devices to a PC or host device
- Extends USB 2.0 signals up to 164 ft (50m) over CAT5e or 230 ft (70m) over CAT6
- Compatible with USB 2.0 and USB 1.1 devices
- Plug-and-play operation for simple setup
- TAA-compliant
Specifications
| Standards & Compliance |
|
| Signal Standards |
USB 2.0, USB 1.1, USB 1.0
|
| Compliance |
TAA |
Transmitter Connector Types
|
|
| CATx - TX |
1 × LAN (RJ45) |

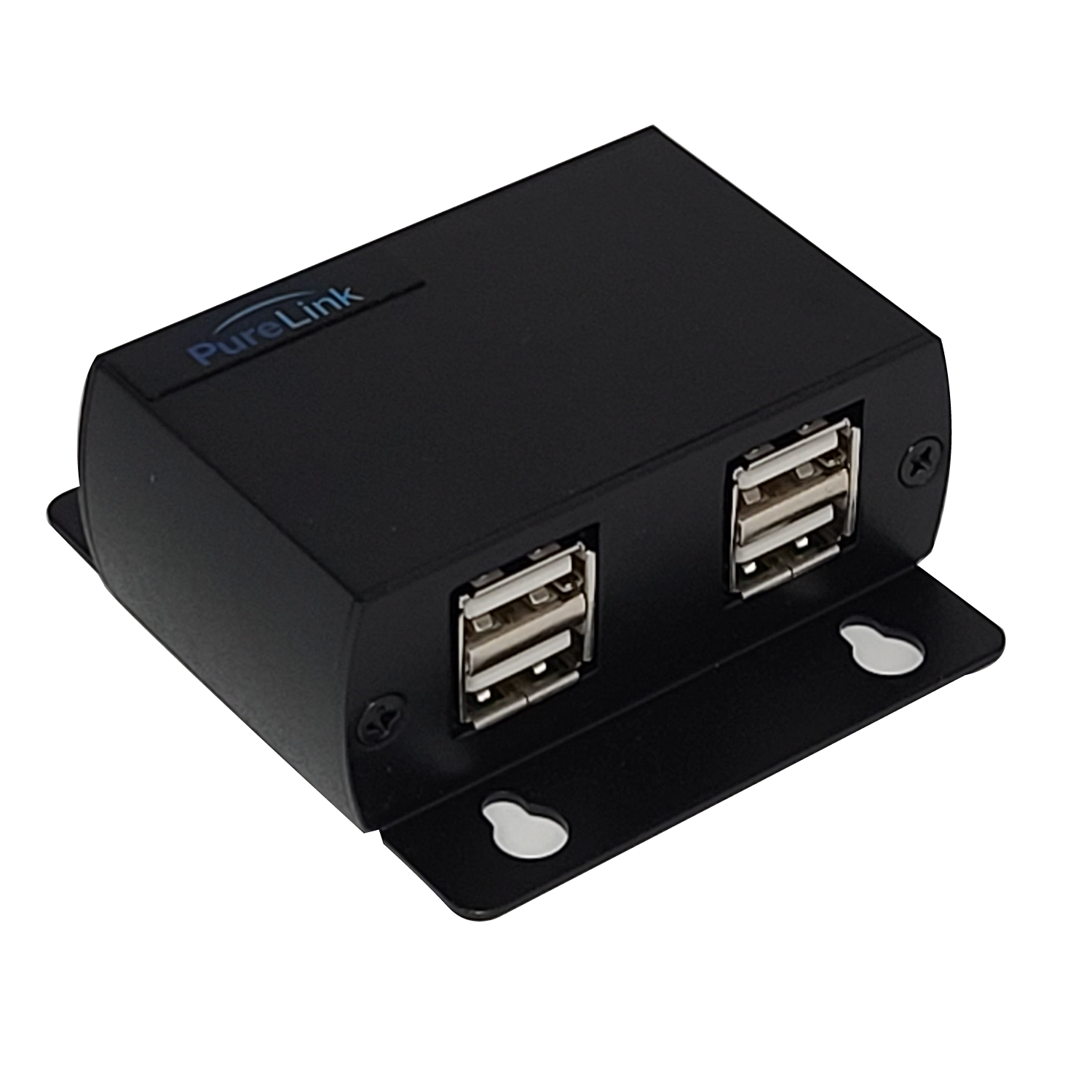

| USB Inputs - TX |
4 × USB-A |
Receiver Connector Types
|
|

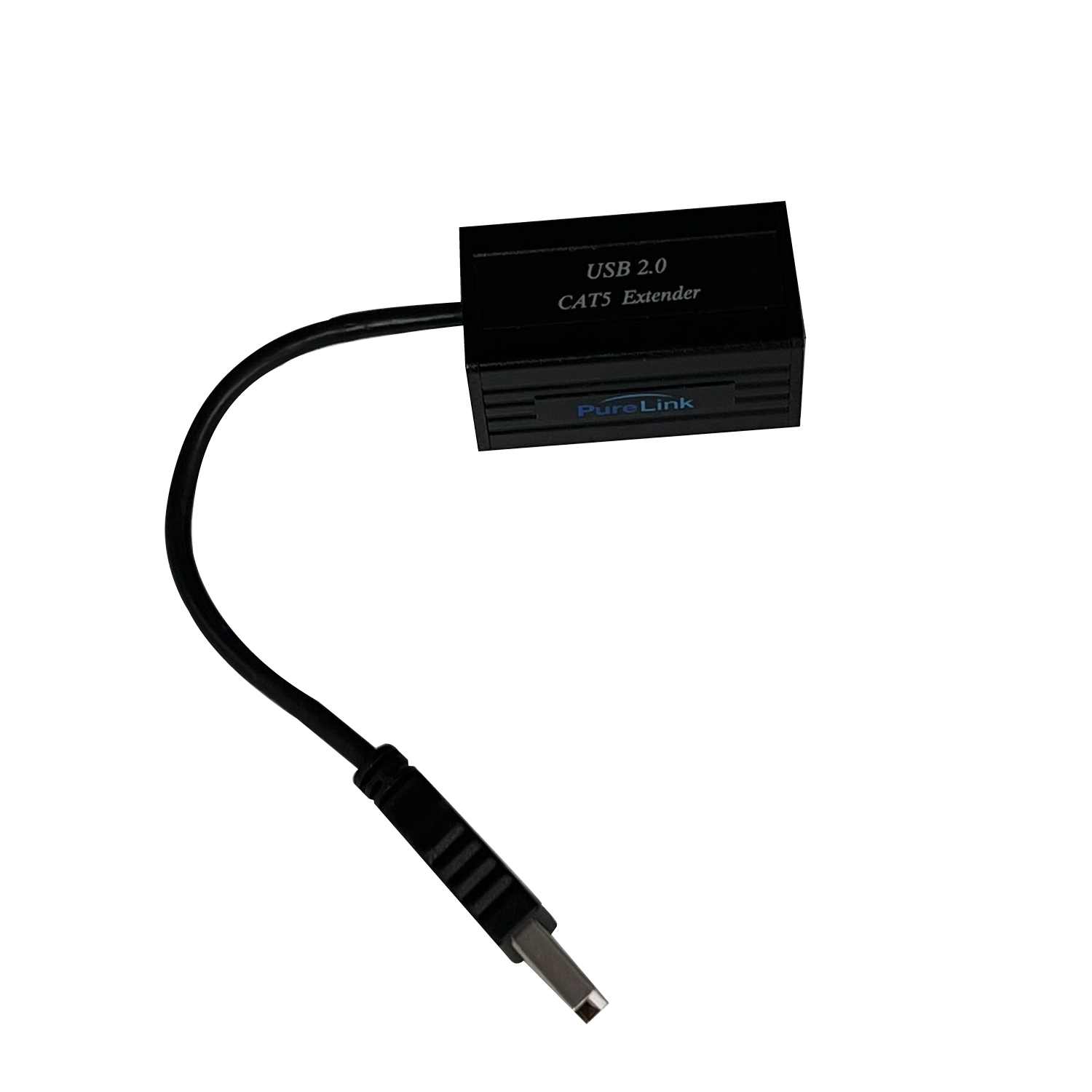

| CATx - RX |
1 × LAN (RJ45) |
| USB Outputs - RX |
1 × USB-A |
Performance
|
|
| CATx Transmission Distance |
CAT6: 70m, CAT5e: 50m
|
| Max Data Rate |
USB2.0: 480Mbps , USB1.1: 12Mbps, UBS1.0: 1.5Mbps
|
| Cable Type (CatX) |
CAT 5e, CAT 6
|

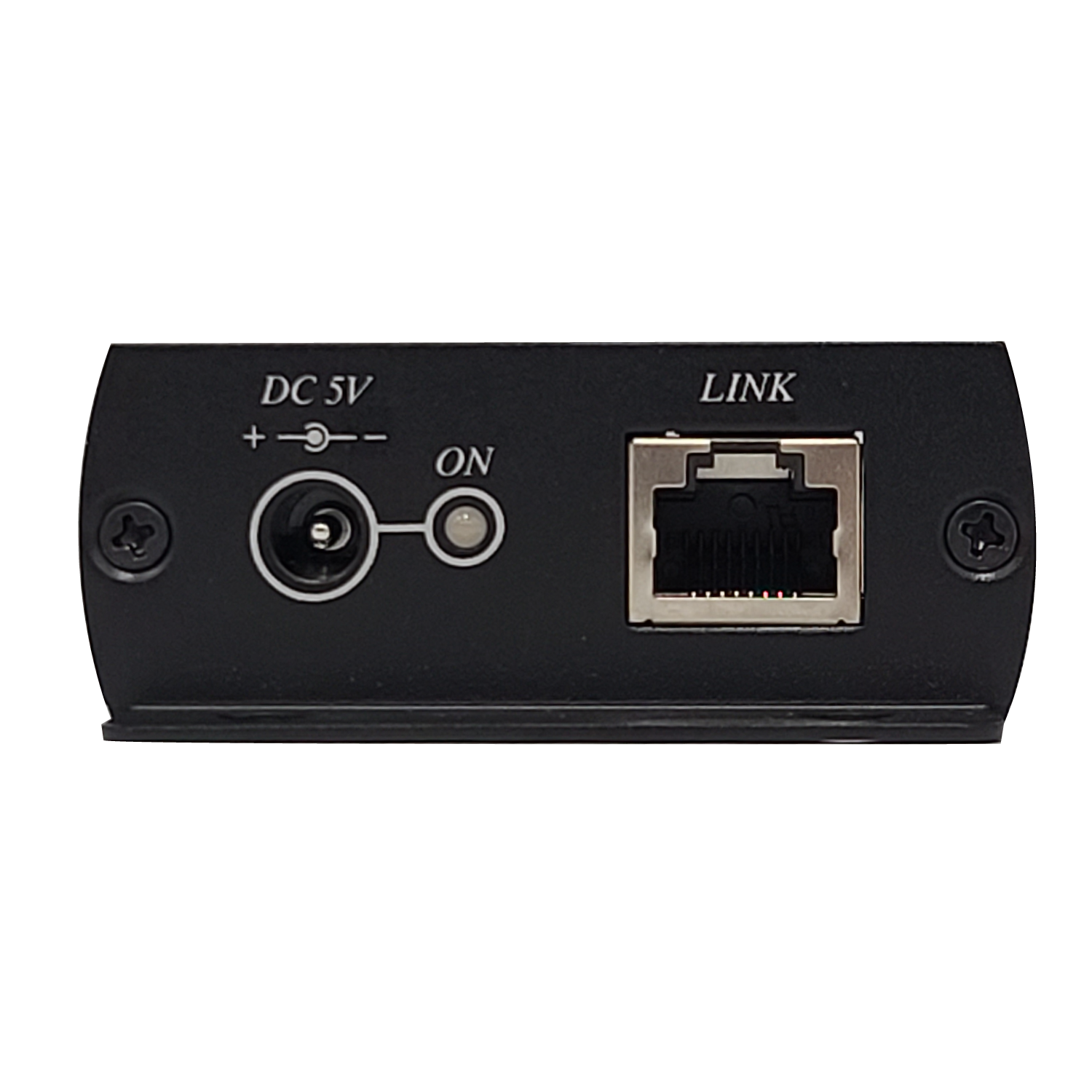

Power Transmitter
|
|
| Power Input |
DC 5V/2A |
| Power Supply |
AC 100 - 240V 50/60Hz |
| Power Consumption |
1500mA for 4 USB devices |
Power Receiver
|
|
| Power Input - RX |
DC 5V/2A |
| Power Supply - RX |
AC 100 - 240V 50/60Hz |
| Power Consumption - RX |
1500mA for 4 USB devices |
Environment
|
|
| Operating Temperature |
32 to 131°F / 0 to 55°C |
| Storage Temperature |
-4 to 185°F / -20 to 85°C |
| Relative Humidity |
0 to 95% |
Enclosure
|
|
| Product Dimensions (W × D × H) |
TX: 2.36 in × 2.76 in × 1.06 in (60mm × 70mm × 27.0mm) , RX: 1.0 in × 1.0 in × 9.45 in (25.4mm × 25.4mm × 240mm)
|
| Weight |
TX: 0.25 lbs (115g), RX: 0.12 lbs (55g)
|
Warranty
|
|
| Parts |
3 year |
| Labor |
3 year |
