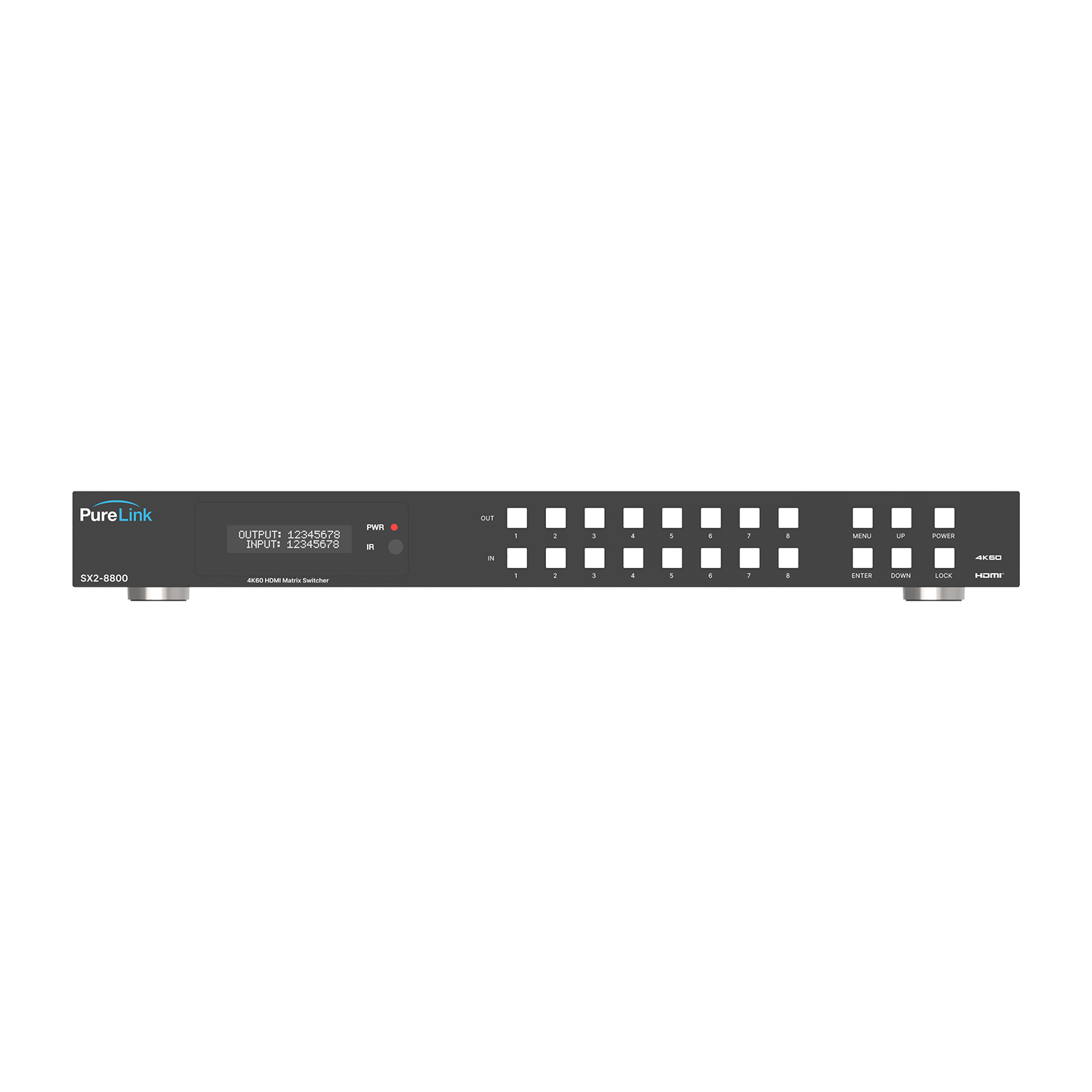

| Standards & Compliance |
|
| Signal Standards |
HDMI 2.0b |

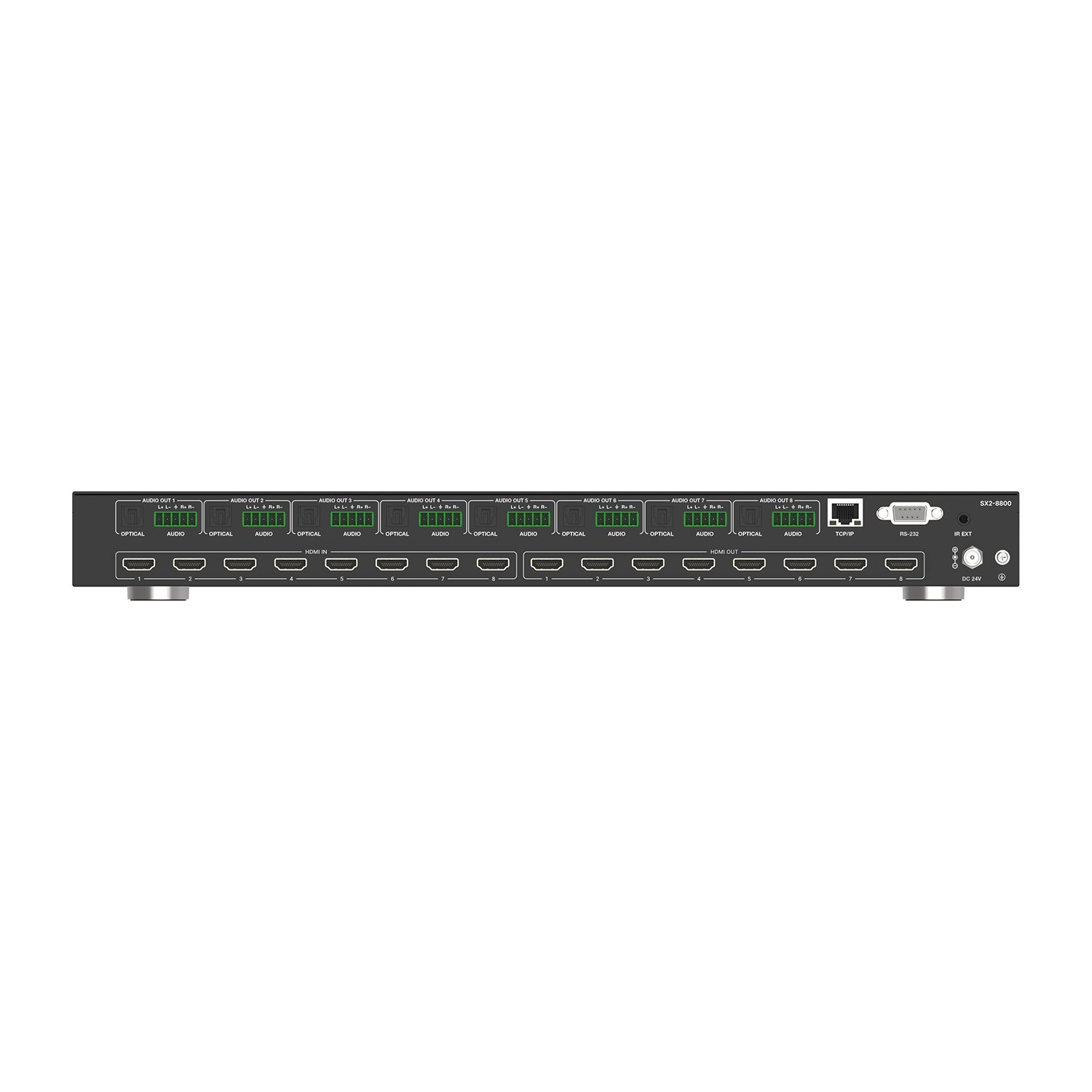

Matrix Connector Types
|
|
| HDMI Inputs |
8 × HDMI IN (Type A, 19-pin female) |
| HDMI Outputs |
8 × HDMI OUT (Type A, 19-pin female) |
| IR Out |
1 × 3.5mm TRS |
| TCP/IP |
1 × LAN (RJ45) |
| RS-232 |
1 × DB9 female |
| Audio Outputs |
8 × OPTICAL AUDIO OUT (S/PDIF), 8 × L/R AUDIO OUT (3.5mm 3-pin Phoenix)
|
Performance
|
|
| HDMI Transmission Distance |
4K@60: 5m, 4K@30: 10m, 1080P@60: 15m
|
| Max Video Resolution |
4K60 (4:4:4) |
| Video Bandwidth |
18 Gbps |
| Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
|
| Color Depth |
8-bit, 10-bit, 12-bit
|
| HDR |
HDR 10 , HDR 10+, HLG
|
| HDCP |
HDCP 2.2 |
| Dolby Vision |
Dolby Vision |
| RS-232 Support |
Yes |
| ESD Protection |
IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| IR |
Bi-directional |
| IR Level |
5Vp-p |
| IR Frequency |
20K-60KHz |
| HDMI Audio Formats |
LPCM, Dolby Digital, Dolby Digital Plus, Dolby Digital EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
|
| Coax Audio Formats |
LPCM 2.0CH, Dolby, DTS 5.1CH
|
| Analog Balanced Audio Formats |
LPCM 2.0CH |
Power Switcher
|
|
| Power Input |
DC 24V/3.5A |
| Power Supply |
AC 100 - 240V 50/60Hz |
| Power Consumption |
70W (Max) |
Environment
|
|
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Storage Temperature |
-4 to 140°F / -20 to 60°C |
| Relative Humidity |
20 to 90% |
Enclosure
|
|
| Product Dimensions (W × D × H) |
Matrix: 17.32 in × 11.81 in × 1.75 in (440mm × 300mm × 44.5mm) |
| Weight |
Matrix: 8.71 lbs (3.95kg) |
Warranty
|
|
| Parts |
3 year |
| Labor |
3 year |
