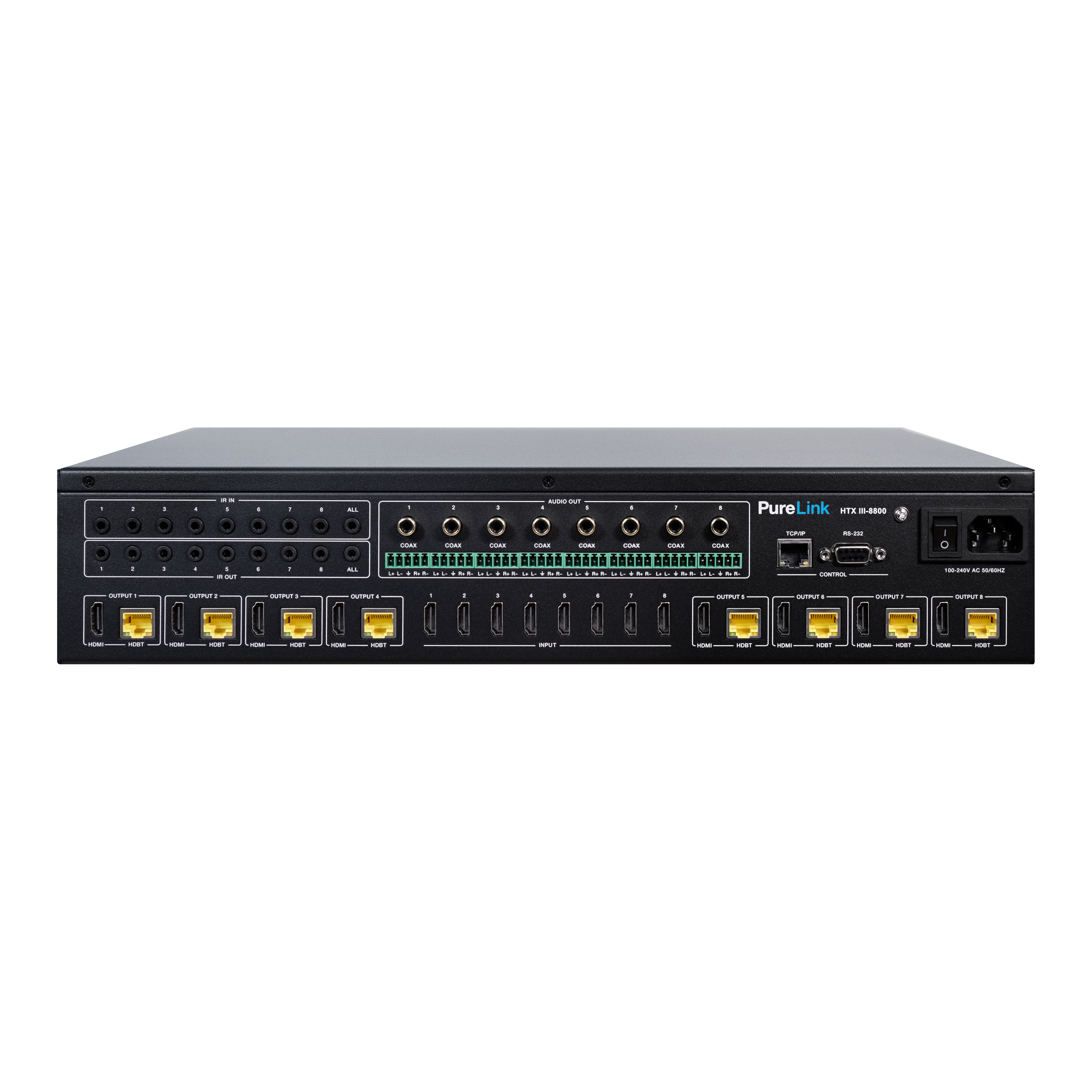

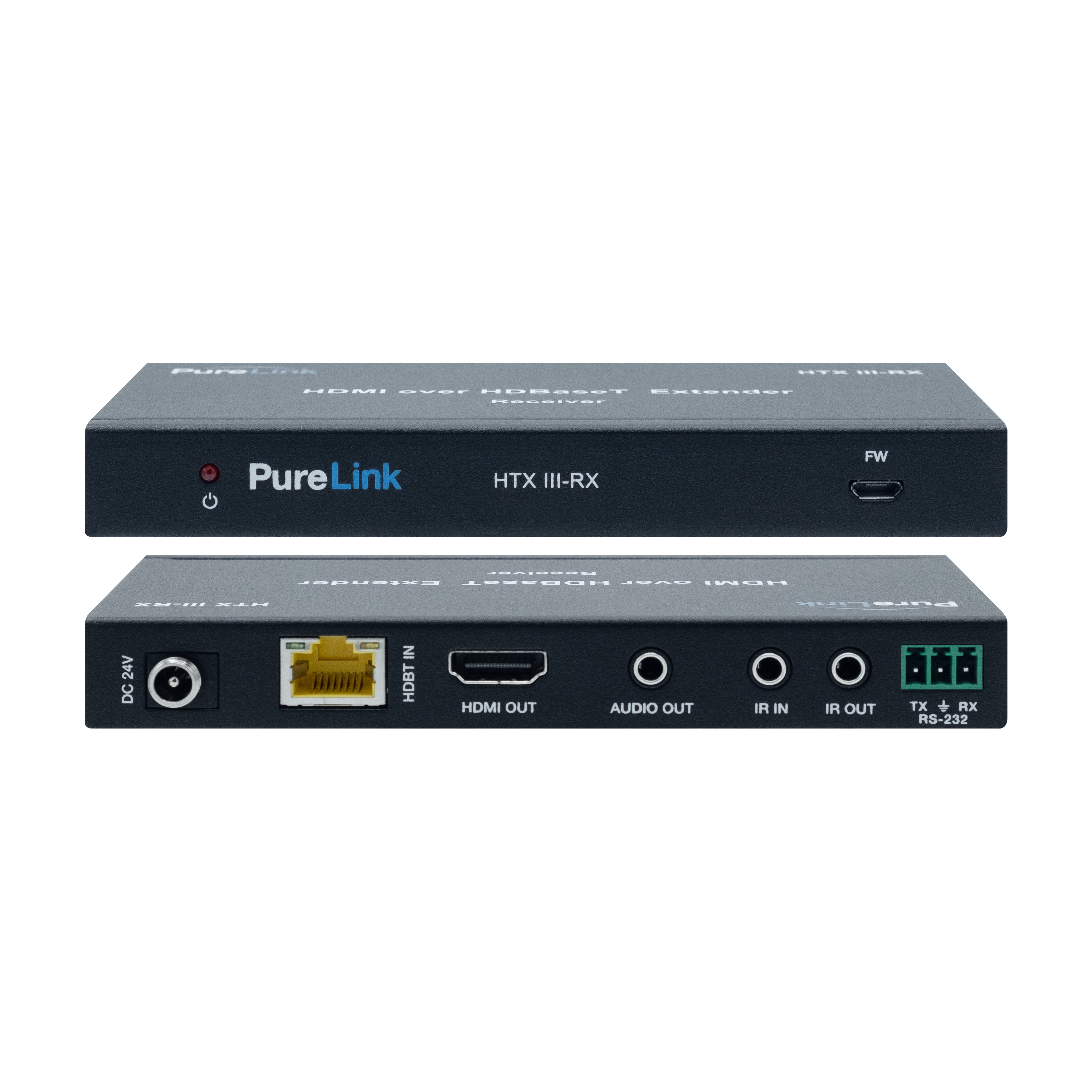

The HTX III-8800 provides matrix switching and extension up to 150 meters (492 feet) of (8) Ultra HD/4K sources via HDBaseT™ (with HTX III-RX receivers, sold separately). Each HDBaseT output includes a mirrored local HDMI output on the matrix.  The HTX III-8800 also features de-embedding of balanced stereo analog audio and SPDIF on the switch for each output, and unbalanced stereo analog de-embedding on each Receiver. The HTX III-8800 is HDCP 2.2 compliant, provides IR and RS232 extension, and offers PoC power for all HDBaseT Receivers. The HTX III-8800 is perfect for:

Key Features

• Conference Rooms
• Hospitality and Convention Halls
• Corporate
• Entertainment
• Retail
• Home Theater
• and much more...

Couple the HTX III-8800 with our iCON Control System for easy implementation of Video/Audio/IR/RS232 matrixing and control of your space. Crestron and QSC modules are also available for the HTX III-8800 as well as an intuitive API for developing control modules for other third party control systems.

Key Features

• HDMI 2.0b (18Gbps), HDCP 2.2, HDCP 1.4, HDR, HDR 10+
• (8) HDMI inputs, (8) HDBase outputs with mirrored HDMI outputs
• Resolutions up to 4K60 4:4:4 HDR on all HDMI ports
• Distances up to 492 ft. (150 m) via CATx
• Pass-through audio up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
• CEC control of peripherals
• 24V PoC on all HDBaseT ports
• Control via on-panel Buttons, IR, Web GUI, and RS-232, LAN via API
• Crestron and QSC modules available
• EDID Management:
  • 22 selectable EDID
  • 2 User Defined
  • 16 readable (from HDMI or HDBaseT output connections)

Specifications
