| Performance |
|
| Operating Temperature |
32° to 117°F / 0° to 47°C |
| Storage Temperature |
-40° to 158°F / -40° to 70°C |
| Relative Humidity |
0–90% non-condensing |
| Dante Audio |
2-channel inputs, 2-channel outputs; PCM 44.1–96kHz, 16/24-bit |
| Analog Audio |
2-channel balanced/unbalanced inputs; 2-channel balanced/unbalanced outputs |
| Amplifier Type |
Class D |
| Output Power |
2 × 75W at 4Ω/8Ω; 1 × 150W at 8Ω bridged; 1 × 150W at 70V/100V |
| Input Sensitivity |
0.775V / 0dBu |
| Maximum Voltage Gain |
27–30dB SE / 39–42dB BTL |
| Frequency Response |
20Hz–20kHz at ±3dB |
| Signal-to-Noise Ratio |
87dB, 20Hz–10kHz |
| THD+N |
0.04% at 1kHz/1W |
| ESD Protection |
Human Body Model: ±8kV air-gap discharge, ±4kV contact discharge |

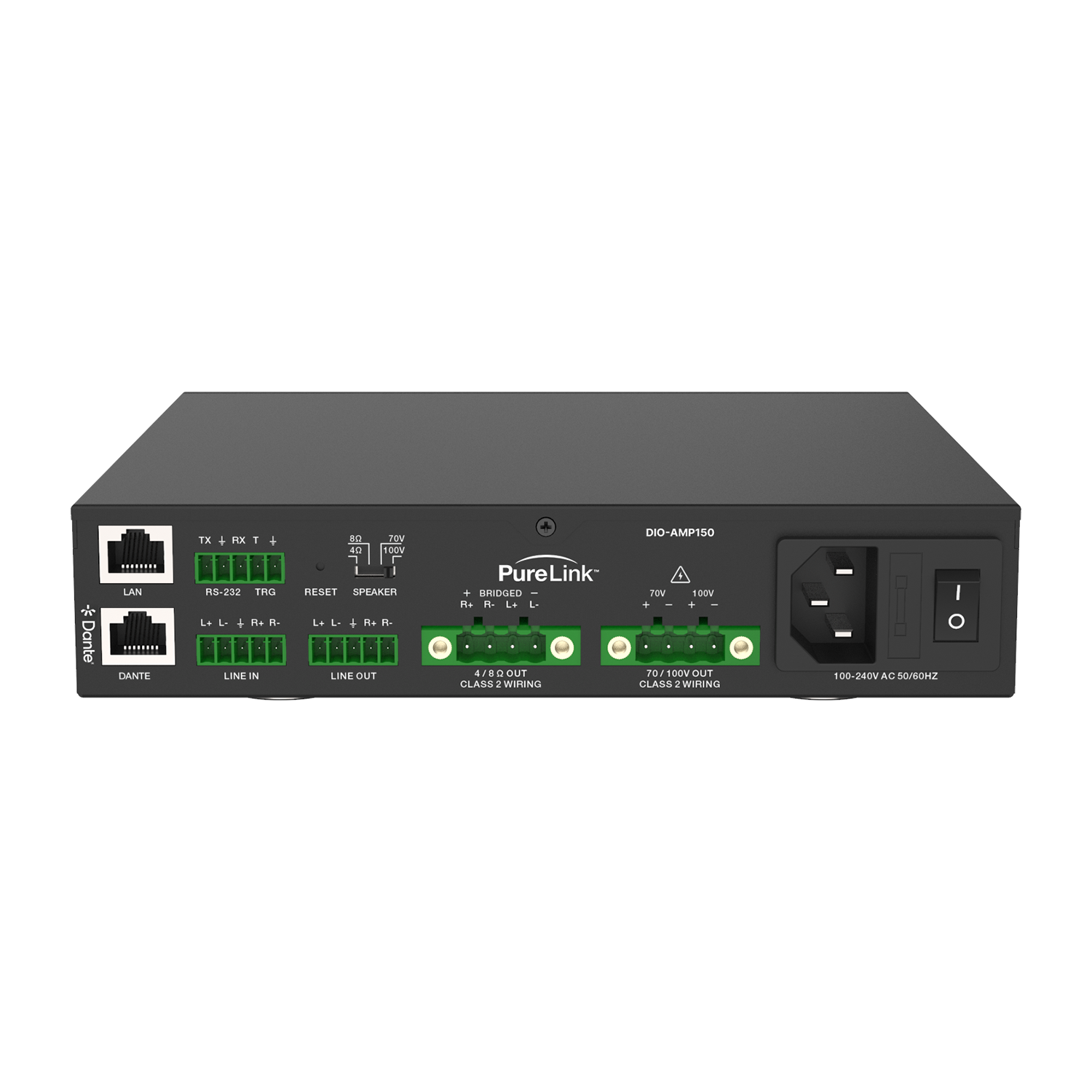

Connections |
|
| Control Ports |
1 × RJ45 LAN, 1 × 5-pin Mini Phoenix RS-232 |
| Dante |
1 × RJ45 |
| Audio I/O |
1 × 5-pin Mini Phoenix balanced/unbalanced 2-channel analog input; 1 × 5-pin Mini Phoenix balanced/unbalanced 2-channel analog output |
| Power Amp |
1 × 4-pin Phoenix 4Ω/8Ω output; 1 × 4-pin Phoenix 70V/100V output |
Software |
|
| Software |
Built-in Web UI for I/O, DSP settings and diagnostics |
Power |
|
| Power Supply |
AC 100–240V, 50/60Hz |
| Power Consumption |
75W |
Environmental |
|
| Operating Temperature |
32° to 104°F / 0° to 40°C |
| Storage Temperature |
-4° to 140°F / -20° to 60°C |
| Relative Humidity |
20–90% RH, non-condensing |
Enclosure |
|
| Product Dimensions |
9.45 × 8.27 × 1.73 in / 240 × 210 × 44 mm |
| Product Weight |
4.14 lbs / 1.88 kg |
Warranty |
|
| Warranty |
3 Years |
