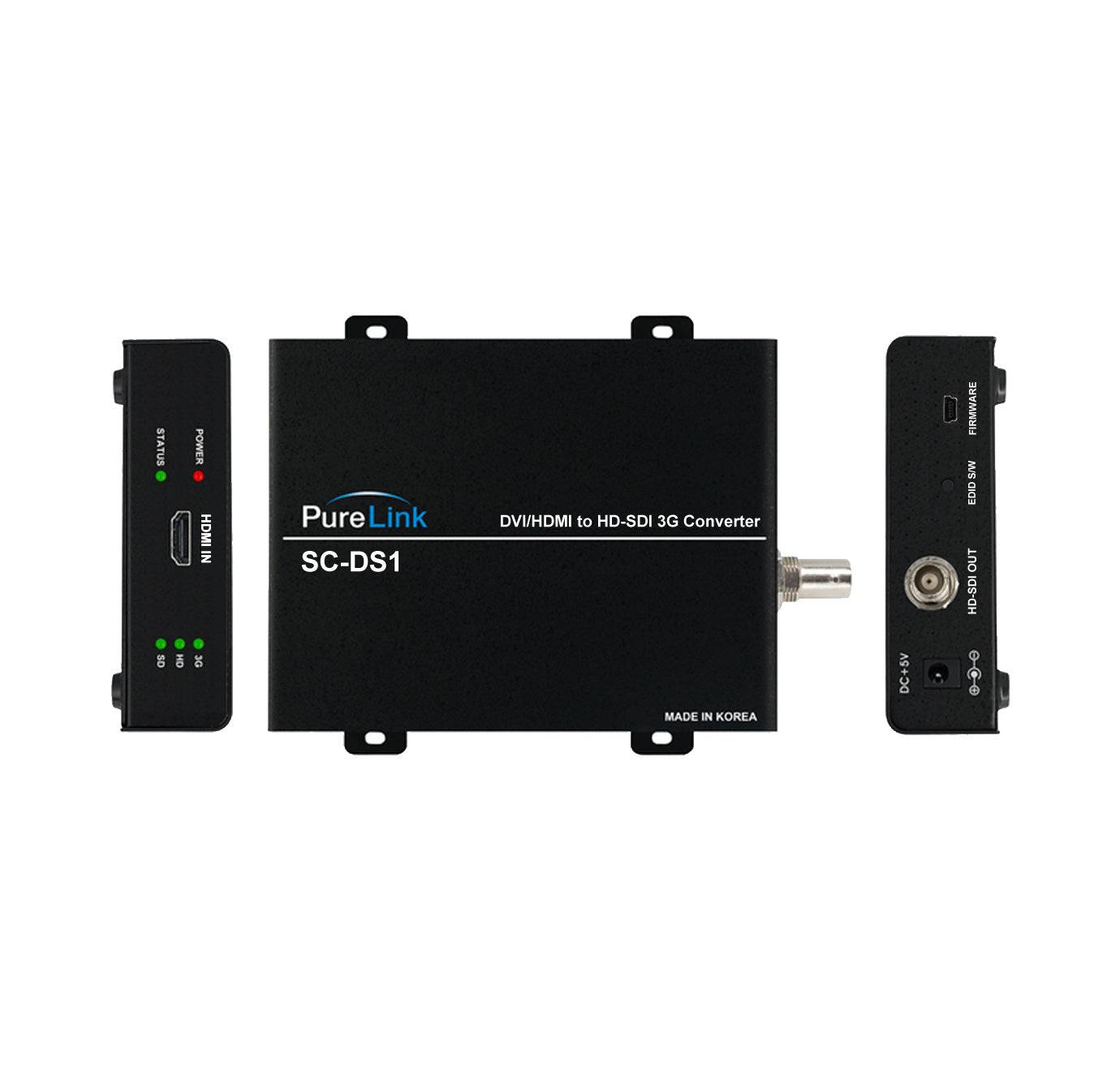

The HDTools SC-DS1 provides HDMI to HD-SDI conversion while boosting the signal quality, offering reliable transmission over longer distances. The SC-DS1 features a 3 Gb/s serial link interface is standardized for SMPTE 424M for Dual Link HD-SDI support. The SC-DS 1 can support native resolutions up to 1080p@60Hz and provides lossless video and audio transmission. The SC-DS1 is also DVI 1.0 compatible.
Key Features
- HDMI to HD-SDI signal conversion
- 3 Gb/s serial link interface for 1080p transport
- Dual Link HD-SDI support
- HDCP and HDMI 1.4 compliant
- DVI 1.0 compatible
- High quality, lossless signal transport
Specifications
| Hardware |
|
| Output Signal Type(s) |
Configurable via PureMedia™ universal output cards for HDMI, HDBaseT, fiber, and 3G-SDI |
Performance |
|
| Video Bandwidth |
1.65 Gbps |
| Power Consumption |
60W max |
| Power Supply |
DC 12V, 2A |
| Operating Temperature |
32° to 117°F / 0° to 47°C |
| Storage Temperature |
-40° to 158°F / -40° to 70°C |
| Relative Humidity |
0–90% non-condensing |
| MTBF |
50,000 hours |
| Rack Mounting Option |
1U rack space |
| Input Video Signal |
1.2Vp-p |
| Input DDC Signal |
5Vp-p (TTL) |
| Single-Link Range |
1080p / 1920 × 1200@60Hz |
Connections |
|
| DVI-D Connector |
Type A, 29-pin |
Enclosure |
|
| Rack Mounting Option |
1U rack space |
| Product Dimensions |
17 × 1.75 × 5.5 in |
| Shipping Weight |
8 lbs |
Warranty |
|
| Warranty |
Limited Warranty, 3 Years |
TAA
Discontinued
