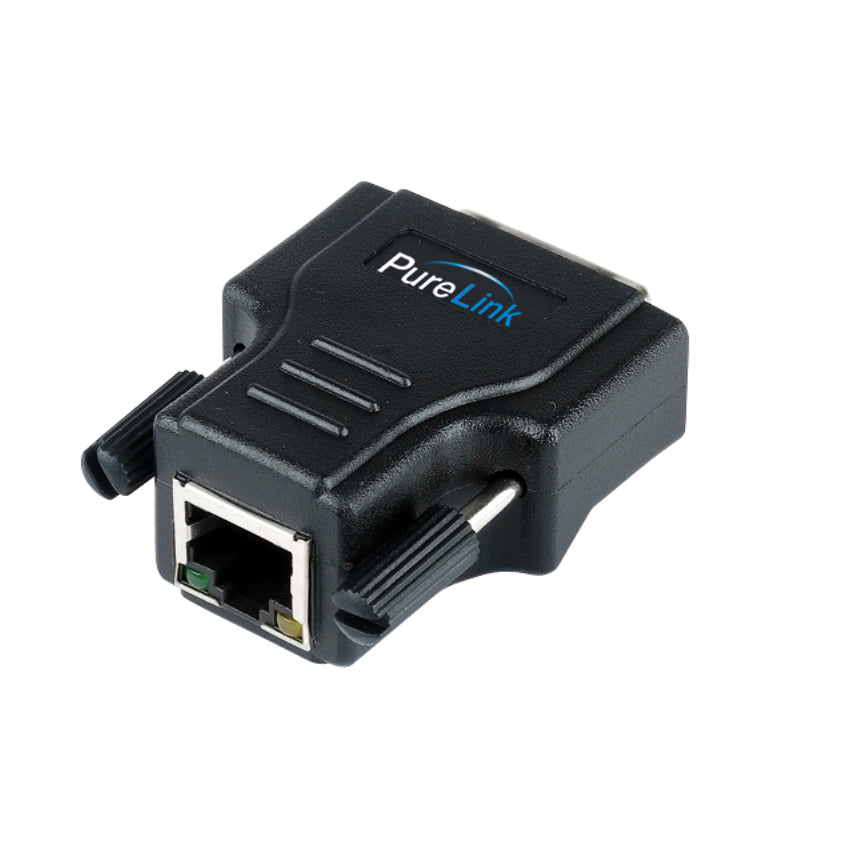

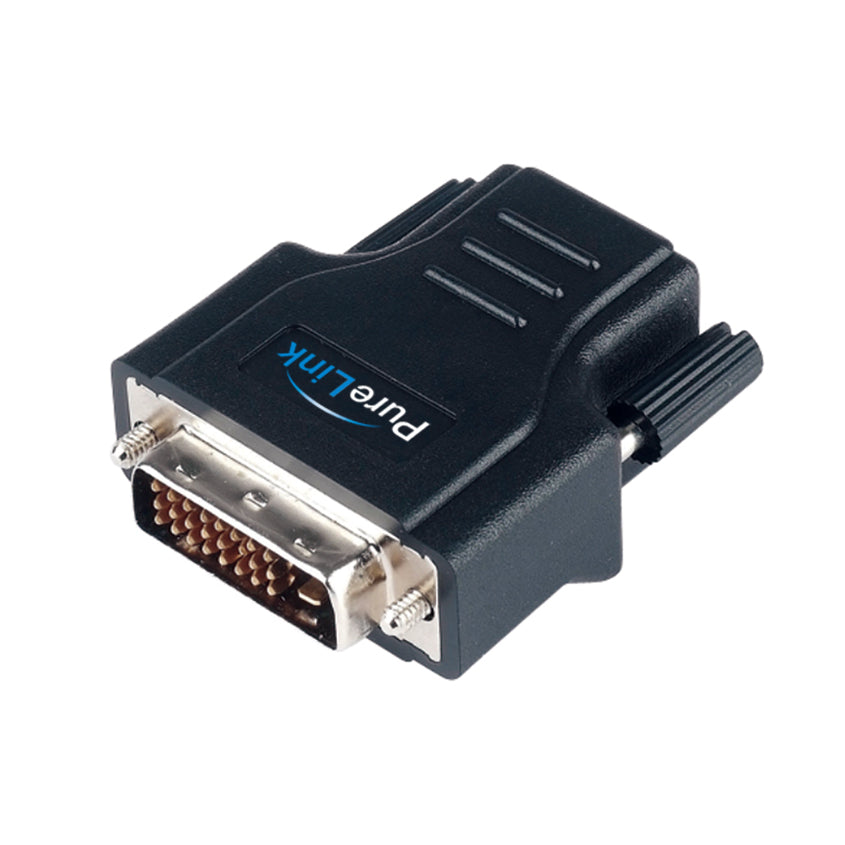

The DCE II delivers reliable DVI video extension over a single CATx cable, transmitting Full HD signals up to 1920×1200 at 165 ft (50m) and 1024×768 up to 220 ft (67m). Embedded EDID and automatic device recognition ensure lossless signal transmission and seamless integration with PCs, laptops, or media players. The active receiver draws power directly from the DVI source, eliminating the need for external power. Ideal for point-to-point digital signage, classrooms, or small-scale AV setups. Individual transmitter and receiver units are also available.
Key Features
-
DVI extension up to 165 ft (50m) at 1920×1200
- Transmits 1024×768 up to 220 ft (67m)
- Embedded EDID for lossless signal transmission
- Active receiver powered by DVI source – no external power required
Specifications
| Standards & Compliance |
|
| Signal Standards |
DVI 1.0 |
Transmitter Connector Types |
|
| CATx - TX |
1 × LAN (RJ45) |
| DVI Inputs - TX |
1 × DVI IN (Type DVI-D, 25-pin female) |
| USB Inputs - TX |
Micro USB |
Receiver Connector Types |
|
| CATx - RX |
1 × LAN (RJ45) |
| DVI Outputs - RX |
1 × DVI OUT (Type DVI-D, 25-pin female) |
| USB Devices - RX |
Micro USB |
Performance |
|
| CATx Transmission Distance |
1920 × 1200@60Hz or 1080p@60Hz: 50 m |
| Max Video Resolution |
1920 × 1200@60Hz |
| Max Data Rate |
1.65 Gbps |
| Cable Type (CATx) |
CAT 5, CAT 6, CAT 7 |
| MTBF |
90% at over 50,000 hours aging test |
Power Transmitter |
|
| Power Input |
DC 5V/1A |
| Power Consumption |
1.6W max |
Power Receiver |
|
| Power Input - RX |
DC 5V/1A |
| Power Consumption - RX |
1.6W max |
Environment |
|
| Operating Temperature |
32 to 131°F / 0 to 55°C |
| Storage Temperature |
-4 to 185°F / -20 to 85°C |
| Relative Humidity |
5 to 95% |
Enclosure |
|
| Product Dimensions (W × D × H) |
1.6 in × 2.2 in × 0.9 in / 40.2mm × 55.5mm × 22.5mm |
| Weight |
0.08 lbs / 36.29g |
Warranty |
|
| Parts |
3 year |
| Labor |
3 year |
TAA/NDAA
