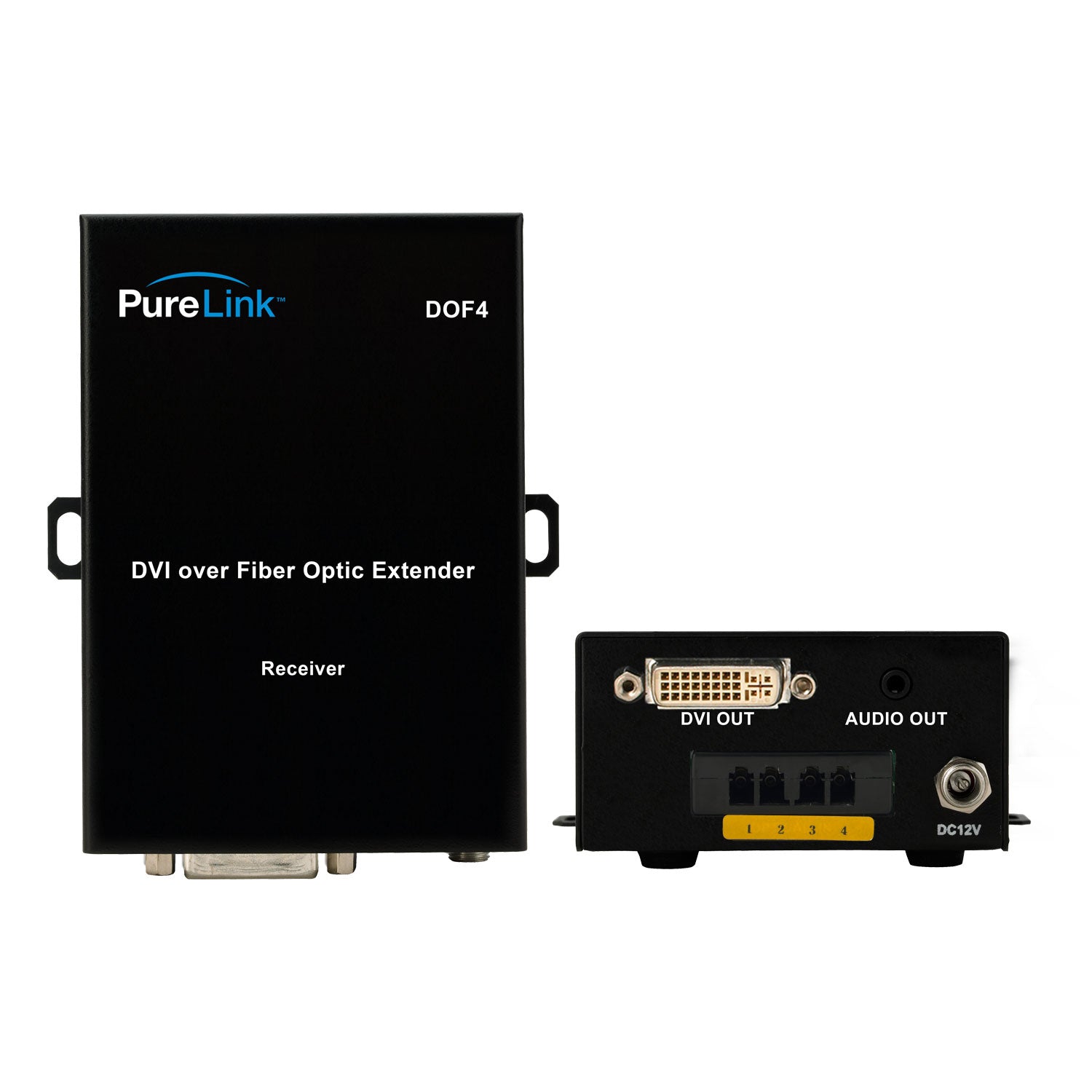

The HDTools™ DOF4 Tx/Rx extension system offers reliable extension of uncompressed HD video and analog stereo audio to distances up to 5000 ft. (1,530 meters) over multimode fiber. The DOF4 Tx/Rx can be used for simple point-to-point applications, or in combination with HDTools™ distribution amplifiers and switchers to deliver a flexible, seamless solution for long distance signal transmission.
Key Features
- DVI + Analog Audio to 4 LC Fiber receiver
- Supports resolutions up to 1920x1200 @ 60Hz, 1080p @ 60Hz
- 3.5mm stereo audio input
- Auto-EDID management
- HDCP Compliant
- Rack mountable option
Specifications
| Performance |
|
| Supported Resolutions |
Up to 1920 × 1200 / 1080p@60Hz single-link, up to 5,000 ft |
| Power Supply |
Powered by the RF6 mainframe: DC 12V, 3A, 14W max |
| Operating Temperature |
32° to 117°F / 0° to 47°C |
| Storage Temperature |
-40° to 158°F / -40° to 70°C |
| Relative Humidity |
0–90% non-condensing |
| MTBF |
50,000 hours |
| Rack Mounting Option |
Standard 19-inch rack-mountable design |
Connections |
|
| Connector Type(s) |
4 × Female LC connectors |
Enclosure |
|
| Rack Mounting Option |
Standard 19-inch rack-mountable design |
Warranty |
|
| Warranty |
Limited Warranty, 3 Years |
