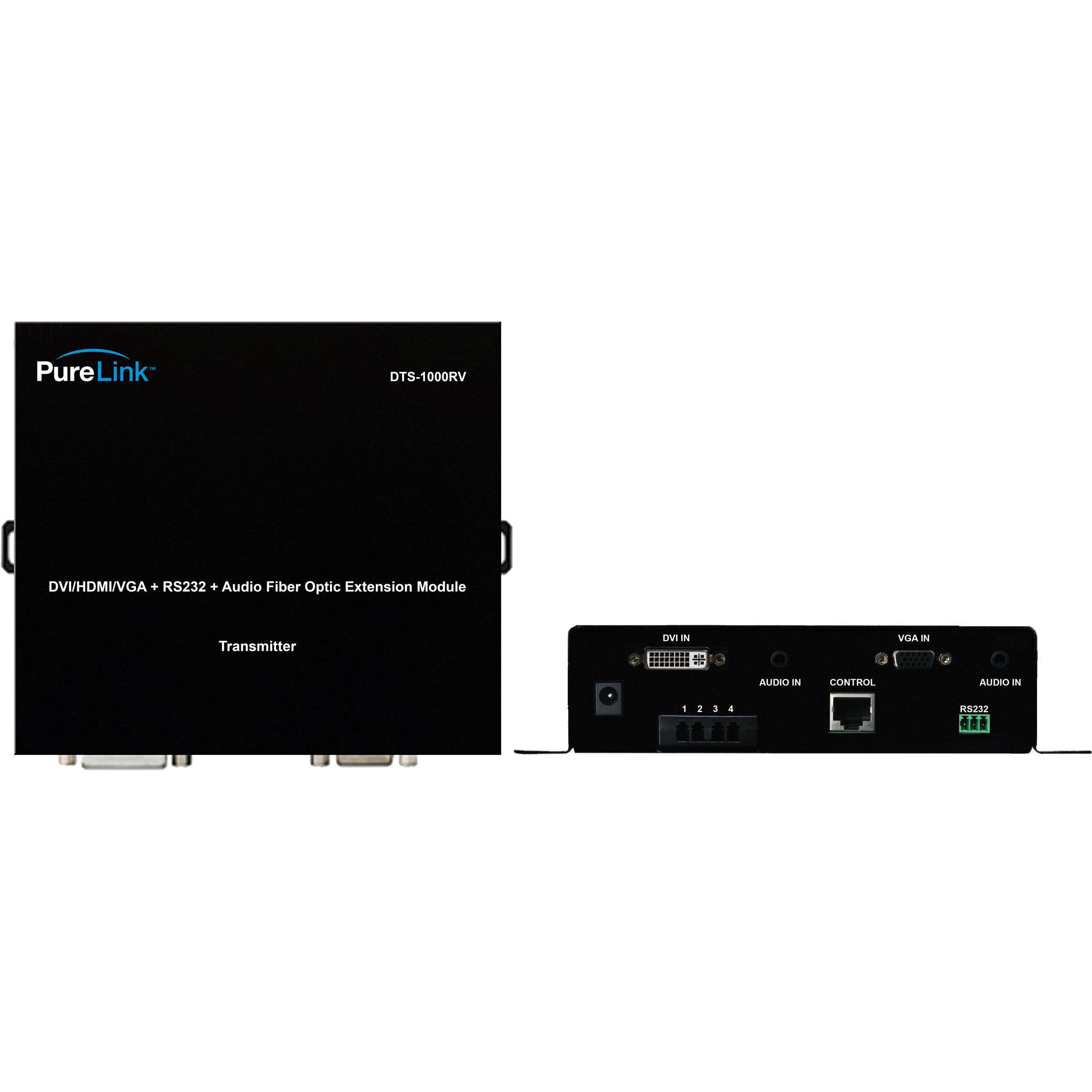

The HDTools™ DTS1000RV supports long-distance extension of DVI/VGA, 3.5 stereo audio, and RS232 control signals over multimode fiber. Housed in a robust, compact enclosure, the DTS1000RV and its corresponding receiver (DRS1000RV) can be easily integrated into a wide range of applications requiring long-distance transmission of high quality content.
Key Features
- DVI/VGA + Audio, RS-232 to 4LC Fiber + (1) CATx transmitter
- Supports resolutions up to 1080p@60Hz
- Supports cable distances up to 1000m
- HDCP compliant
- Signal amplification and noise cancellation technology
- Auto-EDID management
Specifications
| Performance |
|
| Supported Distance |
Up to 3,000 ft at 1080p; up to 5,000 ft at 1080i |
| Supported Resolutions |
Up to 1080p@60Hz |
| Compliance |
DVI 1.0, HDMI 1.3, HDCP |
| Video Bandwidth |
1.65 Gbps per color for DVI-D single-link; 2.25 Gbps per color for HDMI |
| RS-232 |
1 × RS-232 via 3-pin Phoenix connector |
| Power Consumption |
DC 12V, 4.1A; 8W typical, 13W max |
| Power Supply |
100–240VAC, 50/60Hz |
| Operating Temperature |
32° to 117°F / 0° to 47°C |
| Storage Temperature |
-40° to 158°F / -40° to 70°C |
| Relative Humidity |
0–90% non-condensing |
| MTBF |
50,000 hours |
Enclosure |
|
| Product Dimensions |
4.3 |
| Product Weight |
1.4 lbs |
Warranty |
|
| Warranty |
Limited Warranty, 3 Years |
