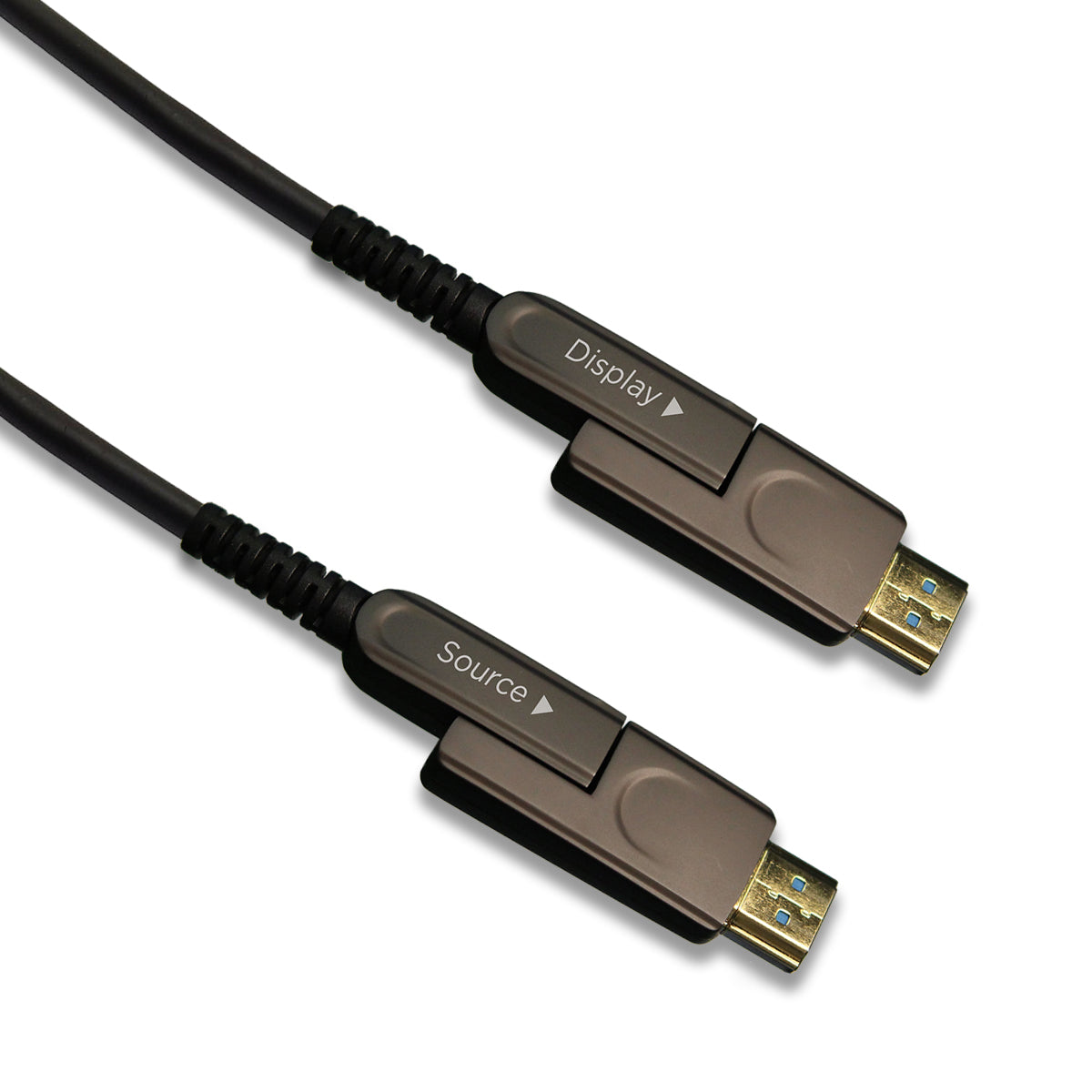

The EZH2-DT HDMI 2.0 over Fiber Cable offers full 4K60 (4:4:4) support and HDCP 2.2 compliance over long distances without the need for external power or additional extenders. Featuring detachable HDMI and DVI Tx/Rx connectors, the EZH2-DT offers ultimate convenience and manageability.
Applications
- Corporate AV systems
- Indoor & outdoor digital signage
- Home theater systems
Key Features
- Supports resolutions up to 4K/60 4:4:4
- Supports High Dynamic Range (HDR) content
- High quality, detachable Tx/Rx connectors*
- Pre-terminated lengths up to 100 meters
- HDCP 2.2/1.4, CEC compliant
- 18 Gbps data rate (6 Gbps per channel)
- Low power consumption (250mW)
- Pass-through EDID
- Plug-n-play (external power* not required)
DVI Tx/RX connectors sold separately
*Optional auxiliary power supply unit available
Specifications
| Performance |
|
| Distance |
4K@50/60Hz (4:4:4), 3D, 36-bit Deep Color |
| Compliance |
HDMI 2.0, HDCP 2.2/1.4, CEC compliant |
| Data Transfer Rate |
18 Gbps |
| HDR Support |
Yes |
| Power Consumption |
250mW max |
| Power Supply |
100–240VAC, 50/60Hz |
| Operating Temperature |
-4° to 140°F / 0° to 50°C |
| Storage Temperature |
-40° to 158°F / -40° to 70°C |
| Relative Humidity |
5 to 85% RH |
| MTBF |
50,000 hours |
Warranty |
|
| Warranty |
3 Year |
