| Connections |
|
| Inputs |
Fiber with Deep Color, 3D, and 4K; HDMI 2.0 |
| Outputs |
12G-SDI, 2 × Mirrored outputs |
| Control Ports |
EDID control: 16-position rotary switch; source control: DIP switch for HDMI or fiber |
| Connector Type(s) |

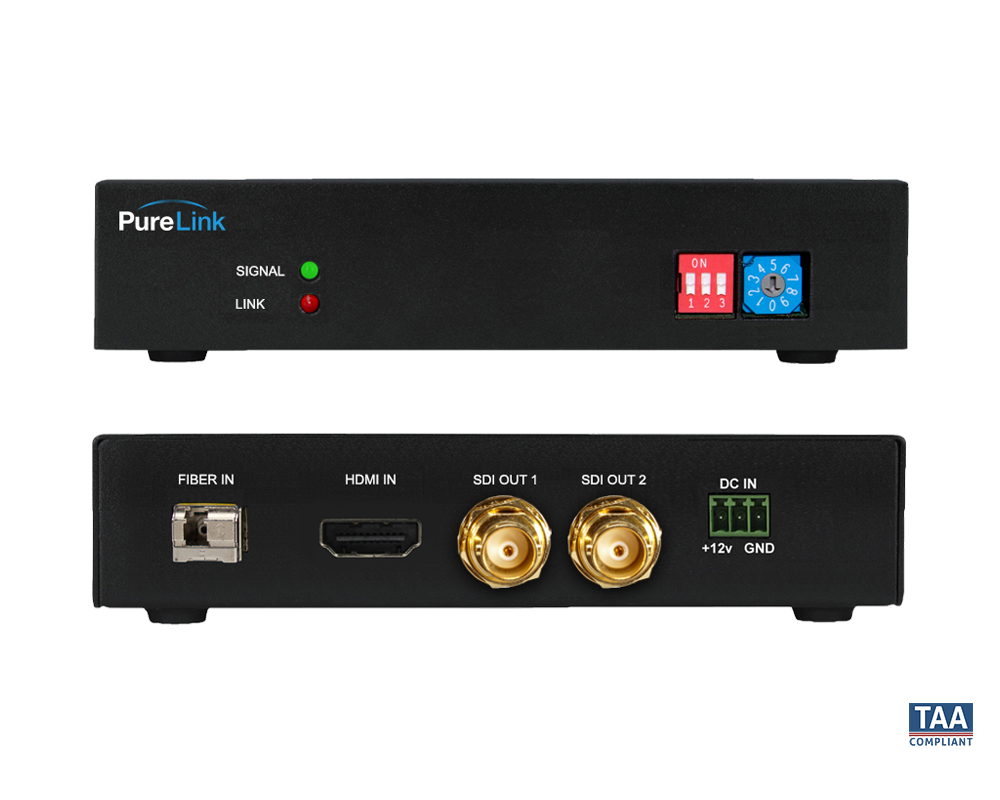

1 × HDMI Type A female, 1 × 1LC optical fiber, 2 × BNC female, 1 × 3-pin Phoenix connector for 12V power |
Performance |
|
| Supported Distance |
Up to 1.24 miles via single-mode fiber; up to 1,650 ft via multimode fiber |
| Supported Resolutions |
525i59.94, 625i50, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SDI Standards |
SMPTE 295M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A, SMPTE 2081-1, SMPTE 2018-10, SMPTE 2082-10, ITU-R BT.656, ITU-R BT.601 |
| SDI Video Sampling |
YCbCr 4:2:2 |
| SDI Audio Sampling |
48kHz, 24-bit, 8-channel |
| Power Supply |
DC 12V, 100–220VAC |
| Operating Temperature |
4° to 158°F / -20° to 70°C |
| Storage Temperature |
-40° to 158°F / -40° to 70°C |
| Relative Humidity |
10–80% non-condensing |
| MTBF |
50,000 hours |
Enclosure |
|
| Enclosure Type |
All-metal construction with black powder-coated finish |
| Product Weight |
1.5 lbs / 0.68 kg |
| Product Dimensions |
12.21 × 7.09 × 2.76 in / 310 × 180 × 70 mm |
| Product Weight |
7.7 lbs / 3.5 kg |
Warranty |
|
| Warranty |
Limited Warranty, 5 Years |
TAA
