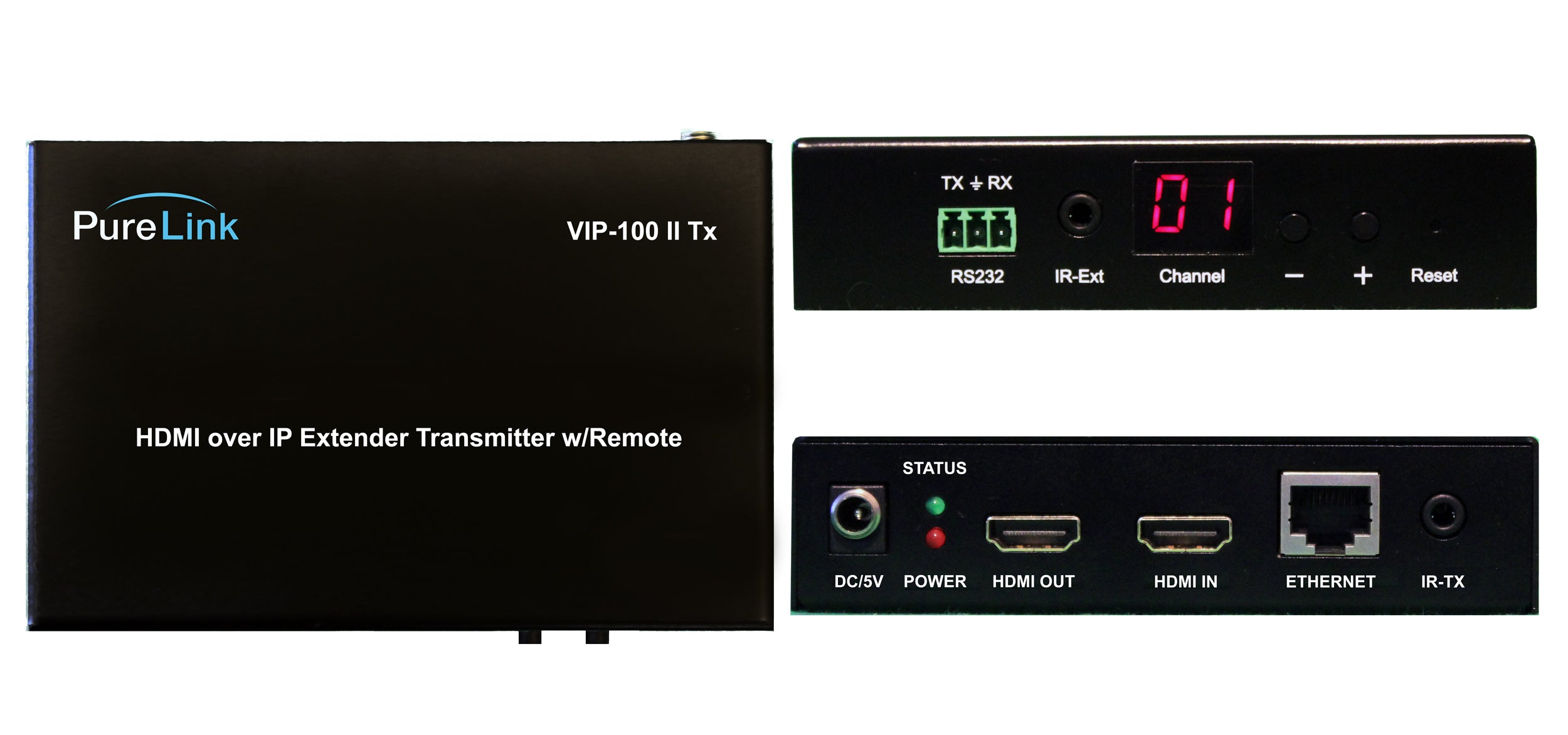

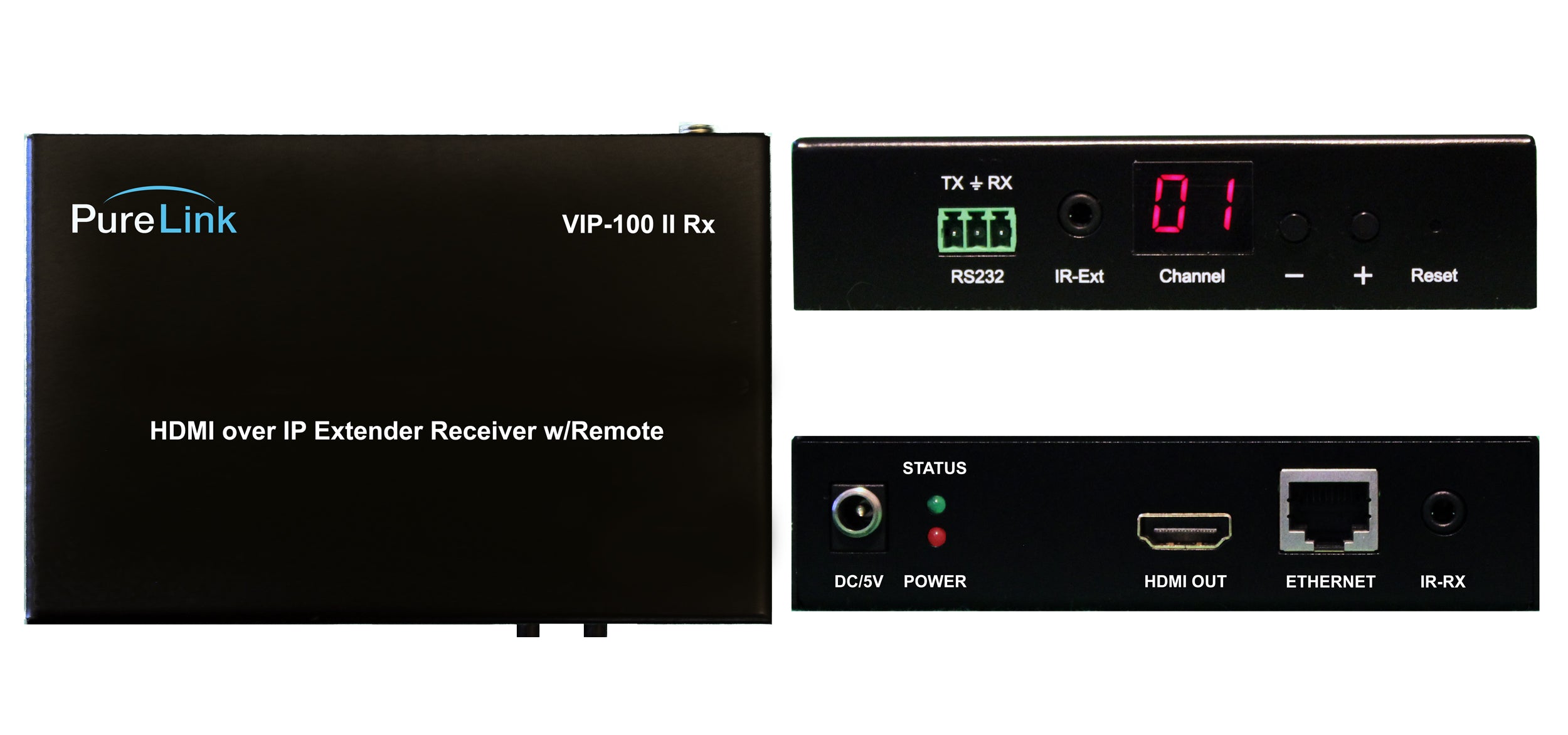

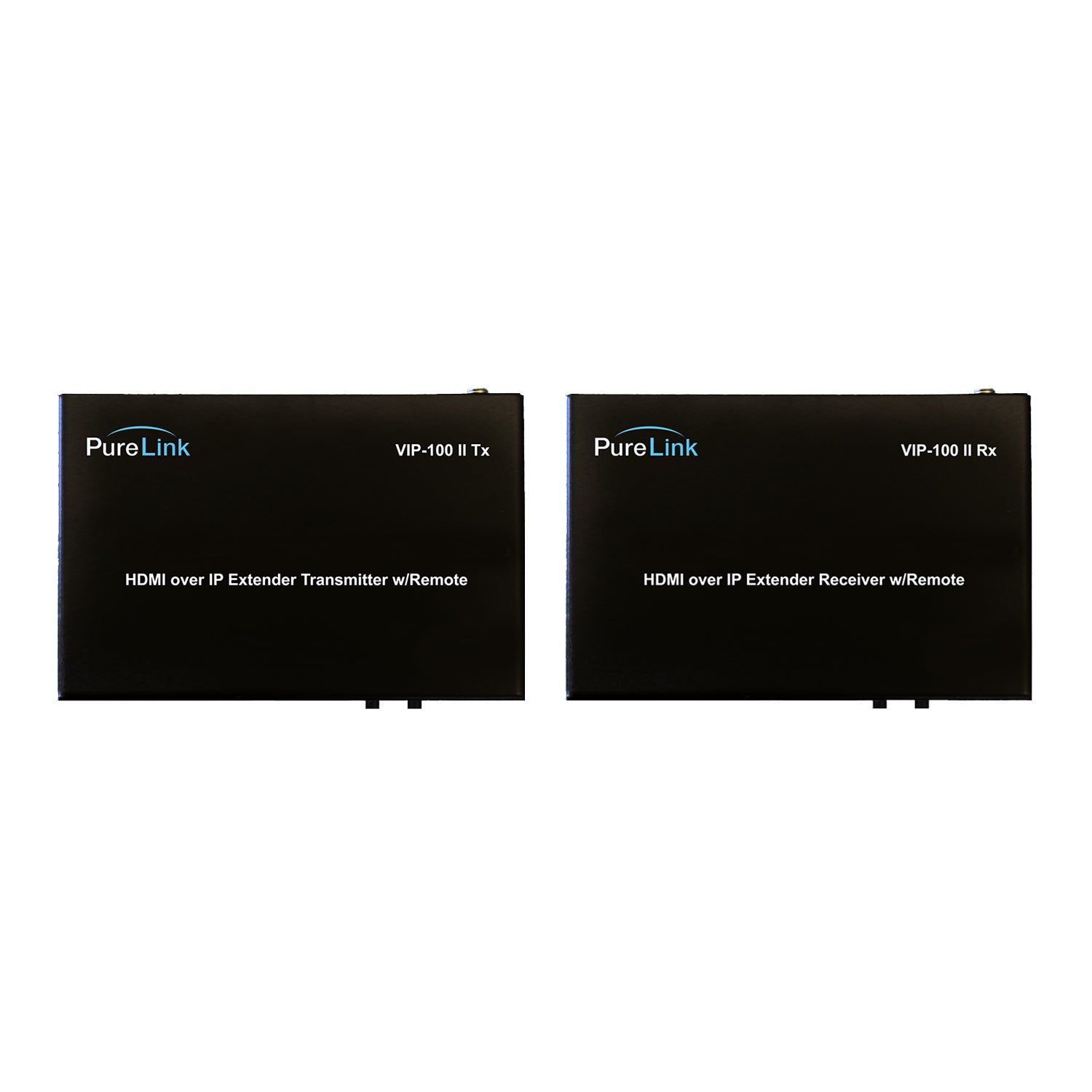

The VIP-EXT-100-2 1080P HDMI & USB/KM over IP Extension System provides Full HD video, audio, RS-232, and IR signal extension, point to point, with or without a network. The Transmitter can be connected to a Receiver supporting distances up to 120 meters, or through a network switch, effectively doubling the extension distance up to 240 meters.  Video over IP extension, when utilized on a network, allows you to convert your extension system at any time to distribution, switching, or matrix routing, a major advantage of Video over IP opposed to other technologies.

Key Features

• Transmitter and Receiver enclosures – powered locally or by PoE 802.3af
• Full HD – 1080P60 extension
• Extend up to 120 meters TX direct to RX, or 240 meters TX to network switch to RX
• Extend video, and stereo audio
• Extend RS232, and Infrared
• Convert extension system to a distribution, switching, or matrix system with additional Tx/Rx units
• H.264 codec: =< 15mbps data rate, 390mS latency

Specifications
