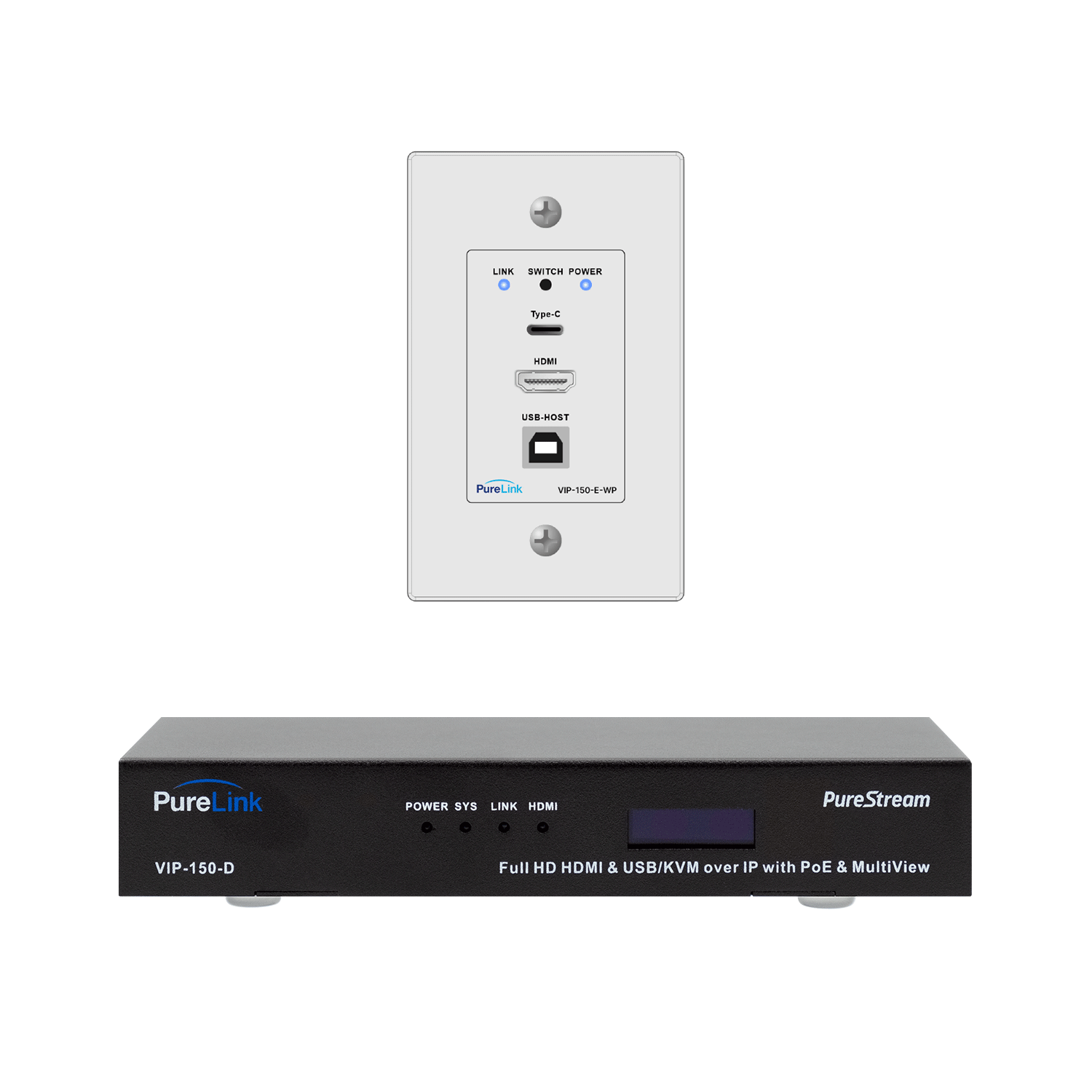

The VIP-EXT-150-2 combines the VIP-150-E-WP wallplate encoder and VIP-150-D decoder into a complete Full HD USB-C/HDMI and USB/KVM over IP extender set. Connect a compatible USB-C laptop or HDMI source directly at the wall, switch seamlessly between inputs, and extend video, audio, USB, IR, and RS-232 while PoE reduces power cabling and keeps installations clean. Options are available to charge your laptop when connected to the USB-C port on the wall plate encoder.

Built for more than basic point-to-point extension, the VIP-EXT-150-2 can grow into a larger VIP-150 AV over IP system as distribution needs expand. Route sources across multiple displays, create multiview layouts with up to four streams per decoder, build video walls up to 10×10, and scale from a single extension path to large matrix environments. H.264/H.265 encoding keeps bandwidth requirements efficient across 1Gb network infrastructure.

PureLink's iCON™ and iCON™ Lite platforms bring source routing, multiview configuration, and system management into an intuitive control environment. USB 1.1/2.0 extends keyboard, mouse, and peripheral connectivity, while audio embedding and extraction, bidirectional IR and RS-232, TCP/IP-to-RS-232 conversion, and detailed API diagnostics give users flexible control and visibility across both standalone and larger distributed AV systems.

Key Features

• Complete wallplate extender set with VIP-150-E-WP encoder and VIP-150-D decoder
• Connect USB-C laptops or HDMI sources directly at the wall
• Deliver Full HD video up to 1080p60
• Carry video, audio, data, and Power Delivery charging through the USB-C connection
• Switch seamlessly between USB-C and HDMI inputs
• Fit source connectivity into a compact 1-gang wallplate design
• Reduce local power cabling with PoE (IEEE 802.3af)
• Start with point-to-point extension and scale into a larger VIP-150 AV over IP system
• Create multiview layouts with up to four streams per decoder
• Build video walls up to 10×10
• Route up to 999 sources across as many as 65,000 displays
• Use H.264/H.265 encoding for efficient video transport over 1Gb networks
• Switch instantly between sources operating at the same resolution
• Extend USB 1.1/2.0 for remote keyboard, mouse, and peripheral connectivity
• Embed analog 2-channel audio at the wallplate encoder and extract audio at the decoder
• Extend bidirectional IR and RS-232 control
• Convert TCP/IP commands to RS-232
• Monitor device discovery, signal data, and EDID information through API diagnostics
• Control systems through PureLink iCON™, iCON™ Lite, or third-party API integration


Specifications

VIP-150-E-WP Full HD HDMI & USB/KVM over IP with PoE & MultiView – USB-C / HDMI Wallplate Encoder

VIP-150-D Full HD HDMI & USB/KVM over IP Decoder with PoE & Multiview
