The HDTools™ UHD-Scaler-FC accepts a wide range of input resolutions, from 480i up to 4K@60Hz 4:4:4, and output resolutions of up to 4K@60Hz 4:4:4 (with digital and analog audio extraction). It provides one HDMI input and one HDMI output and automatically scales any input signal to match the native resolution of the display, or any connected HDMI device. The output can also be manually set to a specific resolution if desired. The scaler supports a data rate of up to 18 Gbps with 4K60 4:4:4 color format (HDMI 2.0). It also features front panel buttons, an OSD (on screen display) menu, as well as RS-232 control. PureLink's UHD-Scaler-FC is ideal for HD/Full HD/Ultra HD 4K interoperation environments that have either mismatched resolutions or that are experiencing EDID or HDCP version issues.

Key Features

• HD to Full HD/Ultra HD upscaling up to 4K@60Hz 4:4:4 resolutions
• Ultra HD to Full HD/HD downscaling to 1024x768@60Hz
• Supports input & output resolutions from 480i up to 4K@60Hz 4:4:4
• HDCP 2.2 compliant
• Supports 25/30/50/60Hz frame conversion
• Automatically scales any input signal to match the native resolution of the display or connected HDMI device
• Manually set output to a specific resolution
• Supports data rates of up to 18 Gbps
• Automatic output picture adjustment including aspect ratio

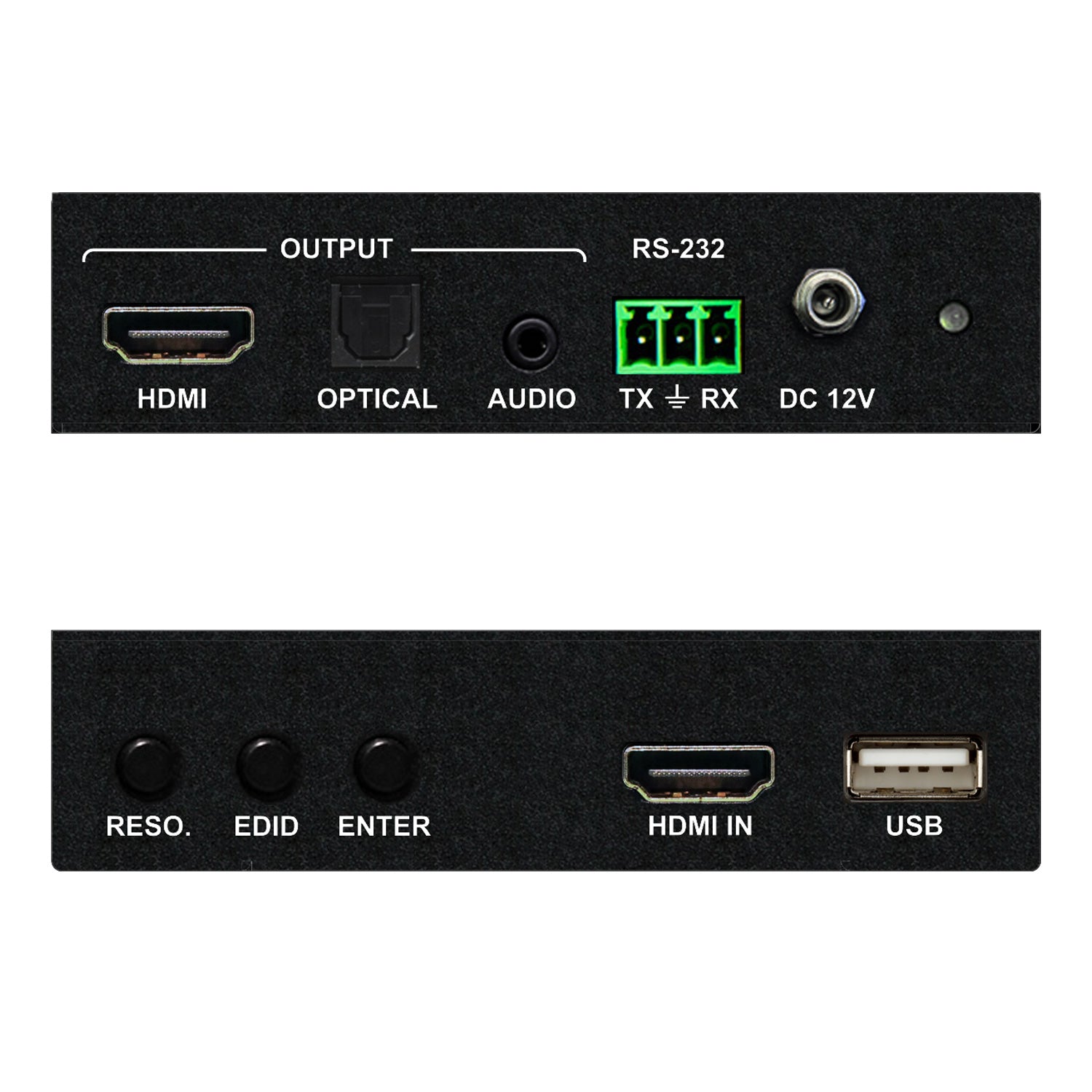

• Front panel, OSD (on screen display) menu, and RS-232 control
• Supports HDMI audio extraction via optical digital audio and 3.5mm analog audio
• CEC pass-through
• Supports USB firmware update

Specifications
