| Performance |
|
| Resolutions |
Up to 4K@50/60Hz (YUV 4:4:4), 4K@30Hz, 1080p@120Hz, and 1080p 3D@60Hz |
| HDCP Compliance |
HDCP 2.2 and HDCP 1.4 |
| Compliance |
HDMI 2.0b |
| Video Bandwidth |
18 Gbps |
| Color Space |
RGB/YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth |
10-bit, 12-bit |
| Supported HDMI Audio Formats |
LPCM 2.0/5.1/7.1-channel, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Optical Audio Formats (Pass-Through) |
LPCM 2.0-channel, LPCM 5.1-channel, Dolby Digital 2.0/5.1-channel, DTS 2.0/5.1-channel |
| L/R Audio Formats |
2-channel analog stereo |
| Power Consumption |
1.25W max |
| Power Supply |
Input: 100–240VAC, 50/60Hz; output: DC 5V/1A; US/EU standards, CE/FCC/UL certified |
| Operating Temperature |
32° to 104°F / 0° to 40°C |
| Storage Temperature |
-4° to 140°F / -20° to 60°C |
| Relative Humidity |
20–90% RH, non-condensing |
| MTBF |
50,000 hours |
| ESD Protection |
Human body model: ±8kV air-gap discharge, ±4kV contact discharge |
Connections |
|
| Inputs |

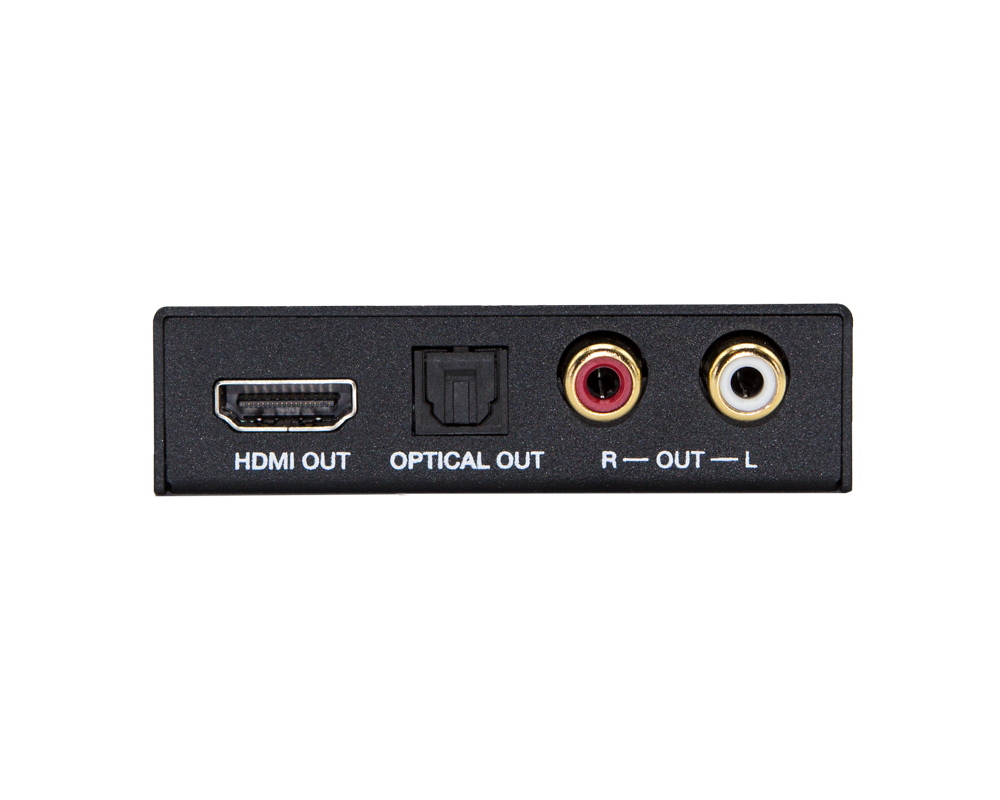

1 × HDMI Type A, 19-pin female |
| Outputs |
1 × HDMI Type A, 19-pin female; 1 × L/R audio output via RCA; 1 × Optical output via S/PDIF |
Enclosure |
|
| Enclosure Type |
Metal |
| Product Dimensions |
2.9 × 2.4 × 0.8 in / 73.5 × 60.7 × 20 mm |
| Product Weight |
0.3 lbs / 135 g |
| Product Dimensions |
12.21 × 7.09 × 2.76 in / 310 × 180 × 70 mm |
| Product Weight |
7.7 lbs / 3.5 kg |
Warranty |
|
| Warranty |
5 Years |
