The SC-HS2 provides reliable, lossless HDMI to SDI format conversion for professional AV and broadcast applications. Processing native resolutions up to 1080p60, SC-HS2 converts HDMI signals to SD-SDI, HD-SDI, or 3G-SDI, ensuring broad compatibility across legacy and modern SDI workflows.
Featuring a 3 Gbps serial link interface, the SC-HS2 maintains high signal integrity while boosting transmission reliability over long distances. With its small footprint, low power consumption, and high-quality video and audio transport, the SC-HS2 offers an ideal solution for broadcast, live production, monitoring, and professional AV environments requiring dependable HDMI to SDI conversion.
Key Features
- Converts HDMI signals to SD-SDI, HD-SDI, or 3G-SDI
- Processes Full HD resolutions up to 1080p60
- 3 Gbps serial link for reliable SDI transmission
- High-quality, lossless video and audio transport
- Compatible with HDMI 1.3
- Compact form factor for easy integration
- Low power consumption for continuous operation
Specifications
| Standards & Compliance |
|
| Signal Standards |
HDMI 1.4, 3G-SDI
|
Connector Type
|
|

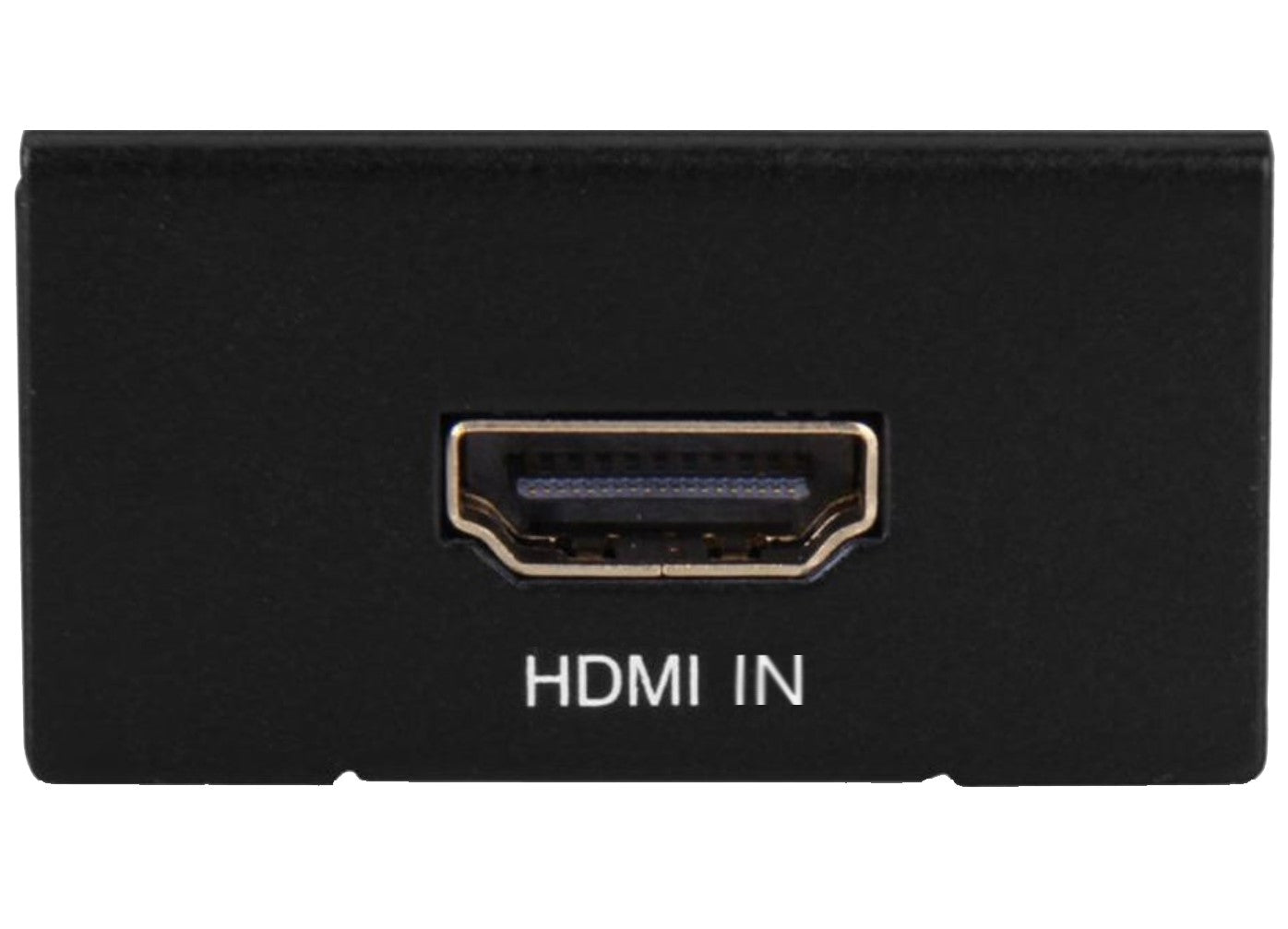

| HDMI Input |
1 × HDMI IN (Type A, 19-pin female) |

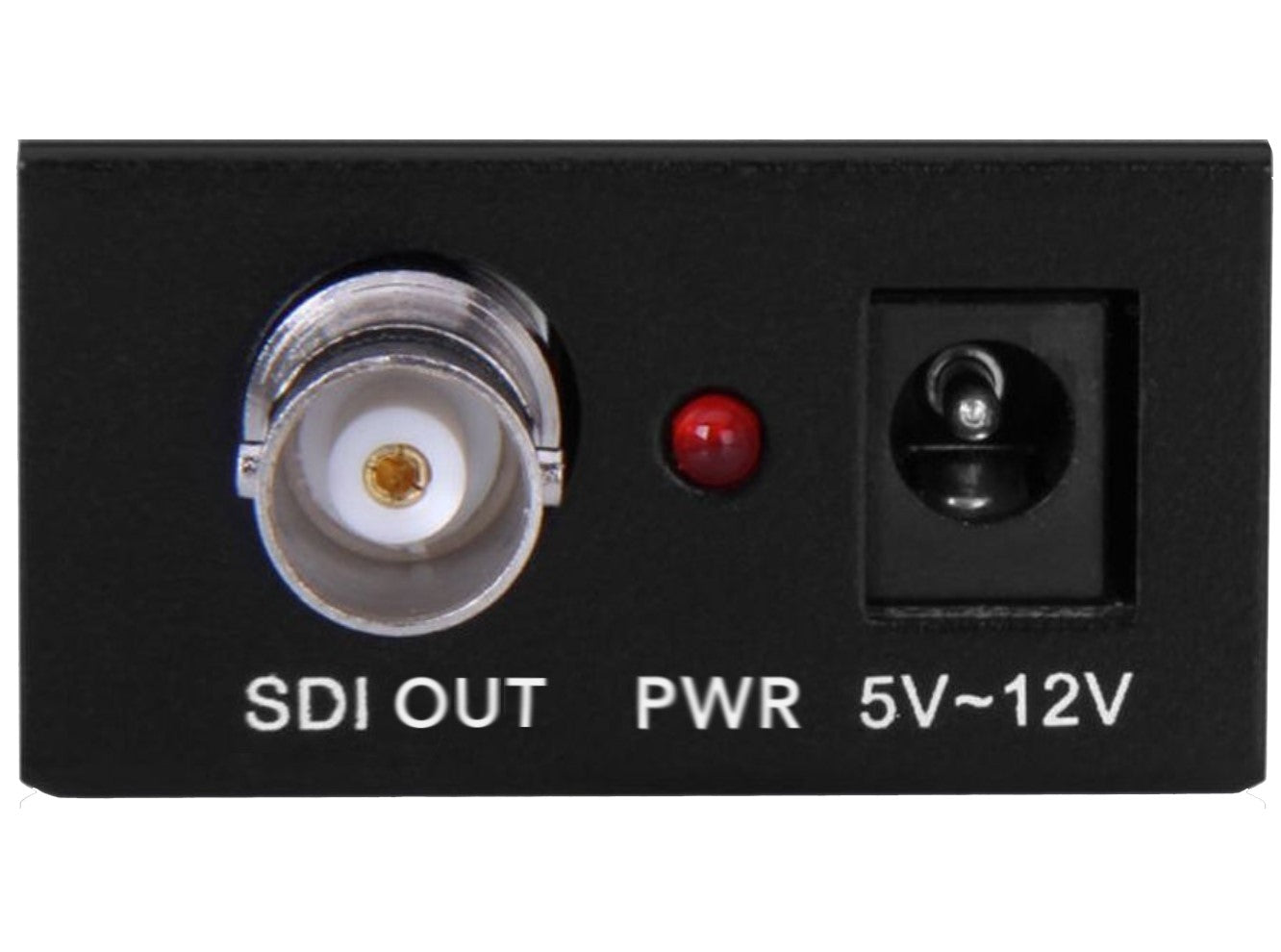

| HDMI Output |
1 × BNC (SDI/HD-SDI/3G-SDI) |
Performance
|
|
| Max Video Resolution |
1920×1080p60 |
| SDI Transmission Rates |
2.970 Gbps and 2.970/1.001 Gbps |
| ESD Protection |
IEC 61000-4-2 (±8 kV air-gap), IEC 61000-4-2 (±4 kV contact)
|
Power
|
|
| Power Input |
DC 5V-12V/1A |
Environment
|
|
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Storage Temperature |
-4 to 140°F / -20 to 60°C |
Enclosure
|
|
| Product Dimensions (W × D × H) |
3.15 in × 1.61 in × 0.98 in (80mm × 41mm × 25mm) |
| Weight |
0.33 lbs (150g) |
Warranty
|
|
| Parts |
3 year |
| Labor |
3 year |
