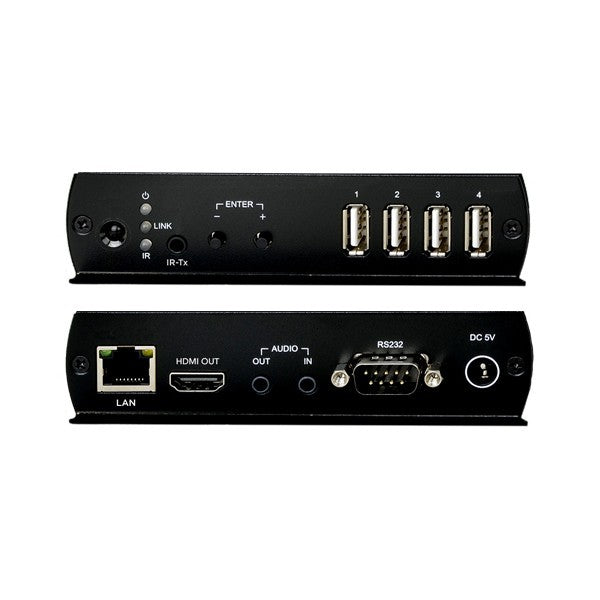

The PureStream™ VIP-200H II HDMI & USB/KM over IP Extension System offers 1080p signal distribution over the network with enhanced features including video wall processing, built-in scaling functionality, and faster switching speeds. Local and remote units can be connected together for point-to-point extension over distances up to 492 ft (150 meters), as well as a point-to-many, many to point, matrix connectivity and up to an 8x8 video wall using the VPX IP Video Management Software.
Key Features
- Full HD/1080p60 support
- HDCP 1.4 compliant
- Video wall processing (up to 8x8 configuration)
- Built-in scaler (Rx) - pass through or lock output resolutions
- Rs-232 extension/steerable distribution
- USB 2.0 Keyboard/Mouse Extension
- Audio insertion and extraction
- Bi-directional RS-232 and IR control
- Loop-out on encoder
- Point to point, Distribution, Switching, and Matrix systems
- Compatible with VPX IP Video Management Software
Specifications
| Performance |
|
| Supported Distance |
Up to 492 ft / 150 m |
| Supported Resolutions |
Up to 1080p, 1920 × 1200@60Hz |
| Compliance |
HDCP 1.4 |
| Supported Audio Formats |
Up to 7.1 LPCM 192kHz, Dolby TrueHD, DTS-HD Master Audio |
| IR Receiver (Internal) |
20–60kHz, ±45°, 5 m |
| IR Emitter (External) |
3.5mm stereo phono jack, 20–60kHz, ±45°, 5 m |
| Power Supply |
DC 5V/2000mA |
Connections |
|
| Inputs |
1 × HDMI Type A, 1 × 3.5mm stereo phone jack (Line In), 1 × USB 2.0 Type B, 1 × RS-232 DB9 female |
| Outputs |
1 × HDMI Type A, 1 × 3.5mm stereo phone jack (Line Out), 1 × Gigabit RJ45 |
Power |
|
| Power Supply |
DC 12V/5A, 20W |
Enclosure |
|
| Product Dimensions |
5.51 × 4.92 × 1.18 in |
| Product Weight |
0.84 lbs |
Warranty |
|
| Warranty |
3 Year |
