| Standards & Compliance |
|
| Signal Standards |
HDMI 2.0b |
Distribution Amplifier Connector Types
|
|
| HDMI Inputs |
1 × HDMI IN (Type A, 19-pin female) |
| HDMI Outputs |
1 × HDMI OUT (Type A, 19-pin female) |
| HDBaseT Out |
4 × LAN (RJ45) |
| IR In |
Analog Stereo (L/R 3.5mm TRS) |
| IR Out |
Analog Stereo (L/R 3.5mm TRS) |
| Service |
1 × 3.81mm 3-pin Phoenix |
| Coaxial Audio |
1 × RCA |
| Balanced Analog Audio |
1 × 5-pin Phoenix |

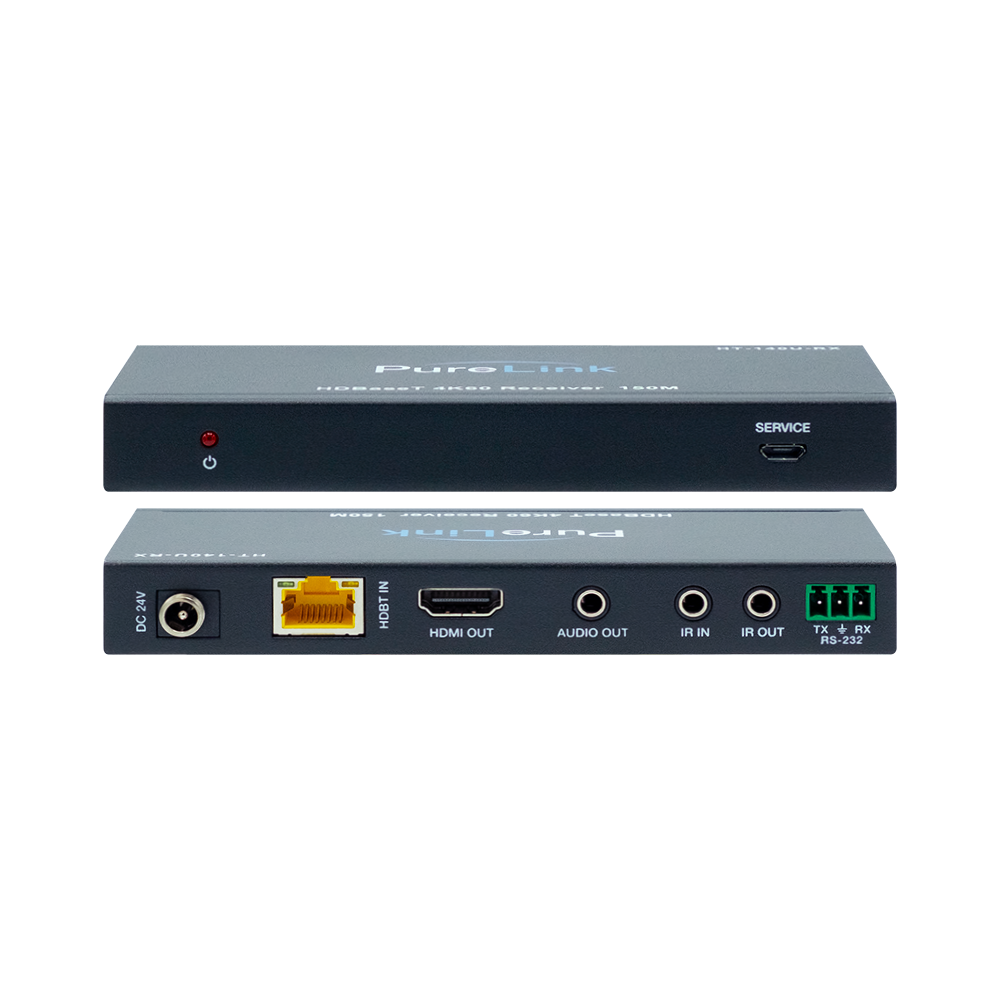

HDBaseT Receiver Connector Types
|
|
| HDMI Outputs - RX |
1 × HDMI OUT (Type A, 19-pin female) |
| HDBaseT In - RX |
1 × LAN (RJ45) |
| IR In - RX |
1 × 3.5mm TRS |
| IR Out - RX |
1 × 3.5mm TRS |
| Service - RX |
1 × Micro USB |
| RS-232 - RX |
1 × 3-pin Phoenix |
| Audio Outputs - RX |
1 × 3.5mm TRS |
Performance
|
|
| CATx Transmission Distance |
4K2K@60: 150m |
| HDMI Transmission Distance |
4K@60: 5m, 4K@30: 10m, 1080P@60: 15m
|
| Transport |
Transport |
| Max Video Resolution |
Max Video Resolution |
| Video Bandwidth |
Video Bandwidth |
| Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
|
| Color Depth |
8-bit, 10-bit, 12-bit (1080p@60Hz), 8-bit (4K2K@60Hz YUV4:4:4), 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0)
|
| HDR |
HDR 10 , HDR 10+, HLG, Dolby Vision
|
| HDCP |
HDCP 2.2 |
| Dolby Vision |
Dolby Vision |
| RS-232 Support |
Yes |
| ESD Protection |
Human body model — ±8kV [air-gap discharge] & ±4kV [contact discharge] |
| IR |
Bi-directional |
| Cable Type (CatX) |
CAT 5e, CAT 6, CAT 6a, CAT 7
|
| HDMI Audio Formats |
LPCM, Up to 7.1 channels 192 KHz, Dolby Digital Plus, Dolby TrueHD, DTS-ES, DTS-X, DTS HD-HRA, Dolby Digital, DTS-HD Master Audio, DTS-EX, DTS-HD
|
| Coax Audio Formats |
PCM 2.0, DTS 2.0 / 5.1, Dolby Digital Plus, Dolby Digital
|
| Optical Audio Format |
PCM 2.0Ch |
Power Distribution Amplifier
|
|
| Power Input |
DC 24V/1A |
| Power Supply |
AC 100 - 240V 50/60Hz |
Power Receiver
|
|
| Power Input - RX |
DC 24V/1A |
| Power Supply - RX |
AC 100 - 240V 50/60Hz |
Enclosure
|
|
| Product Dimensions (W × D × H) |
Matrix: 8.66 in × 5.12 in × 1.57 in (220mm × 130mm 40mm), RX: 5.51 in x 2.56 in x 0.71 in (140mm × 65mm × 18mm)
|
| Weight |
Matrix: 1.8 lbs (853kg), RX: .05 lbs (246g)
|
Warranty
|
|
| Parts |
3 year |
| Labor |
3 year |
