The HTX II-8800 provides independent switching of 8 Ultra HD/4K sources to 6 remote destinations via HDBaseT™ with HTX II receivers, sold separately, and 2 local destinations via HDMI. The HTX II-8800 also features a built-in independent audio matrix with 16 audio outputs, including 8 audio breakouts, 6 HDBaseT™ outputs, and 2 HDMI outputs, as well as 22 audio inputs, including 8 HDMI inputs, 8 ARC audio inputs, and 6 external audio sources, with volume, mute, and delay adjustment.

The HTX II-8800 is HDCP 2.2 compliant and offers PoC support on all HDBaseT outputs.

Couple the HTX II-8800 with our iCON Control System for easy implementation of video, audio, IR, and RS232 matrixing and control of your space.

• HDMI 2.0b (18Gbps), HDCP 2.2, HDCP 1.4, and DVI compliant

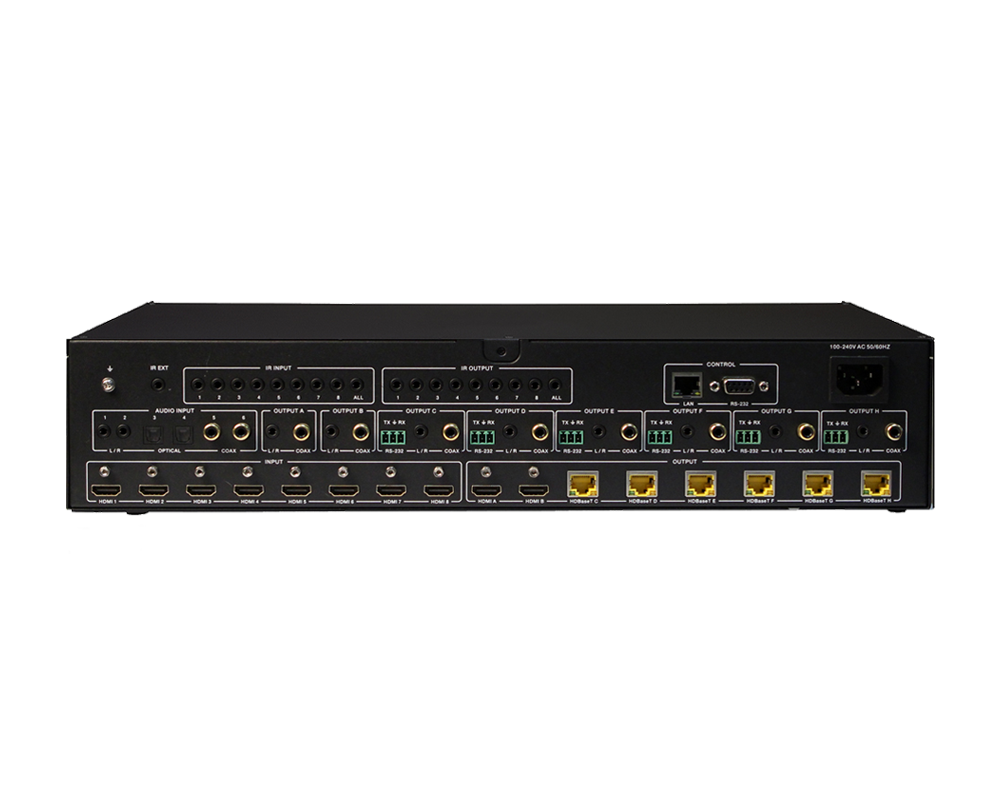

• (8) HDMI inputs, (6) HDBaseT outputs, and (2) independent HDMI outputs
• Resolutions up to 4K60 4:4:4 on all HDMI ports
• 4K60 4:4:4 to 4K60 4:2:0 conversion for all HDBaseT outputs
• Distances up to 330 ft. (100 m) via CATx
• Pass-through audio up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
• Built-in independent audio matrix with Volume, Mute, and Audio delay for lip-sync adjustment (LPCM only)
• HDR, ARC, CEC and smart EDID management supported
• 24V PoC on all HDBaseT ports
• Control via on-panel Button, IR, RS-232, LAN and Web GUI
• 1RU rack-mounted design with aluminum front panel housing
