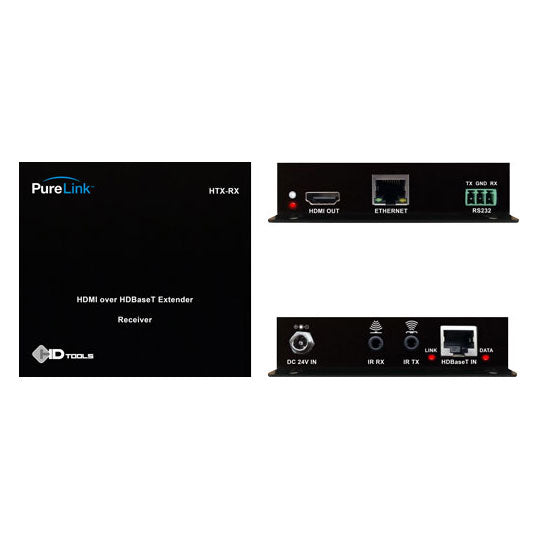

Designed as a simplified extension solution for the HTX-8800-U/4400-U matrix switchers, the HTX Rx 4K HDMI over HDBaseT Extender Receiver provides an accessible, easy-to-install solution for extending Ultra HD/4K HDMI video and embedded audio over long distances using a single CATx cable. The HTX Rx supports full 3D content and extends uncompressed HDMI video and embedded lossless audio formats with bi-directional control signals (IR) up to 330 ft. at Ultra HD/4K resolutions. Using POE technology, the HTX Rx can draw power from the HTX matrix chassis, eliminating the need for additional power supplies.
- Supports distances up to 330 ft. (100m)
- HDMI v1.4b uncompressed video/audio up to 10.2 Gbps
- Receives PoE from HTX-8800/4400 matrix switchers
- Bi-directional IR and RS232
- LED indicators for HDMI and HDBaseT signal status
- Supports HD multichannel audio including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM (up to 192kHz)
- Compact enclosure enables discreet installation behind displays
- Ethernet port for easy third party device networking
Specifications
| Performance |
|
| Supported Distance |
Up to 330 ft. |
| RS-232 |
Yes |
| LAN |
Yes |
| Power Supply |
100–240VAC, 50/60Hz |
| Power Injection for CATx Extenders |
Enabled |
| Operating Temperature |
32° to 117°F / 0° to 47°C |
| Storage Temperature |
-40° to 158°F / -40° to 70°C |
| Relative Humidity |
0–90% non-condensing |
Enclosure |
|
| Product Dimensions |
4 × 4 × 0.9 in |
| Product Weight |
0.5 lbs |
| Product Dimensions |
12.21 × 7.09 × 2.76 in / 310 × 180 × 70 mm |
| Product Weight |
7.7 lbs / 3.5 kg |
Warranty |
|
| Warranty |
Limited Warranty, 3 Years |
