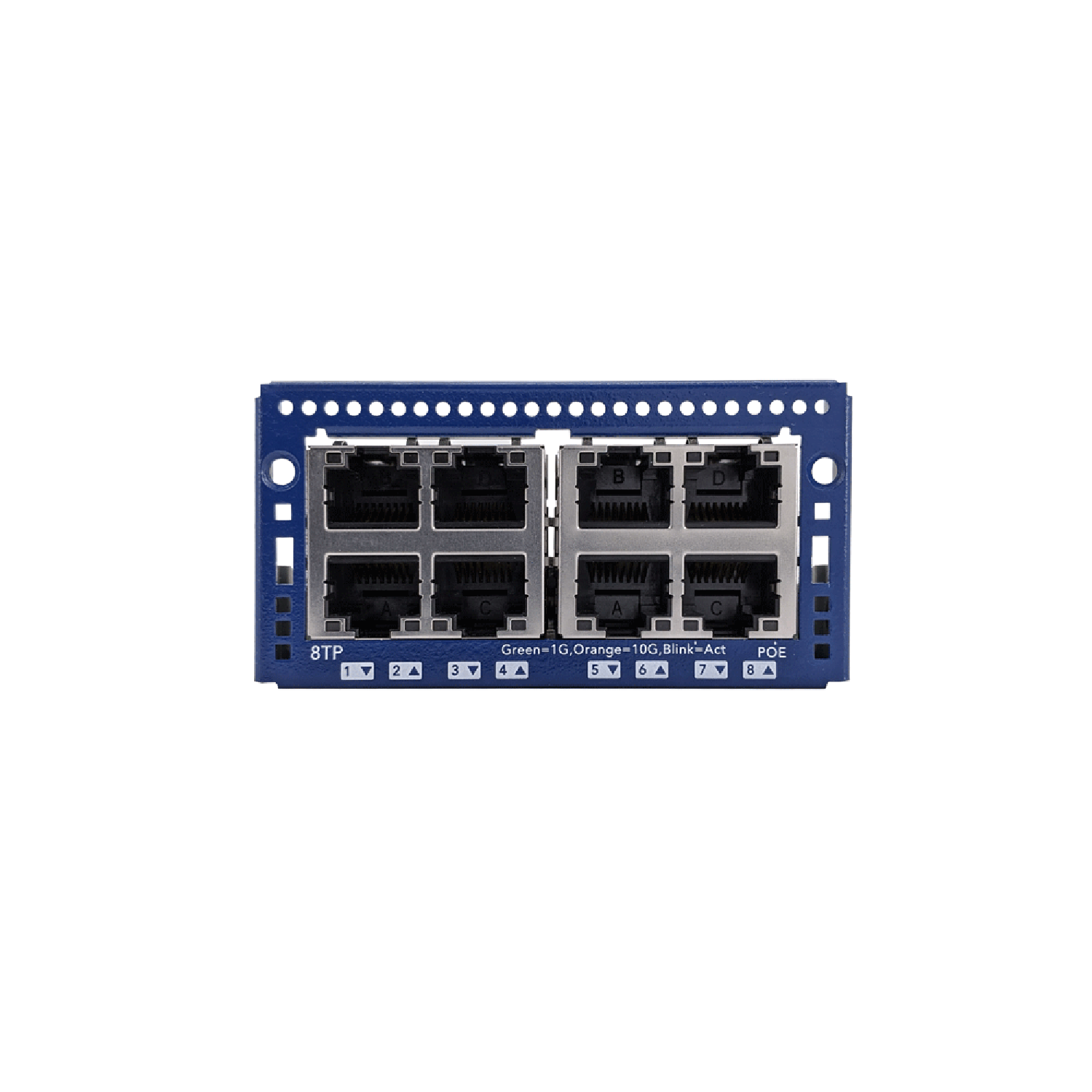

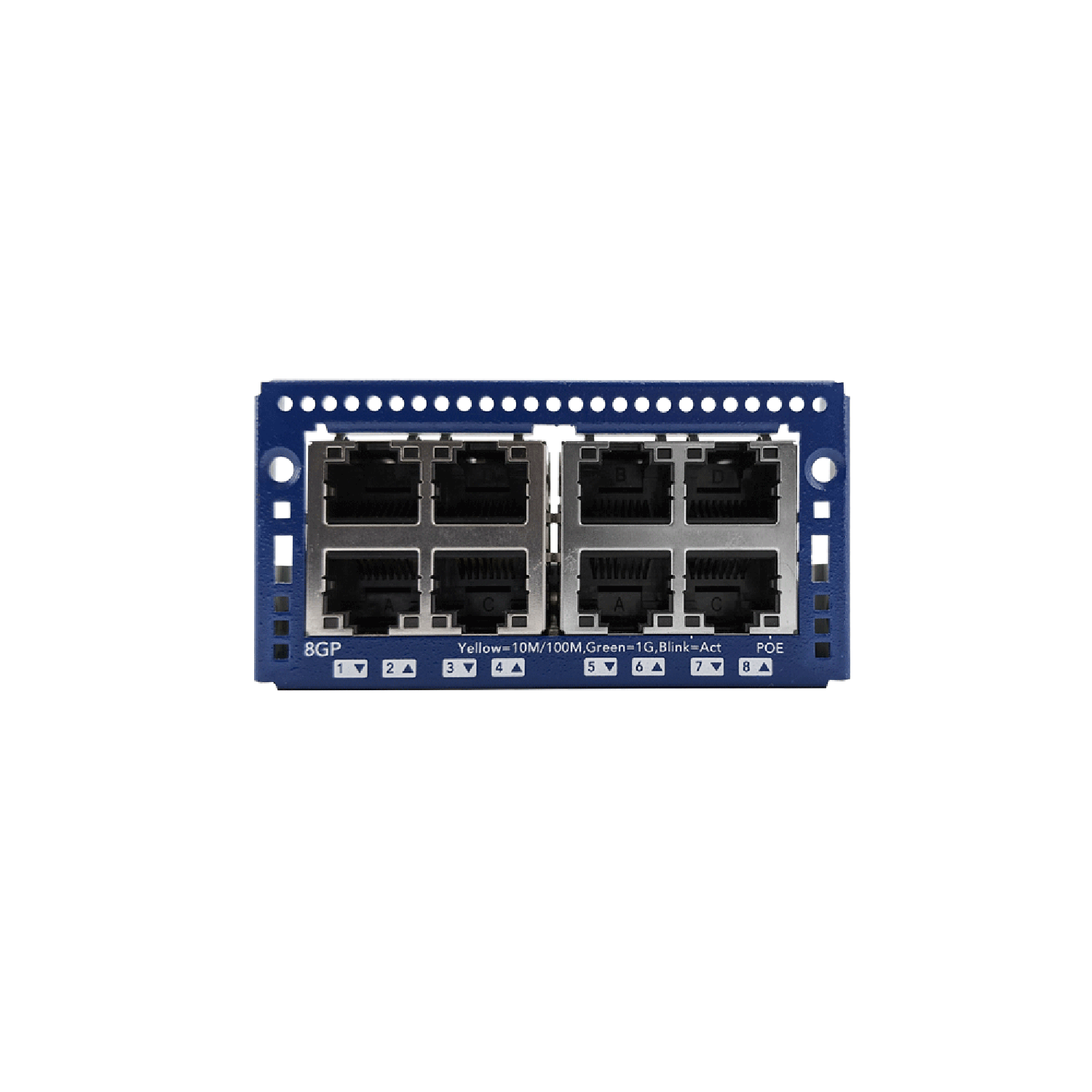

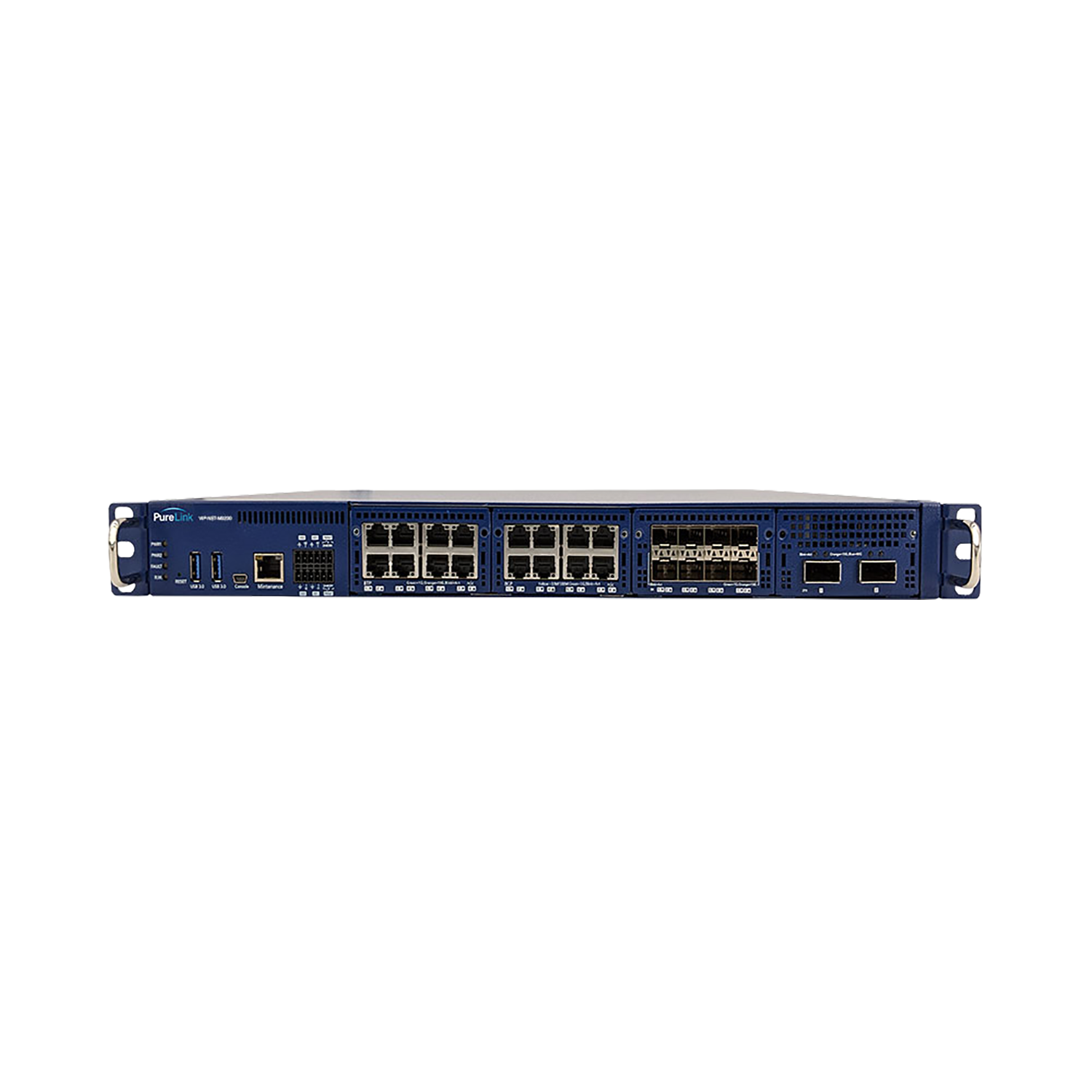

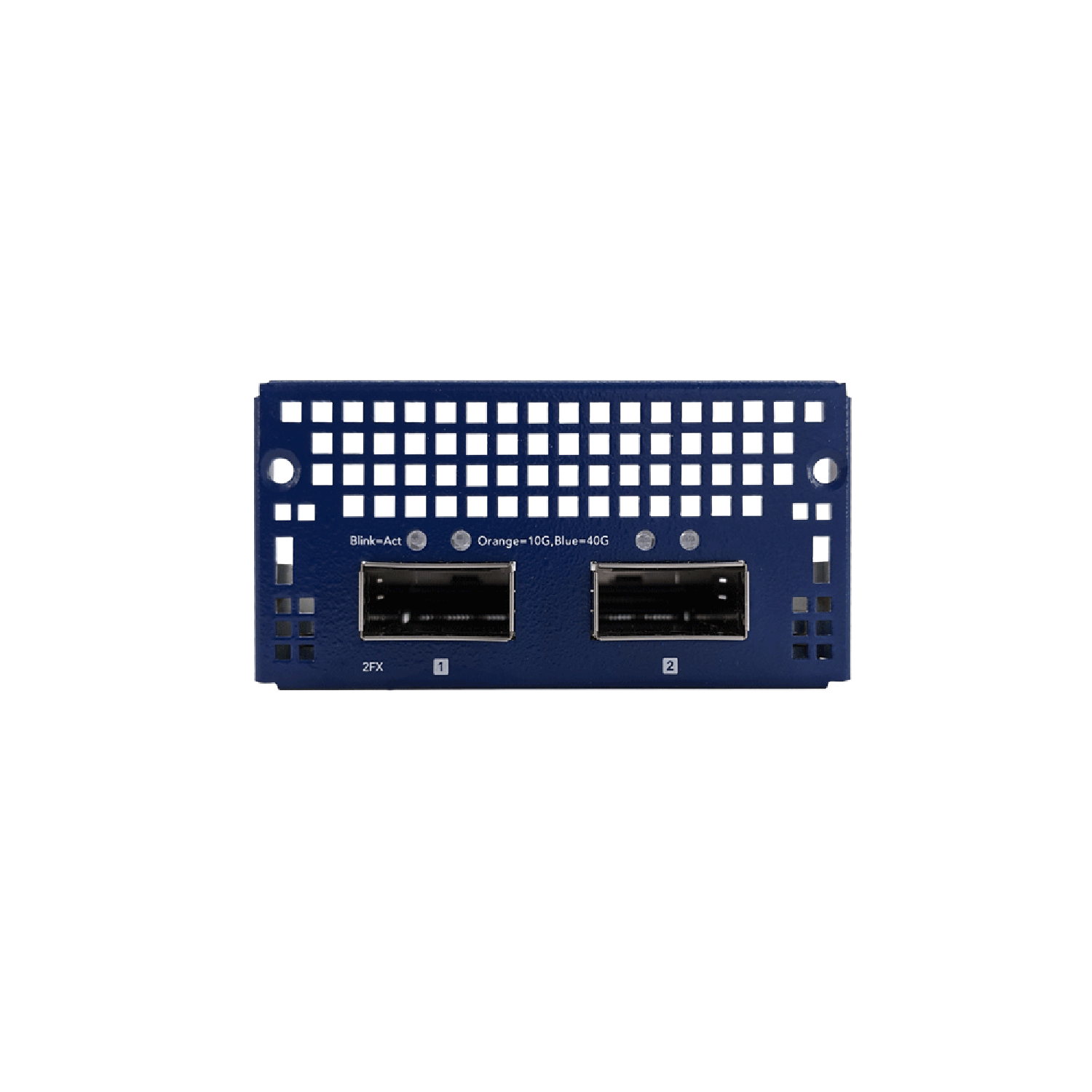

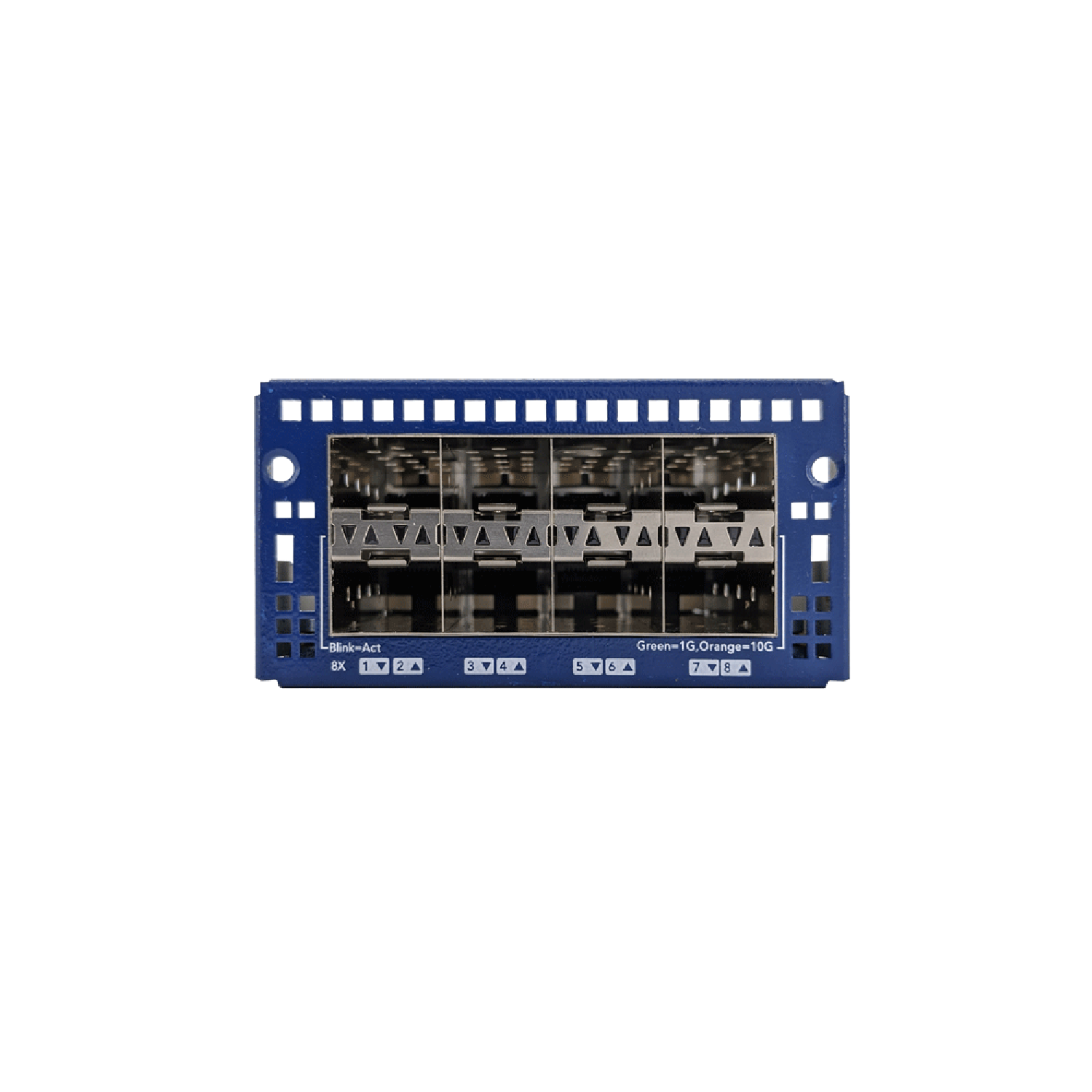

The VIP-NET-M3200 is a video over IP purpose-built high-performance L2+ Ethernet switch w/ PoE+ 802.3af/at per port 30W and provides L2+ wire speed and management functions. With the flexibility of modular slots supporting up to 32 ports, the VIP-NET-M3200 can be populated with 10G RJ45 modules with PoE, SFP+ modules, and 40G QSFP+ modules. The VIP-NET-M3200 delivers ITU G.8032 ring recovery in less than 20ms. With QoS, IGMP v1/v2/v3, and Jumbo Frame, the VIP-NET-M3200 provides smooth and reliable video over IP transport. Security functions including L2/L3 ingress and egress ACL, port-based DHCP server, and MAC-based DHCP server. Also supported is 802.3ad LACP, LLDP and CDP (Cisco Discovery Protocol) for network scanning.

Key Features

• Maximum 32x10G or 24x10G+2x40G
• Port-based IEEE802.1X authentication
• SNMPv1/v2c/v3 for different levels of network management
• Support LLDP and CDP for network discovery protocols
• Redundant dual AC input power 100V to 240V
• Supports IEEE-1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary**, Peer to Peer Transparent Clock**, End to End Transparent Clock**, Master/Slave mode by each port**
• RMON and MIB II for efficient network monitoring
• Intelligent Auto AV QoS
• IGMP snooping v1/v2/v3, IGMP query and IPv6 MLD snooping v1/v2 for AV network
• Support IEEE802.1Q VLAN, port based VLAN and GVRP
• MSTP up to 16 instances and backward compatible RSTP and STP
• Advanced PoE management functions, such as PD detection, scheduling, and health tracking
• Enhanced ITU G.8032 ring protection. Recovery time less than 20 ms at max 250 switches for single ring
• WEB based management UI via HTTP/HTTPs. Also provide CLI, SSH, and telnet.
• QoS bandwidth control by 802.1p CoS (Class of service) and Di-Serv for ingress and egress, support addition track storm control
• Dynamic IEEE 802.3ad LACP link aggregation and static link aggregation


Specifications
