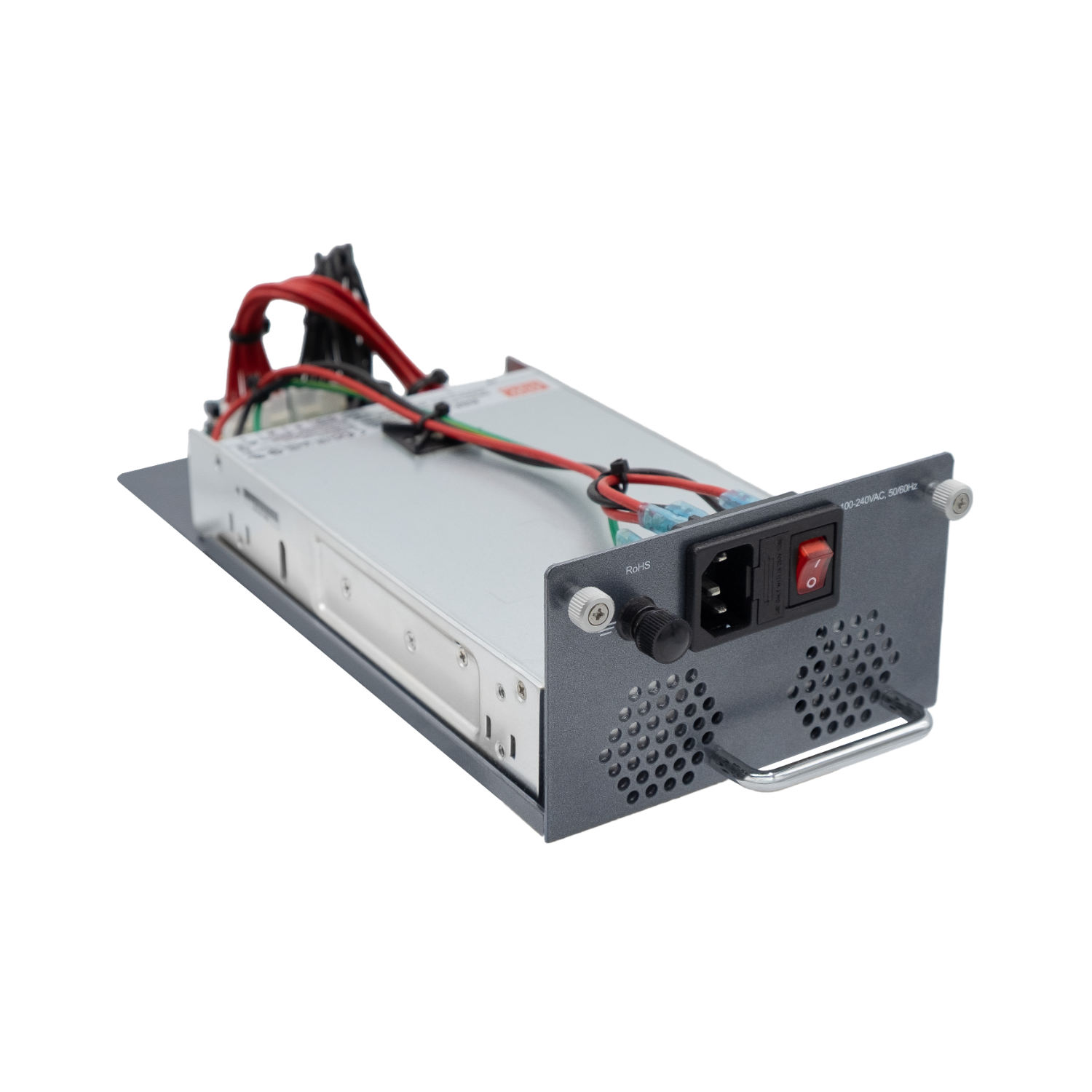

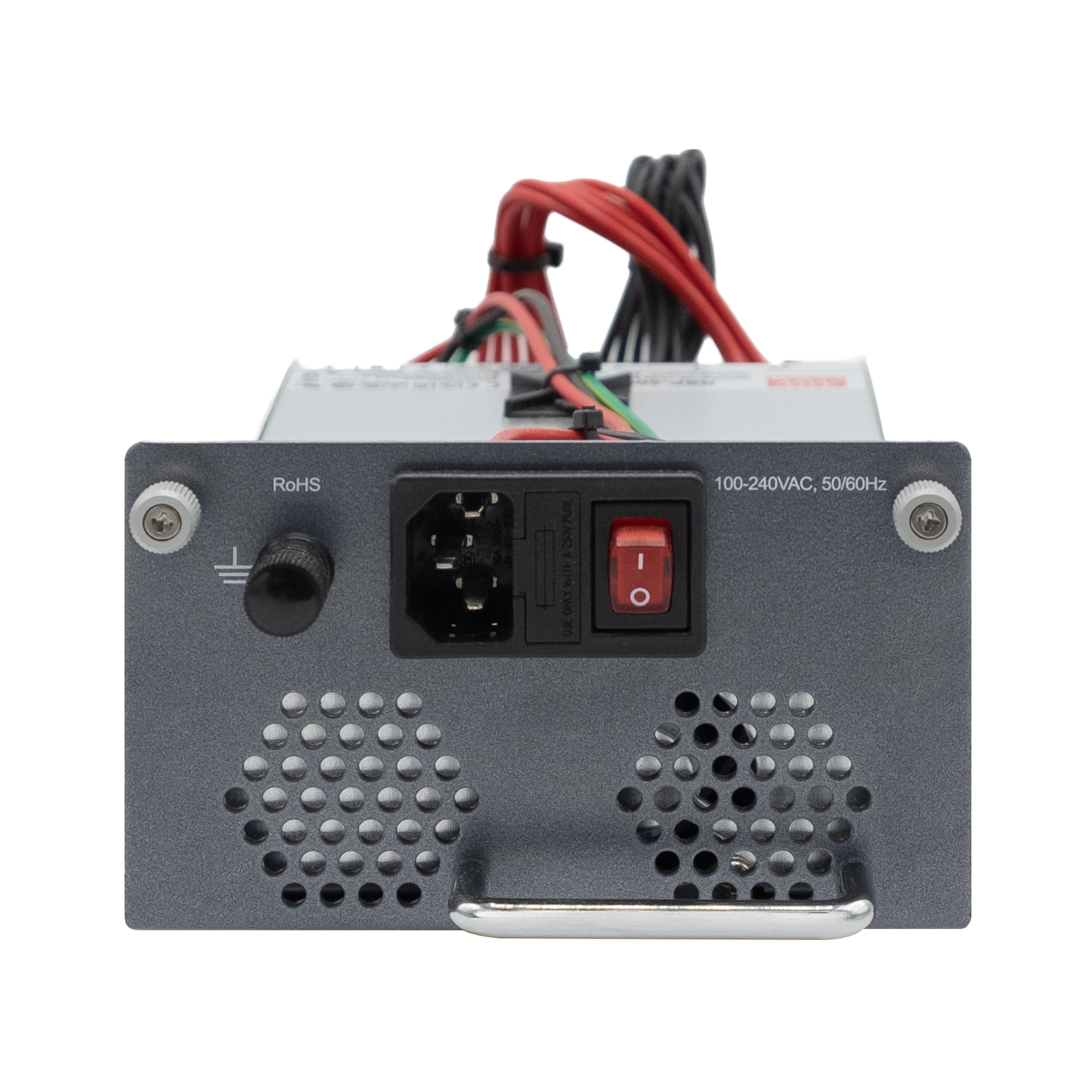

The MAX2-20X-POH-PSU-V2 Modular PoH Power Supply adds Power over HDBaseT (PoH) capability to the MAX2-20X-V2 frame, delivering centralized power to compatible MAX2 HDBaseT extenders through their associated HDBaseT IO cards.

When local power adapters for the MAX2-CTR100 or MAX2-CT100-WP extenders are not desirable, the Modular PoH Power Supply provides PoH for up to 20 HDBaseT inputs and 20 HDBaseT outputs. This keeps extender power centralized at the MAX2 frame and provides the power capacity needed for fully populated HDBaseT configurations.

Key Features

• Adds PoH power for compatible MAX2 HDBaseT extenders
• Designed specifically for the MAX2-20X-V2 matrix frame
• Powers all 20 HDBaseT inputs and all 20 HDBaseT outputs
• When local power supplies are not used, can use this power supply to power up to 40 MAX2 HDBaseT extenders
• Works with MAX2-CIS100-V2 input and MAX2-COS100-V2 output cards
• Centralizes HDBaseT extender power within the MAX2 system
• Provides power capacity for fully populated MAX2-20X-V2 HDBaseT configurations
