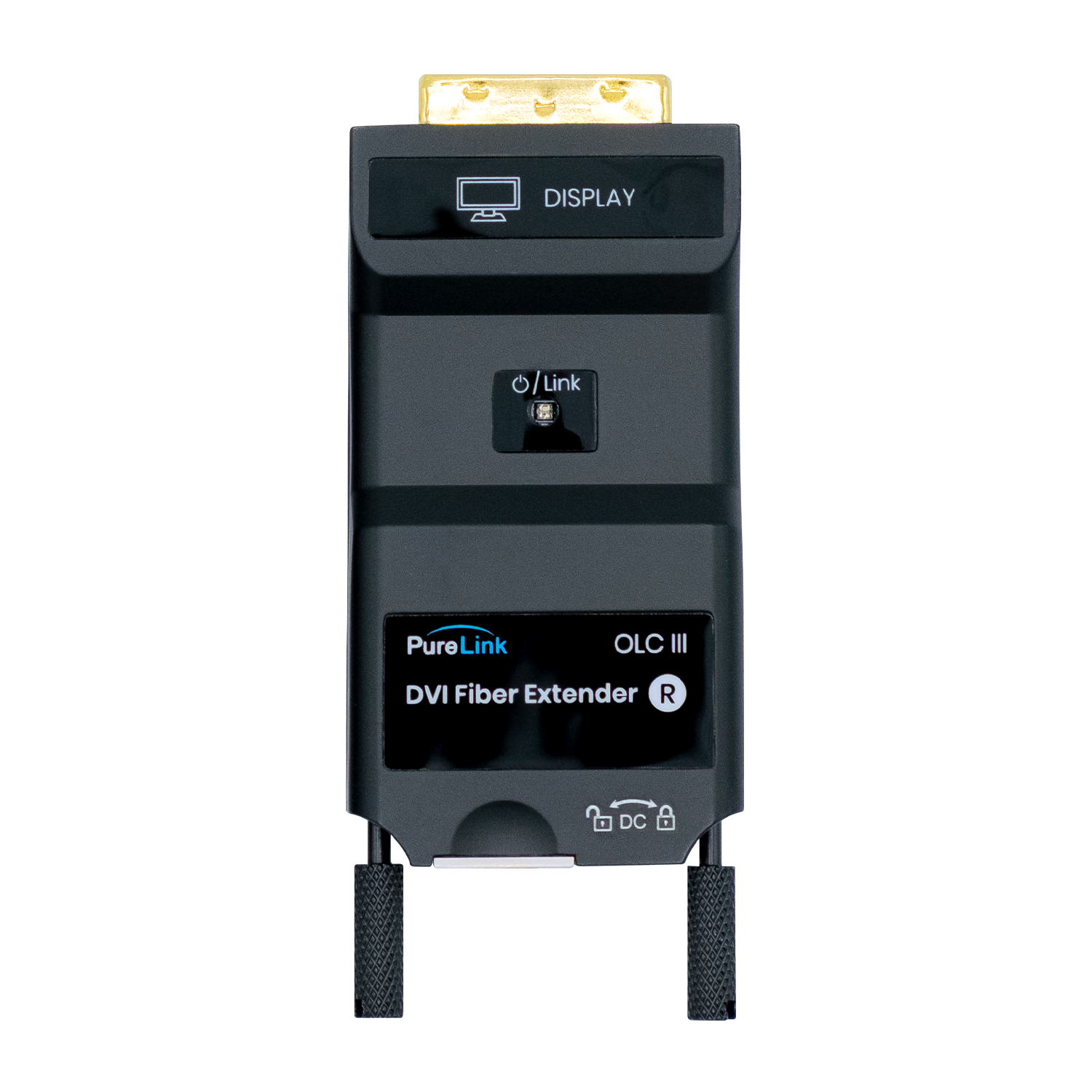

The OLC III Tx/Rx DVI over 1LC Fiber Extension System provides long range extension of DVI over a single strand single-mode or multi-mode, LC-terminated fiber optic cable. The OLC III Extension System’s EDID program provides fast integration and compatibility between input and output devices. Featuring a robust design with detachable transmitter and receiver modules, the OLC III Rx simplifies integration and provides a convenient solution for a variety of installation challenges.
Individual units also available: OLC III Transmitter
Key Features
- Auto detect single or multimode LC Fiber
- Smart EDID management, learns display’s EDID and aligns it with the source
- Transmission distance up to 0.62 mi (1 km) over single-mode fibers
- Transmission distance up to 984 ft (300 m) over multi-mode fiber optic cables
- Resolution up to 1920×1200 60Hz
- HDCP compliant
Specifications
| Standards & Compliance |
|
| Standards |
DVI-D, HDCP 1.4 |
Connections |
|
| Inputs |
1 × LC fiber connector |
| Outputs |
1 × 25-pin DVI-D |
Performance |
|
| Resolutions |
Up to 1920 × 1200@60Hz |
| Power Consumption |
<2W |
| Power Supply |
5V, 1A |
| Operating Temperature |
32° to 131°F / 0° to 55°C |
| Storage Temperature |
-40° to 176°F / -40° to 80°C |
| Relative Humidity |
Up to 95% |
| Transmission Distance |
Up to 3,280 ft / 1 km over single-mode fiber |
Enclosure |
|
| Product Dimensions |
3.5 × 1.54 × 0.6 in / 89 × 39 × 15 mm |
| Product Weight |
0.22 lbs / 101.8 g |
Warranty |
|
| Warranty |
3 Years |
TAA
