| Standards & Compliance |
|
| Signal Standards |
HDMI 1.3, USB 2.0
|
| HDCP |
HDCP 1.4, HDCP 2.2
|
| Regulatory Certifications |
CE, FCC, RoHS
|

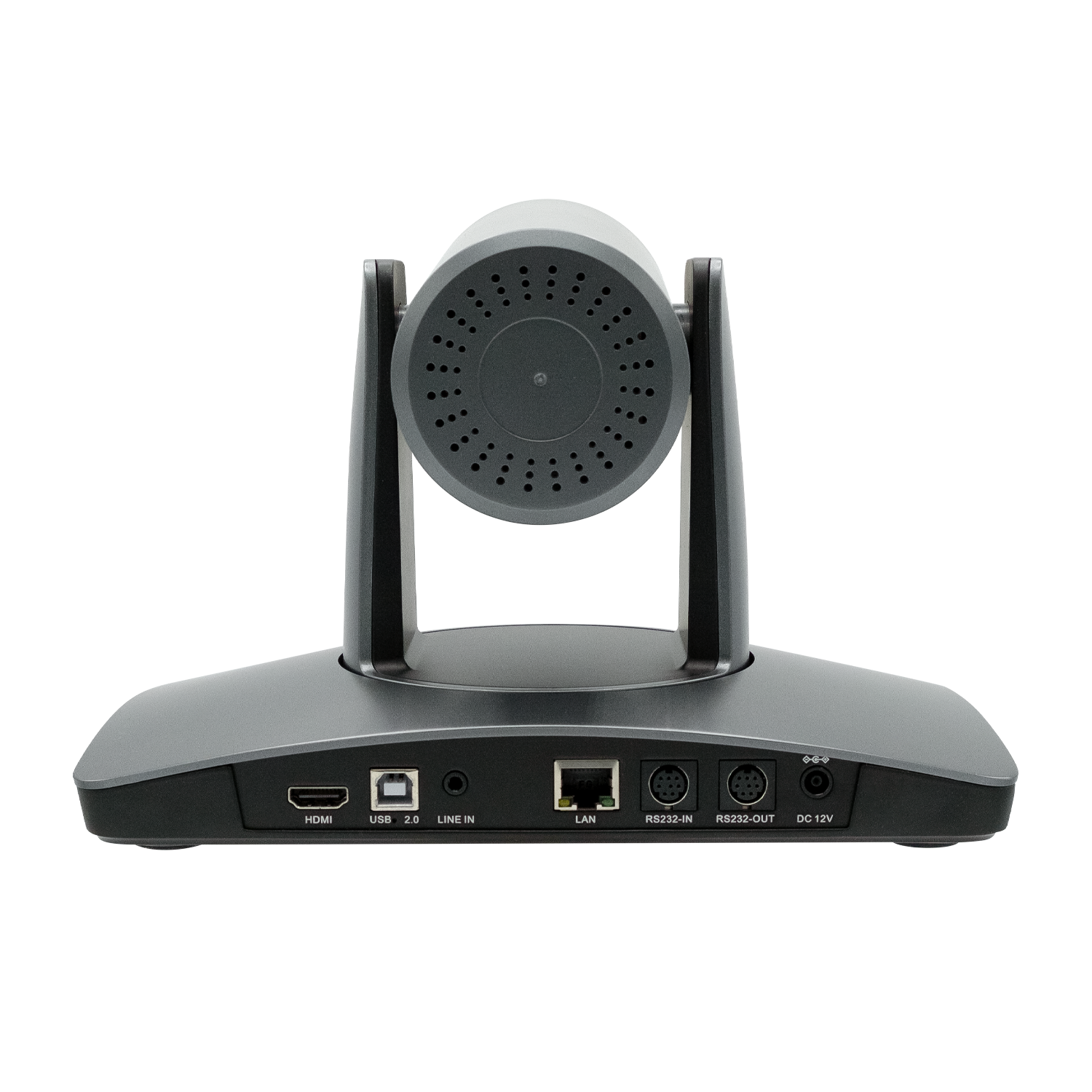

Connector Types
|
|
| HDMI Outputs |
1 × HDMI OUT (Type A, 19-pin female) |
| USB Devices |
1 × USB-B |
| RS232 Input |
1 × 8-pin mini-DIN connector |
| RS232 Output |
1 × 8-pin mini-DIN connector |
| LAN |
1 × RJ45 |
| Line In |
1 × 3.5mm TRS |
Performance
|
|
| Max Video Resolution |
1920×1080p60 |
| PTZ |
MPT, EPTZ
|
| Sensor |
1/2.8 in, CMOS, 2.14M pixel
|
| Lens |
Pan Angle: -170° ~ +170°, Tilt Angle: -30° ~ +90°, Pan Speed: 0.1°/s ~ 120°/s, Title Speed: 0.1°/s ~ 80°/s
|
| Preset Number |
256 |
| Digital Noise Reduction |
2D & 3D Digital Noise Reduction |
| Video S/N |
≥50 dB |
| Image Flip |
Support |
| OSD |
Support |
| Backlight Compensation |
Support |
| Video Compression |
H.264, H.265
|
| Audio Compression |
AAC |
| Focal Length |
3.9mm ~ 46.8mm |
| Protocols |
TCP, UDP, RTSP, ONVIF
|
| Control Protocols |
VISCA and Daisy Chain Support, PELCO-P, PELCO-D
|
| Iris |
F1.6 ~ 2.8 |
| Zoom |
20 × Optical, 8 × Digital
|
| Wide Dynamic |
Yes |
| Horizontal View Angle |
72.5° ~ 6.3° |
| Focus System |
Auto, Manual, PTZ Trigger, One Push Trigger
|
| Shutter Speed |
1/50s ~ 1/10,000s |
| White Balancing |
Auto, One Push, Manual, Static
|
| Exposure Control |
Auto, Manual, Shutter Priority, Iris, Bright
|
| Minimum Illumination |
0.5 Lux |
| PoE Support |
IEEE 802.3af |
Power
|
|
| Power Input |
DC 12V/1.2A |
| Power Consumption |
18W (Max) |
Environment
|
|
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Storage Temperature |
-4 to 140°F / -20 to 60°C |
| Relative Humidity |
Operating: 10 to 90% , Storage: 10 to 95%
|
Enclosure
|
|
| Rack Mounting Option |
Wall, Ceiling
|
| Product Dimensions (W × D × H) |
9.57 in × 5.71 in × 6.42 in (243mm × 145mm × 163mm) |
| Weight |
2.65 lbs (1200g) |
Warranty
|
|
| Parts |
1 year |
| Labor |
1 year |
