| Camera |
|
| Image Sensor |
1/2.8 in CMOS, 2.14MP |
| Effective Pixels |
1920 × 1080 |
| HD-SDI Signal Formats |
3G-SDI, 1920 × 1080 |
| Supported Resolutions |
1080p60, 1080p30, 1080i60, 720p60, 720p30, 1080p50, 1080p25, 1080i50, 720p50, 720p25 |
| Focus |
Auto, Manual |
| FOV |
59.5° to 2.9° |
| Iris |
F1.6 to F3.5 |
| Optical Zoom |
20× |
| Digital Zoom |
16× |
| Shortest Focus Distance |
10mm to 1,000mm |
| Field of View |
59.5° to 2.9° |
| Minimum Illumination |
0.5 Lux (Color), 0.1 Lux (B/W) |
| Exposure Control |
Auto, Manual |
| Shutter Speed |
1/50s to 1/10,000s |
| AGC |
Auto, Manual |
| White Balance |
Auto, Indoor, Outdoor, One Push, Manual, Auto Track |
| Image Effect |
Image Flip |
| S/N Ratio |
≥50dB |
| AE Control |
Auto, Manual, Shutter Priority, Iris Priority |
| Pan & Tilt |
|
| Pan Range |
-170° to +170° |
| Tilt Range |
-30° to +90° |
| Pan Speed |
0.1°/s to 120°/s |
| Tilt Speed |
0.1°/s to 90°/s |
| Preset Number |
256 |
| OSD |
Available |
| Image Flip |
Enabled |
| Network |
|
| Maximum Image Size |
1920 × 1080@60fps |
| Video Compression |
H.265, H.264 |
| Audio Compression |
AAC |
| Protocols |
NDI HX, RTSP, RTMP, ONVIF |
| Network Support |
Dual stream; up to 10 simultaneous users |

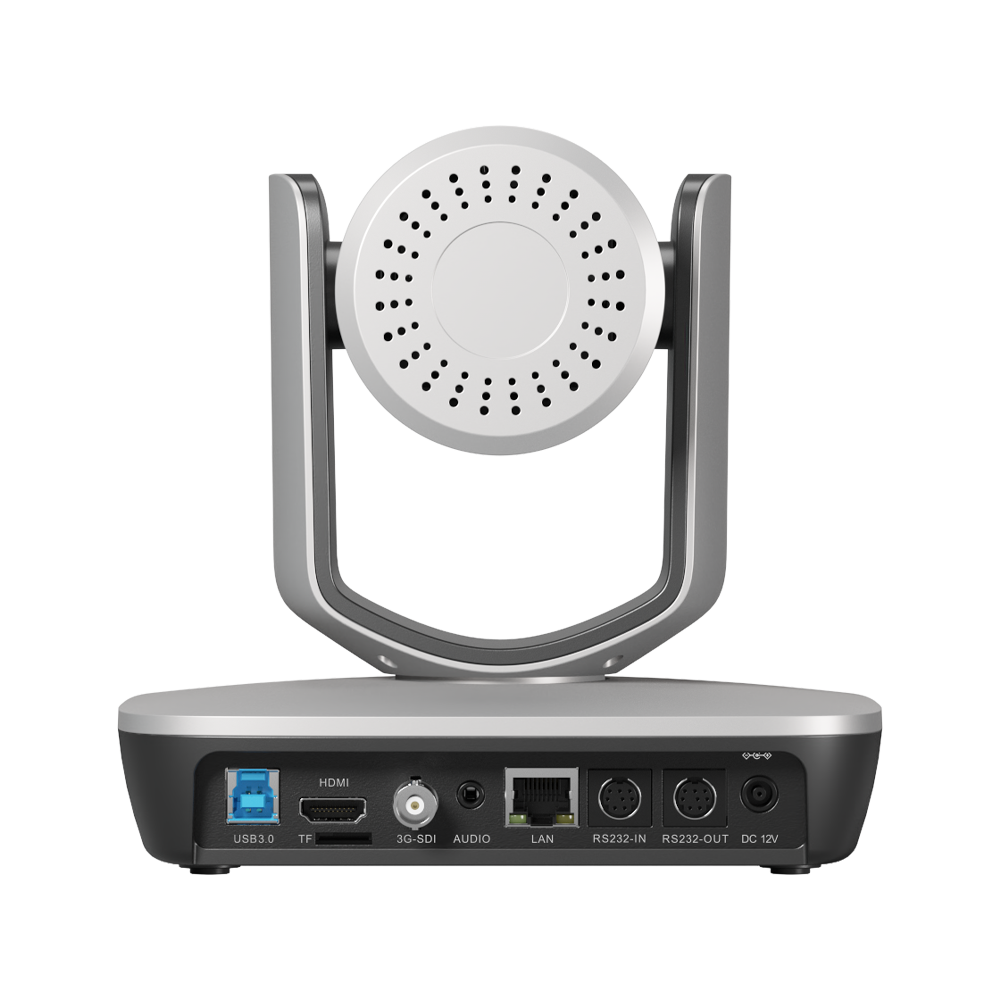

| Interface |
|
| Ethernet |
RJ45, 100Mbps |
| Video Output |
NDI HX, HDMI, 3G-SDI, RTSP, RTMP |
| Control Interface |
RS-232, IR, RS-485 |
| General |
|
| Control Protocol |
VISCA and daisy-chain support, PELCO-P, PELCO-D |
| Address |
0–63 |
| Power Input |
DC 12V |
| Power Consumption |
<15W |
| Operating Temperature |
0° to 40°C |
| Storage Temperature |
-20° to 60°C |
| Dimensions |
8.9 × 6.2 × 8.1 in |
| Enclosure |
Gray |
| Weight |
1.2kg |
| Warranty |
|
| Warranty |
1 Year |
