| Technical Specifications – Camera |
|
| Image Sensor |
1/2.8-inch CMOS, 2.14MP |
| Supported Resolutions |
1920 × 1080p at 60/50/30/25/20/15/10/5 fps; 1280 × 720p at 60/50/30/25/20/15/10/5 fps; 1024 × 768p at 60/50/30/25/20/15/10/5 fps; 800 × 600p at 60/50/30/25/20/15/10/5 fps; 640 × 480p at 60/50/30/25/20/15/10/5 fps |
| Focus |
Auto, manual, PTZ Trigger AF, One Push |
| Focal Length |
9.9–46.8mm |
| Iris |
F1.6–F2.8 |
| Optical Zoom |
12× |
| Digital Zoom |
12× |
| Field of View |
72.5° to 6.3° |
| Minimum Illumination |
0.5 lux |
| Shutter Speed |
1/1 to 1/10,000 sec |
| AE Control |
Auto, manual, shutter priority, iris priority, intelligence |
| Minimum Illumination |
0.5 lux |
| Gain |
Auto/manual |
| White Balance |
Auto, indoor, outdoor, One Push, manual, automatic tracking, sodium, fluorescent |
| BLC |
Yes |
| WDR |
Yes |
| Noise Reduction |
2D/3D |
Pan & Tilt |
|
| Pan Range |
-170° to +170° |
| Tilt Range |
-30° to +90° |
| Pan Speed |
0.1° to 120°/s |
| Tilt Speed |
0.1° to 80°/s |
| Preset Number |
252 |
| OSD |
Yes |
| Image Flip |
Yes |
Interface |
|

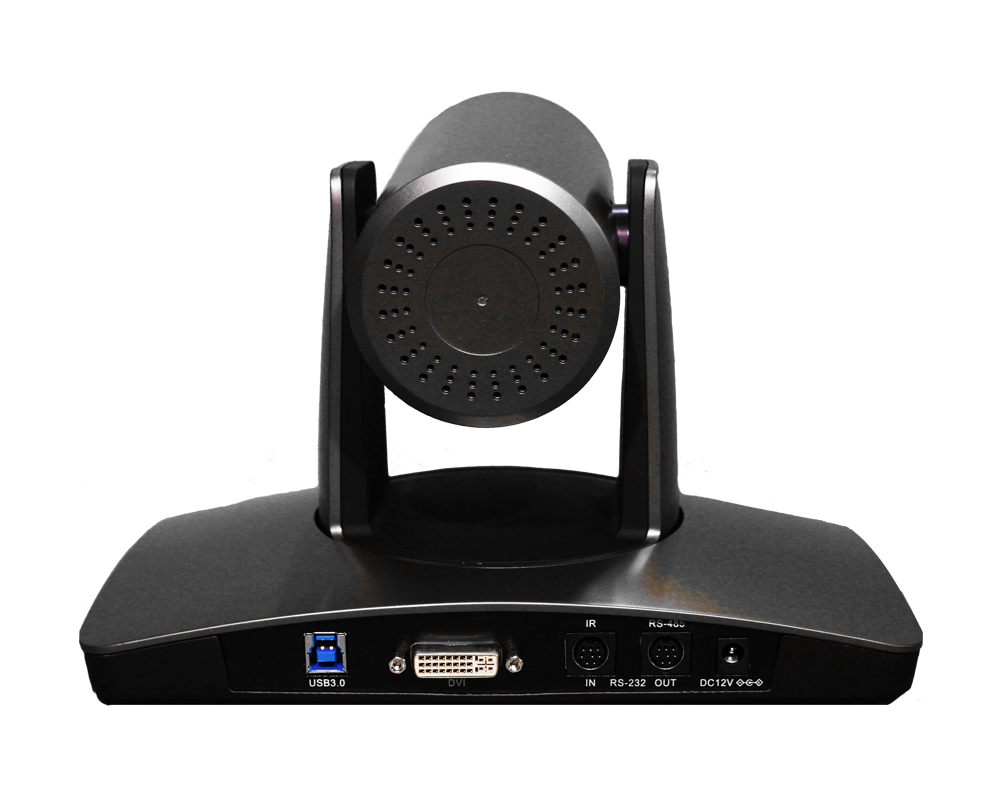

| Video Output |
USB 3.0, DVI-D |
| Control Interface |
USB 3.0/2.0, RS-232 input/IR, RS-232 output/RS-485 |
General |
|
| Control Protocol |
VISCA with daisy-chain capability, Pelco-D, Pelco-P |
| Address |
0–63 |
| Power Supply |
DC 12V |
| Dimensions |
9.57 × 5.71 × 6.42 in / 243 × 145 × 163 mm |
| Weight |
2.65 lbs / 1.2 kg |
Warranty |
|
| Warranty |
Limited Warranty, 3 Years |
