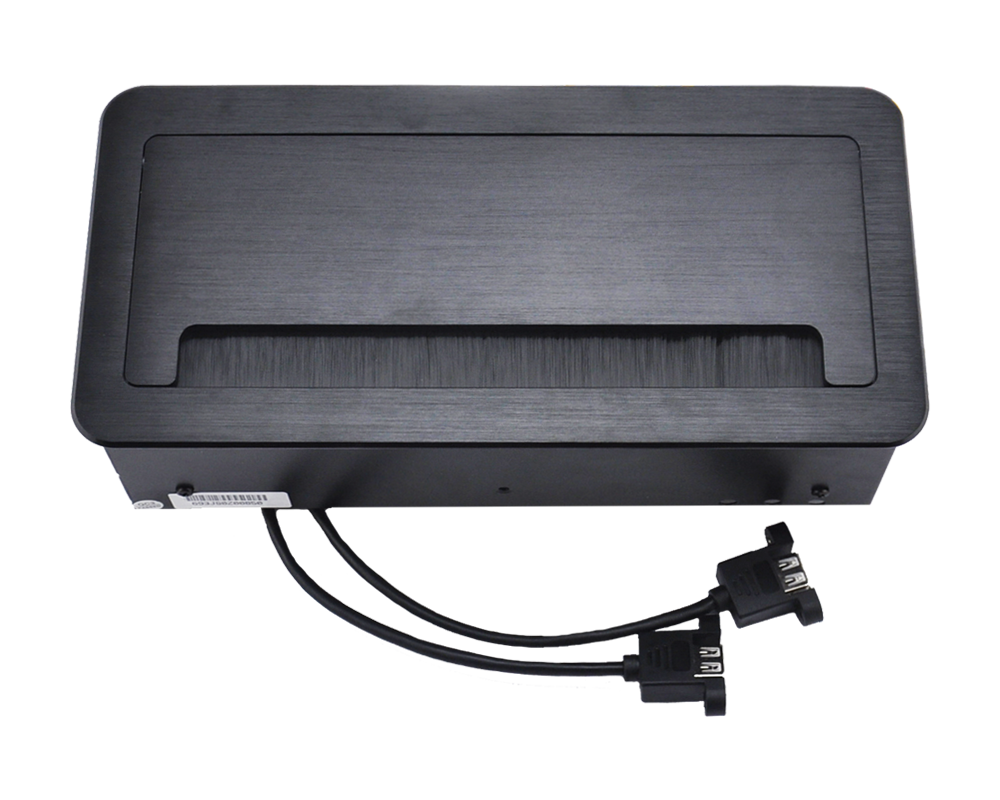

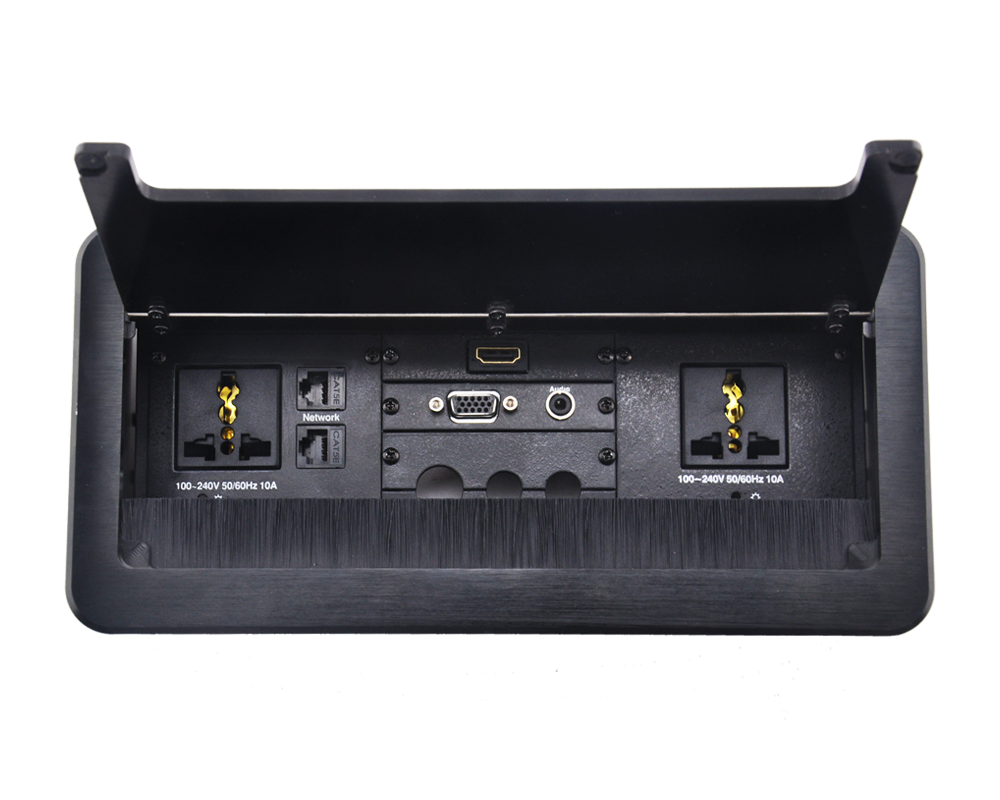

The TotalWire™ TCM-100 is a compact table mount enclosure with a manual tilt-up lid offering customizable connections for A/V and power. The TCM-100 houses up to (12) 1U inserts including HDMI, VGA, Audio, USB, Network, and AC power.
| AV Inserts |
| Model |
Description |
Size |
| TCM-100-HDMI |
(1) HDMI |
1U |
| TCM-100-VGA |
(1) VGA |
1U |
| TCM-100-VGA-A |
(1) USB |
1U |
| TCM-100-USB |
(1) VGA, (1) 3.5mm audio |
1U |
| TCM-100-NET |
(2) Network/Cat6/td> |
2U |
| TCM-100-USB |
(1) VGA, (1) 3.5mm audio |
1U |
| AC Power |
| Model |
Description |
Size |
| TCM-100-AC1UN |
(1) Universal Outlet |
3U |
| TCM-100-AC1US |
(1) US Outlet |
3U |
| TCM-100-AC2US |
(2) US Outlets |
4U |
| Combination Ports |
| Model |
Description |
Size |
| TCM-100-CM1UN |
(1) Universal Outlet, (1) Network |
3U |
| TCM-100-CM2UN |
(1) Universal Outlet, (2) Network |
4U |
Key Features
- Accommodates AV cables and AC power outlets
- Modular design with tilting lid
- Convenient cable management for conference and board room tables
- Blank plates and cable pass-through inserts also available
- Bezel dimensions: 10.5 x 5.1”
- Mounting hardware included
