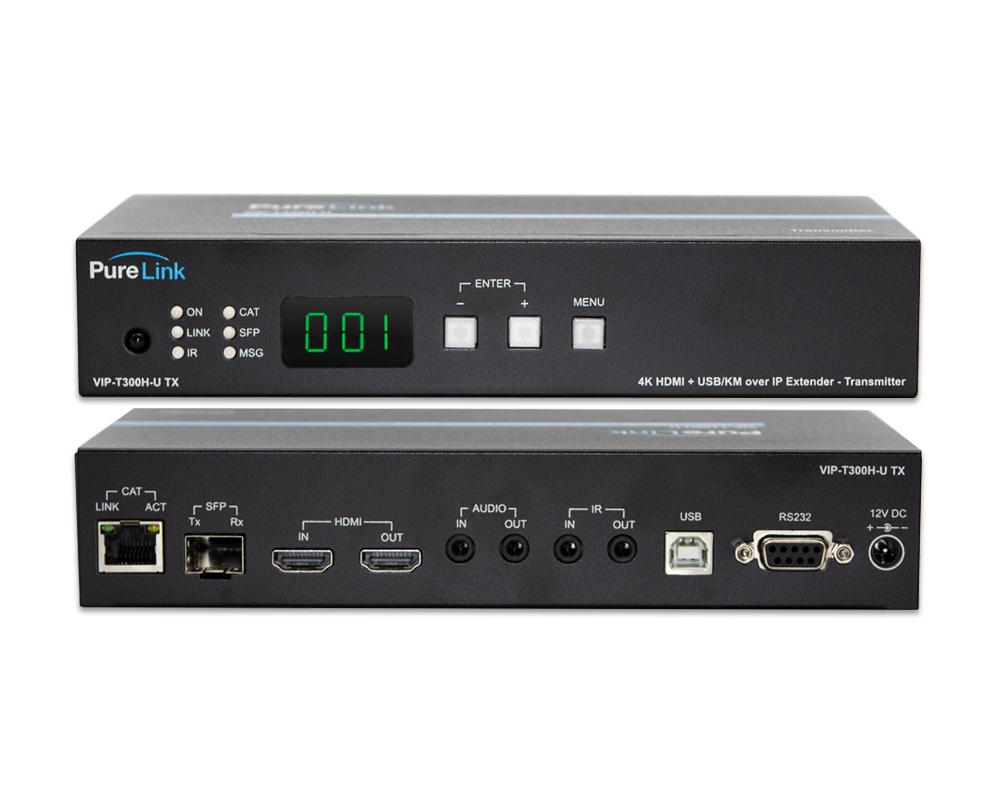

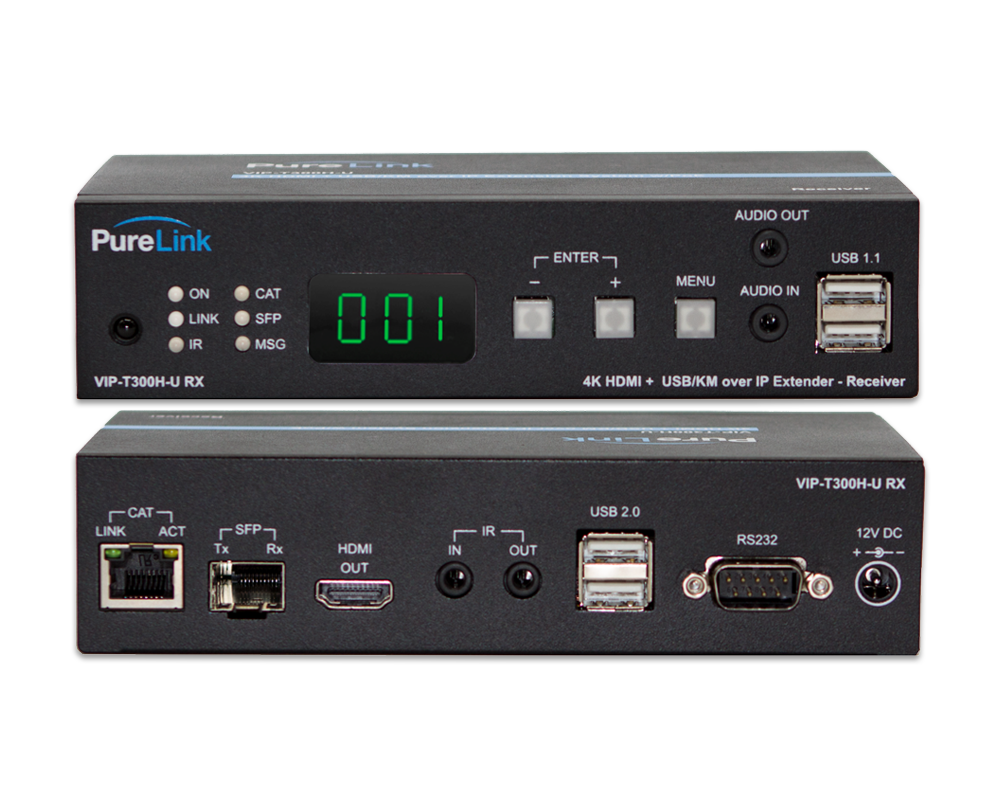

The VIP-EXT-T300-1 4K HDMI & USB/KM over IP Extension System provides extension of Ultra HD/4K video, audio, RS-232, IR, and USB signal extension - point-to-point or over the network. The VIP-EXT-T300-1 supports cable distances up to 150 m., and doubles the range when used with a network switch (up to 300 m.). Implementing video extension over an IP network delivers added flexibility, allowing users to expand existing systems to support multi-signal distribution and matrix switching.

Key Features

• 4K@30Hz, 4:4:4
• Fiber or CAT transport – 1G port
• Extend signals up to to 300 m. using network switch
• HDCP 2.2 compliant
• Q-SYS™ integration via VIP-300-T300-QSYS driver
• Max data rate 250Mbps;
• Ultra-low latency (<17mS)
• Comprehensive diagnostics via front panel and API
• Control via web UI, front panel, IR remote, VPX Management Software
• API development for third-party control
• Supports instant switching
• Built-in video wall processing (up to 8×8)
• Built-in scaler on receiver (decoder)
• Image rotation 0, 90, 180 degrees
• IR and RS-232 extension
• TCP/IP to RS-232 conversion
• USB 2.0 for keyboard/mouse, camera, or hard drive
• HDMI loop-out on TX (encoder)
• PoE 802.3af (under 5W)
• Supports Dolby, DTS, and LPCM audio
• Matrix switching systems up to 999 sources and 65K displays
• TAA compliant
• Rack-mounting option available

Specifications
