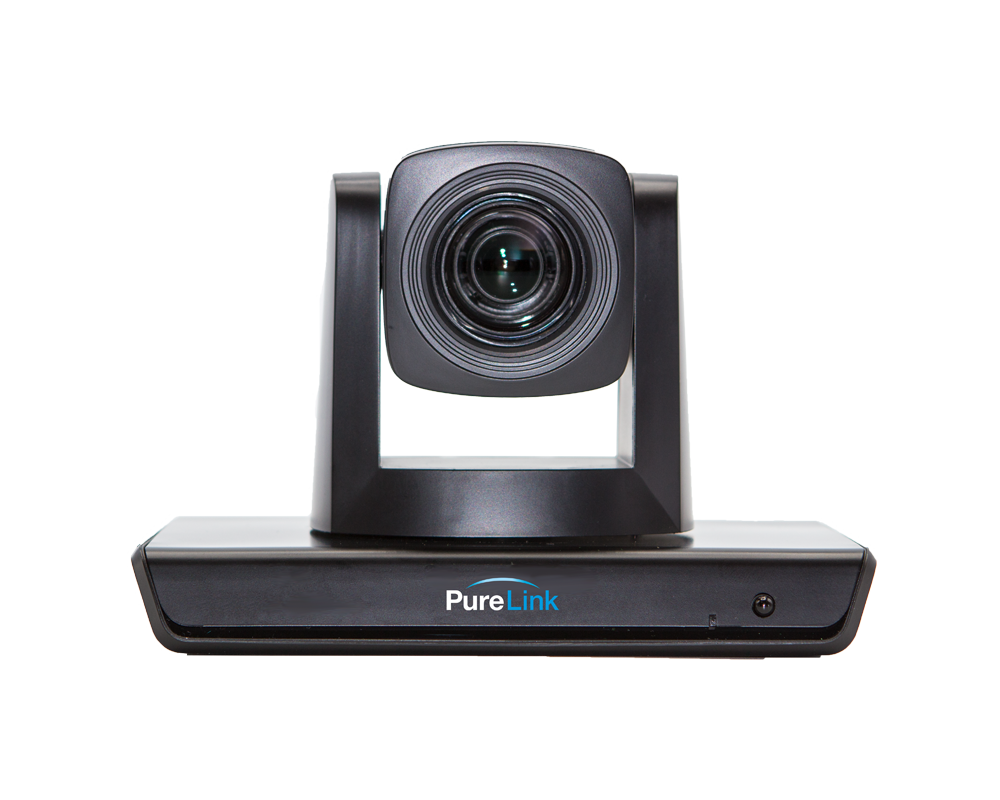

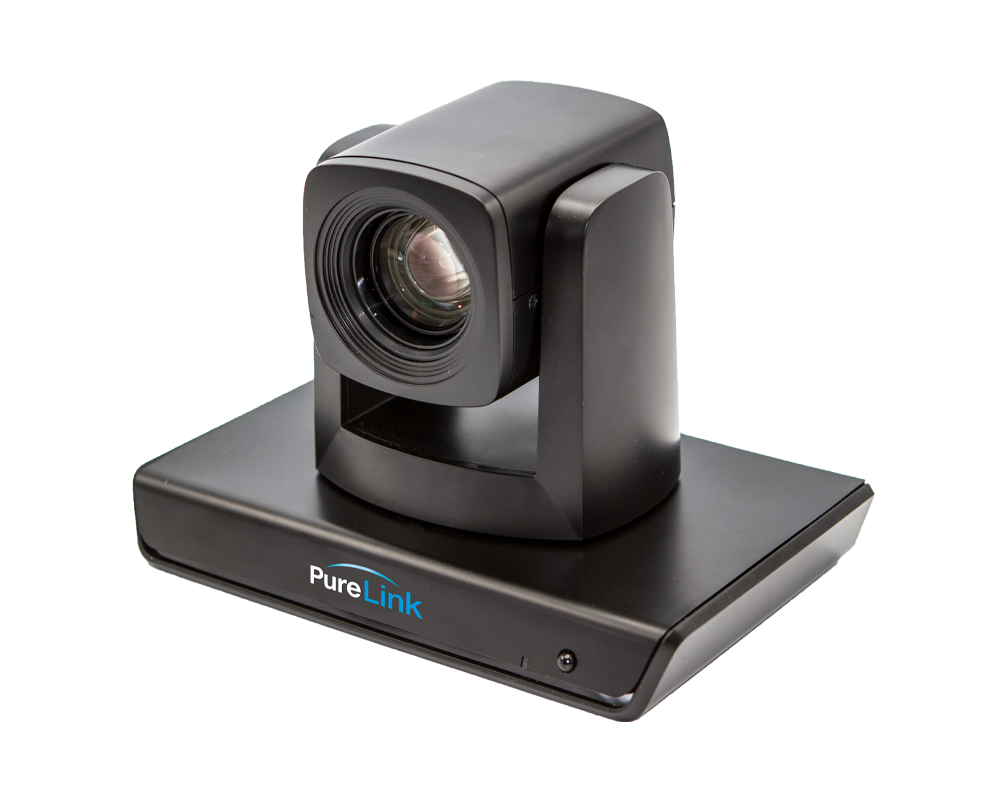

The VIP-CAM-20-10x-USB2 1080p camera features high-performance optics, 10x zoom range, and smooth and stable pan/tilt/zoom functionality. With a USB 2.0 and HDMI outputs, this plug and play camera is ideal for broadcasting high definition video signals in conferencing, education, training webinars, online meetings, live events, streaming, security/surveillance applications, and many more.
Key Features
- Full HD, 1080P
- 10x optical zoom
- USB 2.0 and HDMI outputs plug and play
- High-performance optics
- Smooth, stable pan, tilt, and zoom
- Full function remote control
- VISCA/PELCO control
- 2D and 3D SNR
- Over 32 programmable preset PTZ positions recallable from remote or controller
Applications
- Any conferencing software that supports USB cameras
- Meetings
- Education/webinars
- Product demonstrations
- Live event streaming through compatible software applications
- Security
Specifications
| Technical Specifications – Camera |
|
| Image Sensor |
1/2.9-inch CMOS, 2.12 megapixels |
| Lens |
f = 3–10mm |
| Focus System |
Sync focus |
| Optical Zoom |
10× |
| Minimum Illumination |
0.5 lux (color), 0.1 lux (B/W) |
| Exposure Control |
Auto/manual |
| White Balance |
Auto/manual |
| S/N Ratio |
≥50dB |
| BLC |
Yes |
| Video Format |
1080p at 30 fps |
Pan & Tilt |
|
| Pan Range |
-90° to +90° |
| Tilt Range |
-30° to +90° |
| Pan Speed |
18°/s |
| Tilt Speed |
18°/s |
| Preset Number |
32 |
Network |
|
| Video Compression |
H.264, MJPEG, YUY2 |
Interface |
|
| Video Output |
1 × USB 2.0, 1 × HDMI Type A female |
| Control Interface |
USB 2.0, RS-232 |
| UVC Protocol |
UVC 1.0–1.5 |
| UVC PTZ Control |
Yes |
| Infrared Remote Control |
Yes |
General |
|
| Control Protocol |
VISCA |
| Address |
1–7 |
| Power Supply |
DC 5V |
| Power Consumption |
<2W |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-20°C to 60°C |
| Dimensions |
163 × 101 × 114 mm |
| Weight |
0.6 kg |
Warranty |
|
| Warranty |
Limited Warranty, 3 Years |
