The USB32-E100 delivers reliable USB 3.2 Gen 1 extension over a single CAT6a cable up to 328 ft (100m). It connects USB-C or USB-A devices such as cameras, touch panels, laptops, and desktops with plug-and-play simplicity. The extender also carries USB 3.2, 2.0, 1.1, and RS-232 signals, making it ideal for workstations, conference rooms, and commercial installations. Optional rack-mounting is available for professional setups, and the solution is TAA compliant for government and enterprise projects.
Key Features
-
Extends USB 3.2, 2.0, and 1.1 devices up to 328 ft (100m) over CAT6a
- USB-C to USB-C or USB-C to USB-A connections
- RS-232 extension
- Plug-and-play operation
- Optional rack-mount kit (USB32-E100-RACK)
- TAA-compliant
Specifications
| Standards & Compliance |
|
| Signal Standards |
USB 3.2 Gen 1, USB 2.0, USB 1.1
|
| Compliance |
TAA |

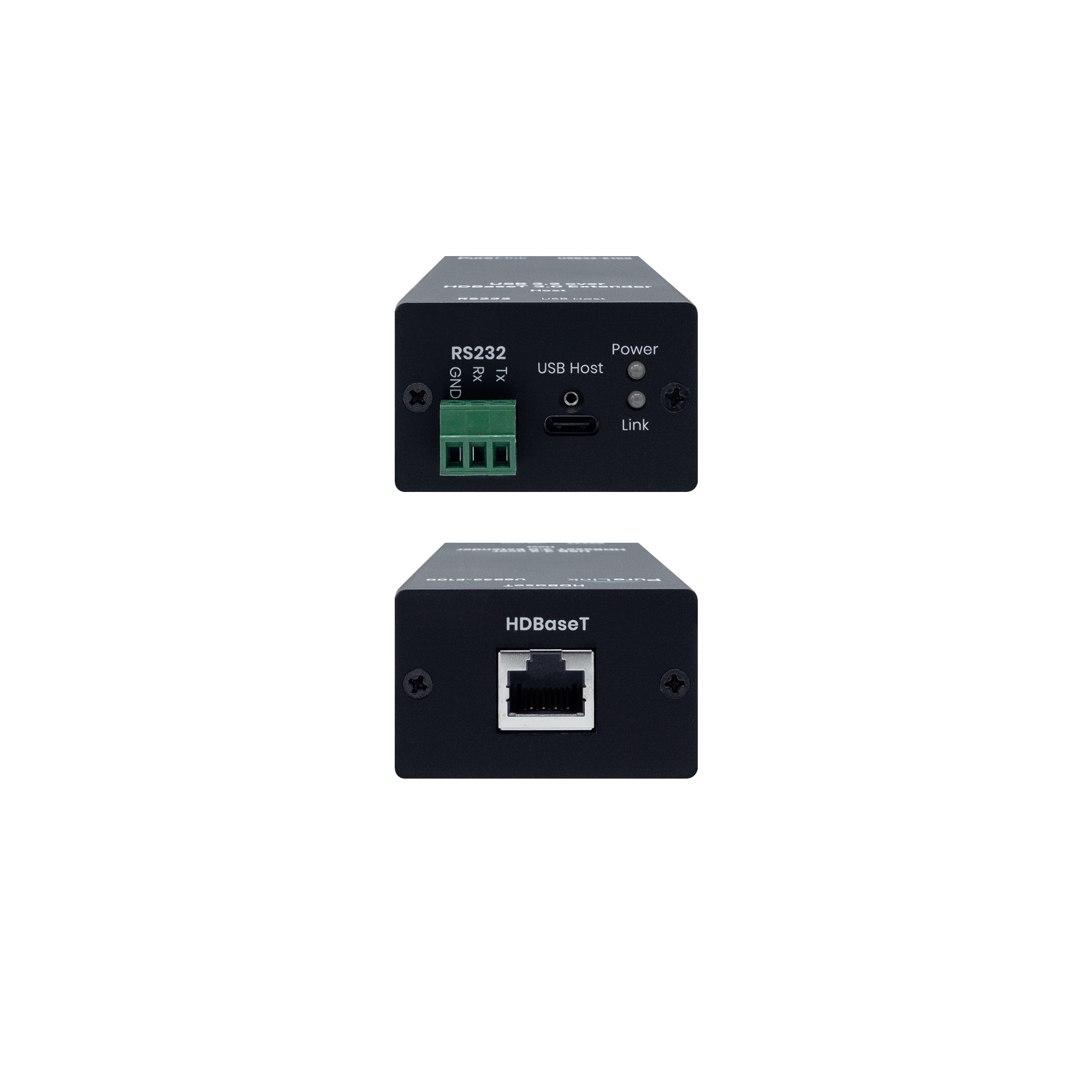

Transmitter Connector Types
|
|
| RS-232 - TX |
1 × 3.81mm 3-pin Phoenix |
| HDBaseT - TX |
1 × LAN (RJ45) |
| USB Inputs - TX |
1 × USB-C In |

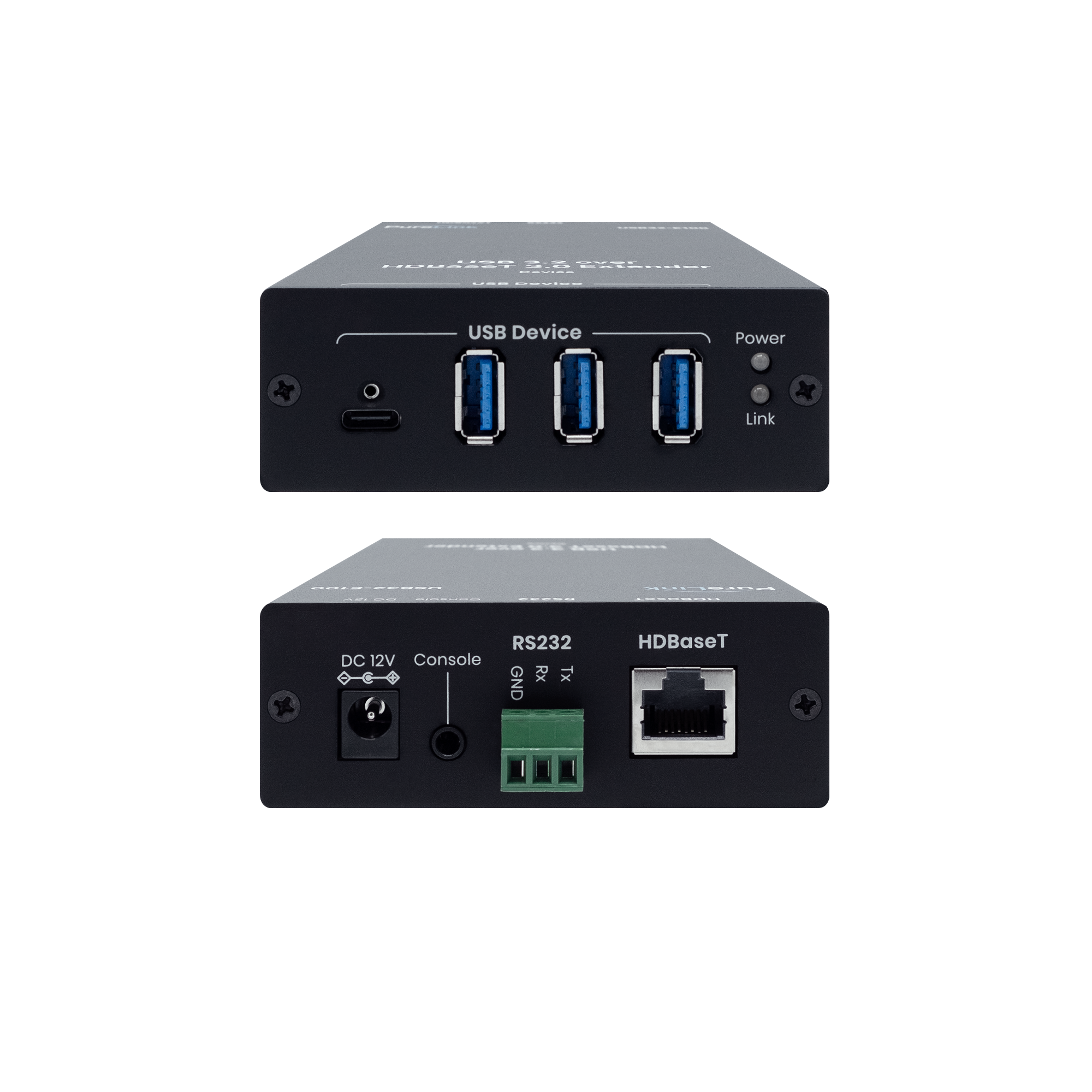

Receiver Connector Types
|
|
| HDBaseT -RX |
1 × LAN (RJ45) |
| RS-232 - RX |
1 × 3.81mm 3-pin Phoenix |
| USB Devices - RX |
1 × USB-C Out, 3 × USB-A
|
Performance
|
|
| CATx Transmission Distance |
CAT6a/CAT7: 100m |
| Transport |
HDBaseT 3.0 |
| Max Data Rate |
USB3.2 Gen1: 5Gbps |
| RS-232 Support |
Yes |
| Cable Type (CatX) |
CAT 6a, CAT 7
|
Power Transmitter
|
|
| Power Input |
USB 5V |
| Power Supply |
AC 100 - 240V 50/60Hz |
| Power Consumption |
1.6W(max) |
Power Receiver
|
|
| Power Input - RX |
DC 12V/1.5A |
| Power Supply - RX |
AC 100 - 240V 50/60Hz |
| Power Consumption - RX |
1.8W(max) |
Environment
|
|
| Operating Temperature |
32 to 131°F / 0 to 55°C |
| Storage Temperature |
-40 to 176°F / -40 to 80°C |
| Relative Humidity |
0 to 95% |
Enclosure
|
|
| Rack Mounting Option |
USB32-E100-RACK |
| Product Dimensions (W × D × H) |
RX: 3.43 in × 4.84 in × 1.26 in (87mm × 123mm × 32.0mm), TX: 1.96 in × 3.66 in × 1.25 in (50mm × 93mm × 32.0mm)
|
| Weight |
TX: 0.28 lbs (128g), RX: 0.57 lbs (259g)
|
Warranty
|
|
| Parts |
3 year |
| Labor |
3 year |
