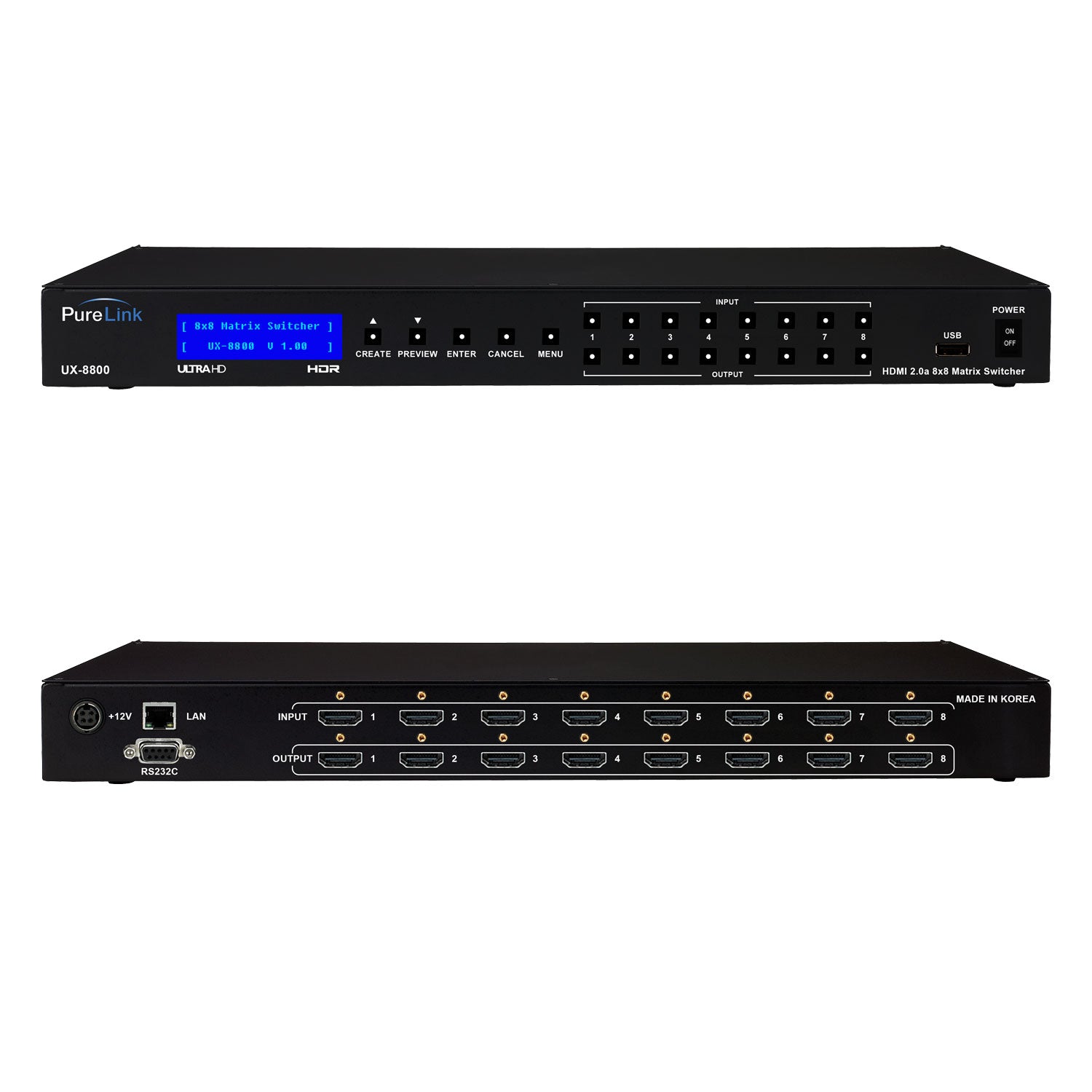

The UX-8800 provides switching of up to eight HDMI 2.0 inputs and outputs and incorporates the latest technologies available on the market including HDR and HDCP 2.2 compliance. The UX Series matrix switchers also feature a built-in web page interface allowing convenient set-up, user access, control, and operation through any web browser on devices such as laptops or tablets.
Together with advanced EDID management and added security features, the UX Series delivers a true, first-in-class Ultra HD multi-zone signal distribution solution ideal for corporate conferencing, education, and hospitality environments, to name a few.
- 8×8 HDMI 2.0 matrix switching
- Resolutions up to 4K50/60 4:4:4 pixel format
- HDCP 2.2 compliant
- HDR
- Built-in web interface for convenient setup & operation
- Bi-directional RS232/LAN control
- Locking HDMI ports
Specifications
| Standards & Compliance |
|
| Signal Standards |
HDMI 2.0b |
| Compliance |
TAA |
Matrix Connector Types
|
|
| HDMI Inputs |
8 × HDMI IN (Type A, 19-pin female) |
| HDMI Outputs |
8 × HDMI OUT (Type A, 19-pin female) |
| TCP/IP |
1 × LAN (RJ45) |
| RS-232 |
1 × DB9 female |
Performance
|
|
| Max Video Resolution |
4K60 (4:4:4) |
| Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
|
| HDR |
HDR |
| HDCP |
HDCP 2.2 |
| Dolby Vision |
Dolby Vision (4K@30, 4:4:4) |
| RS-232 Support |
Yes |
| HDMI Audio Formats |
7.1 Ch Dolby TrueHD, DTS-HD Master Audio
|
Power Switcher
|
|
| Power Input |
DC 12V/7.5A |
| Power Supply |
AC 100 - 240V 50/60Hz |
| Power Consumption |
90W (Max) |
Environment
|
|
| Operating Temperature |
32 to 117°F / 0 to 47°C |
| Storage Temperature |
-4 to 158°F / -20 to 70°C |
| Relative Humidity |
0 to 90% |
Enclosure
|
|
| Product Dimensions (W × D × H) |
17.25 in × 9.6 in × 1.75 in (438mm × 244mm × 44.5mm) |
| Weight |
7.7 lbs (3.5kg) |
Warranty
|
|
| Parts |
3 year |
| Labor |
3 year |
