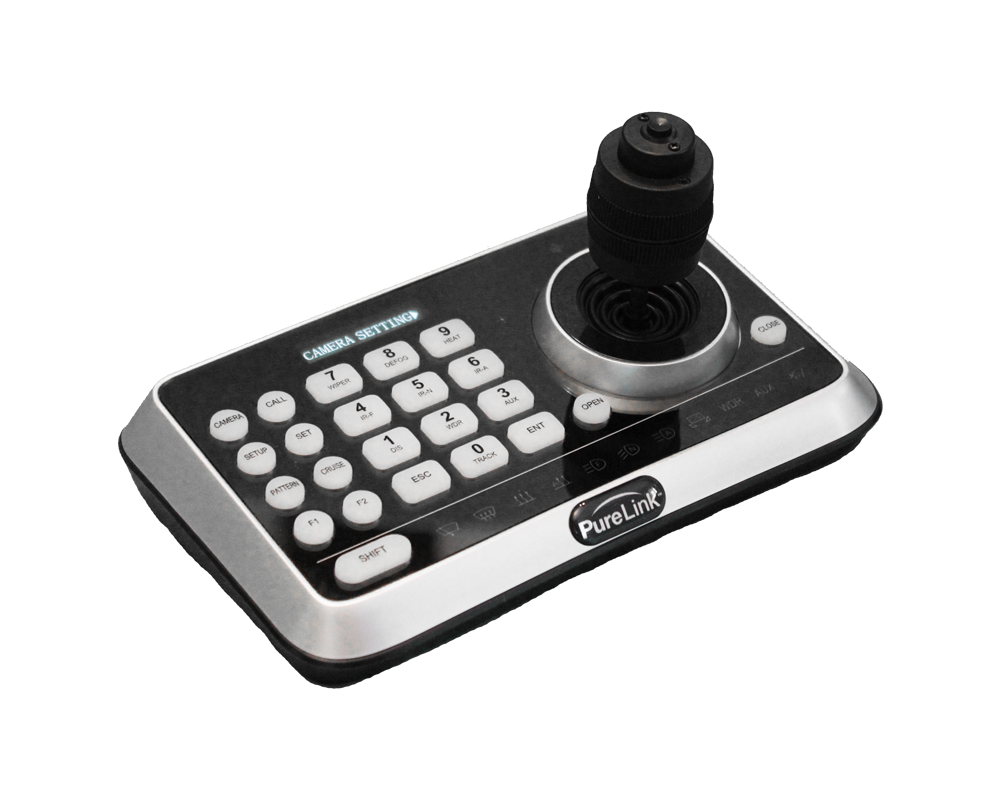

The VIP-CAM-CTRL1 provides full control of up to 255 PureStream™ VIP-CAM series cameras. Quickly access pan, tilt, zoom, and focus adjustments with the smooth 4D joystick, as well as direct iris control. Recall presets using the numeric keypad. Access any setup function with the dedicated function keys.
Key Features
- 4D joystick for pan/tilt/zoom/focus control
- Compact, ergonomic design
- High brightness OLED display
- Auto backlight keys
- Shortcut keys customization
- Compatible with any PTZ cameras that use PELCO or VISCA control
- Supports up to 255 cameras using PELCO; 7 cameras using VISCA
- Support Pelco D/P, VISCA protocols
- Multi-level passwords
- 256 address
Specifications
| General |
|
| Communication Interface |
RS-485, RS-232 |
| Control Protocol |
PELCO-D, PELCO-P, VISCA |
| Address |
0–255 (PELCO), 1–7 (VISCA) |
| Display |
OLED |
| Joystick |
4-axis |
| Baud Rate |
2400, 4800, 9600, 19200, 38400 bps |
| Power Supply |
DC 12V |
| Power Consumption |
<2W |
| Operating Temperature |
0° to 40°C |
| Storage Temperature |
-20° to 50°C |
| Humidity |
Up to 90% non-condensing |
| Dimensions (L × W × H) |
7.8 × 4.7 × 4.0 in |
| Weight |
1.1 lbs |
Warranty |
|
| Warranty |
1 Year |
