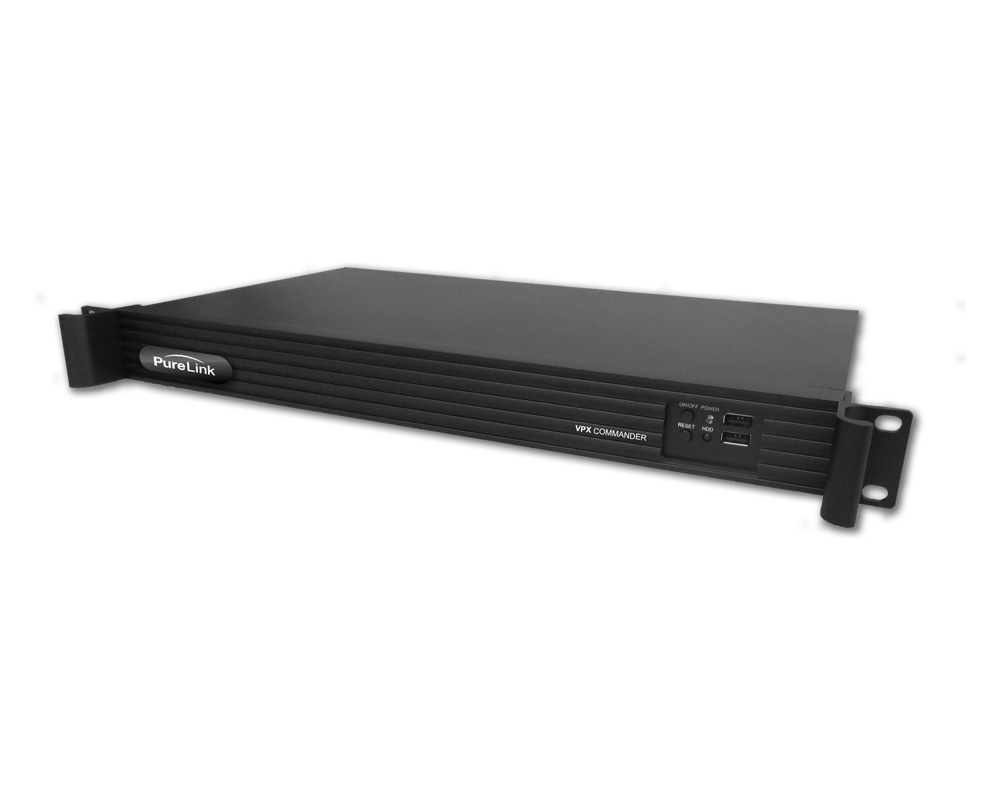

VPX-Commander™ provides a 1U rack-mountable hardware client for running VPX IP Video Management Software, delivering reliable, 24/7 operation in professional AV over IP environments. It simplifies system setup and operation, ensuring seamless video management across iOS, Android, Mac, and Windows devices.
Built for continuous operation, VPX-Commander offers fast device discovery, intuitive controls, and comprehensive diagnostics. Ideal for corporate, broadcast, or entertainment applications, it enhances the VPX ecosystem with a robust, always-on control appliance that integrates effortlessly with PureStream deployments.
Key Features
- Runs any version of VPX IP Video Management Software
- Fast, simple system discovery and setup
- Intuitive operation across multiple devices
- Comprehensive dynamic diagnostic reporting
- Accessible via iOS, Android, Mac, and Windows
- 24/7/365 operation for continuous use
- 1U rack-mountable hardware design
Specifications
| Standards & Compliance |
|
| Control Protocol |
LAN (TCP/IP), RS-485 (bidirectional), RS-232 (bidirectional) |
| Regulatory Certifications |
CE, FCC, RoHS, UL |
AV & Data Connections |
|
| HDMI Outputs |
1 × HDMI OUT (Type A, 19-pin female) |
Communications & Control |
|
| Audio Outputs |
Analog L/R [3.5mm TRS] |
| Control Ports |
LAN, RS-232 |
| Control Connector Types |
RJ45, 3.81mm Mini Phoenix, 3.5mm TRS |
Performance |
|
| Max Video Resolution |
1920 × 1080p60 |
| CPU |
Intel Core i7-4510U, 2.0GHz |
| Memory |
8GB |
| Internal Storage |
250GB SSD |
| Network Port |
LAN (RJ45) |
| Connections |
HDMI 2.0, VGA, SATA, USB 2.0 |
| Audio |
3.5mm TRS |
| RS-232 Port |
1 × DB9 |
Power |
|
| Power Input |
AC 120–240V, 50/60Hz |
| Power Supply |
DC 12V/5A |
| Power Consumption |
300W max |
Enclosure |
|
| Mounting Option |
Rack |
| Product Dimensions (W × D × H) |
19 in × 11.50 in × 1.75 in / 482.6mm × 292.1mm × 44.45mm |
| Weight |
7.7 lbs / 3493g |
Warranty |
|
| Parts |
5 Year |
| Labor |
5 Year |
