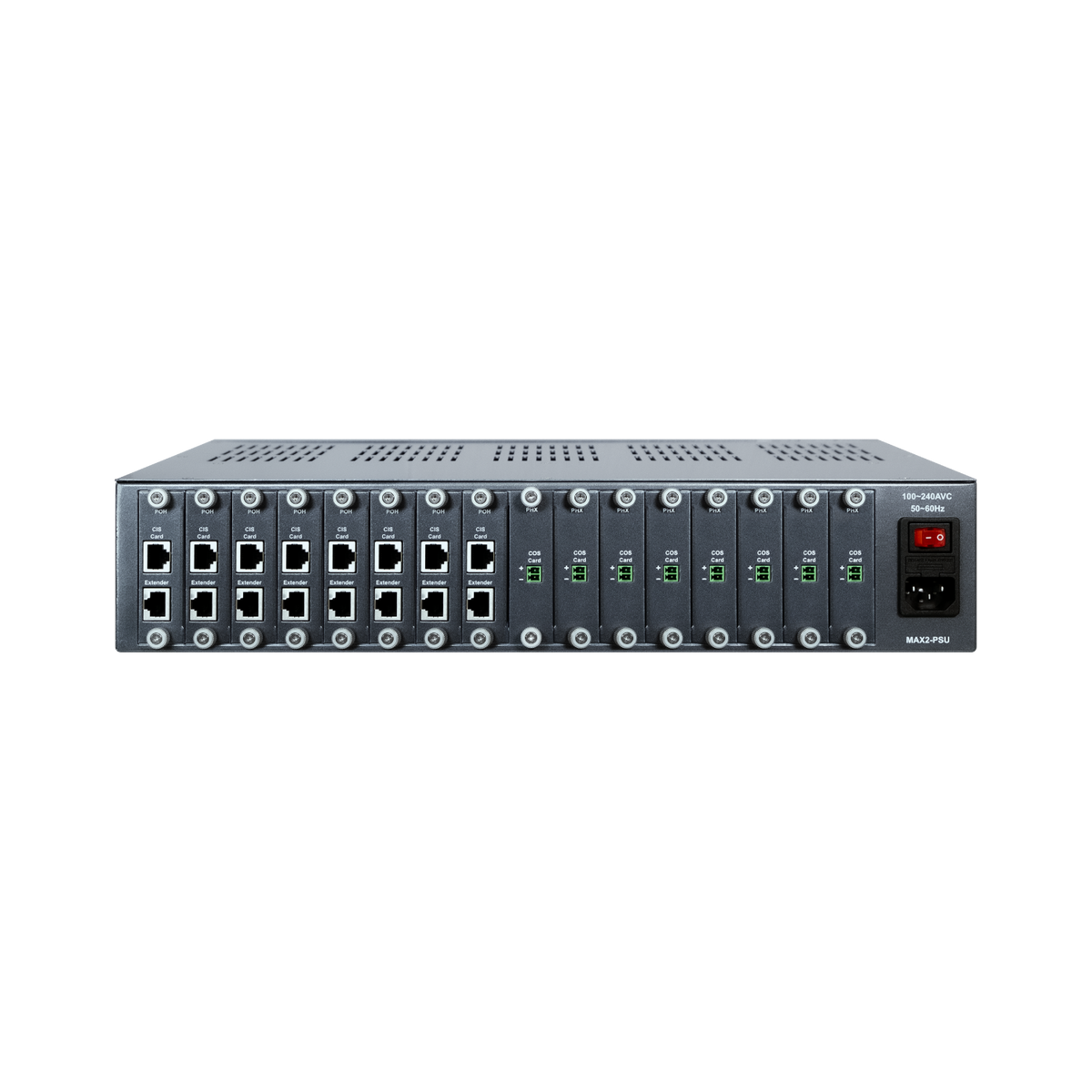

The MAX2-PSU-F provides centralized PoH power injection for MAX2 HDBaseT extenders used with MAX2-12X, MAX2-216X, and MAX2-288X Matrix Frames. Its 16 modular channels allow external extender power to be configured according to the system’s input and output requirements.

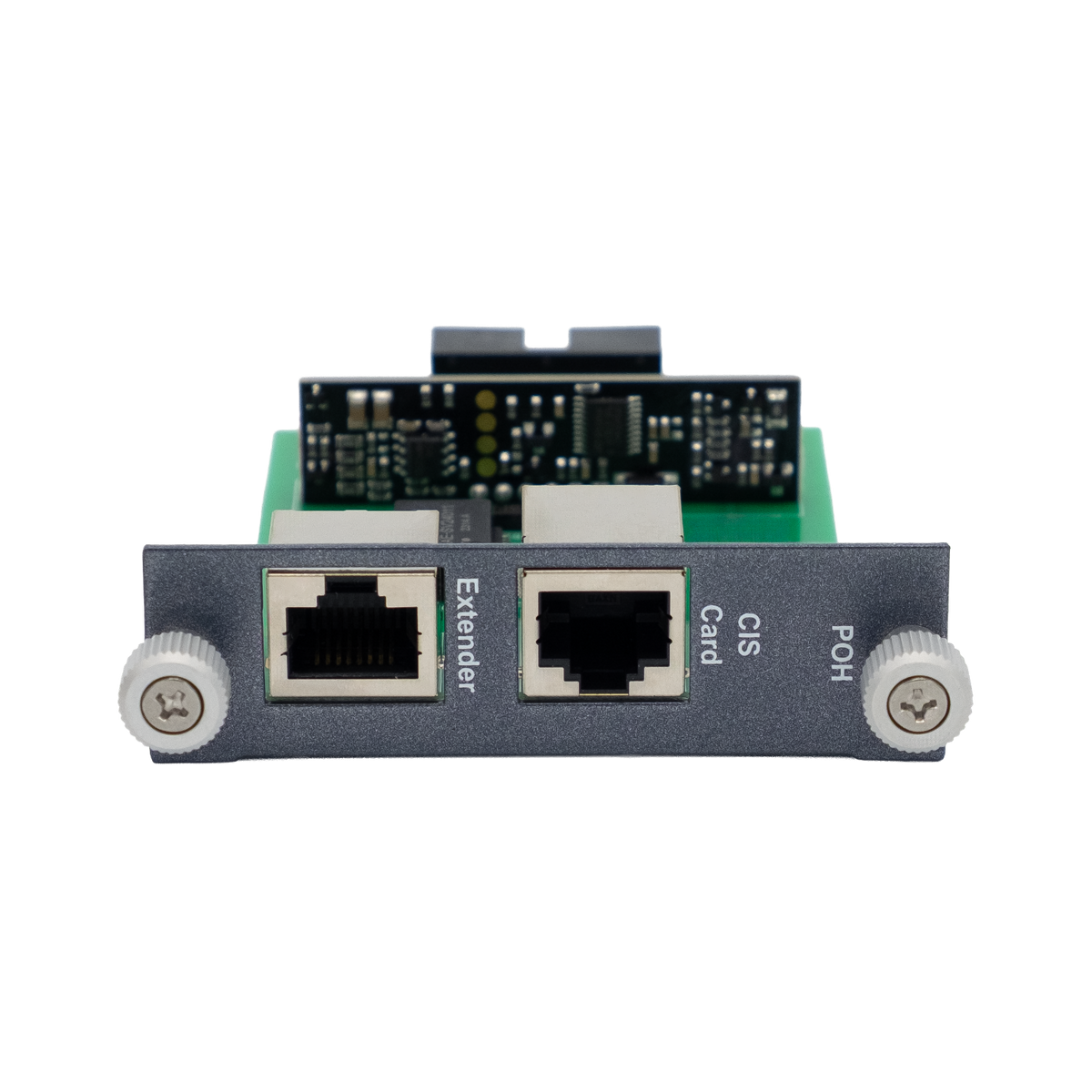

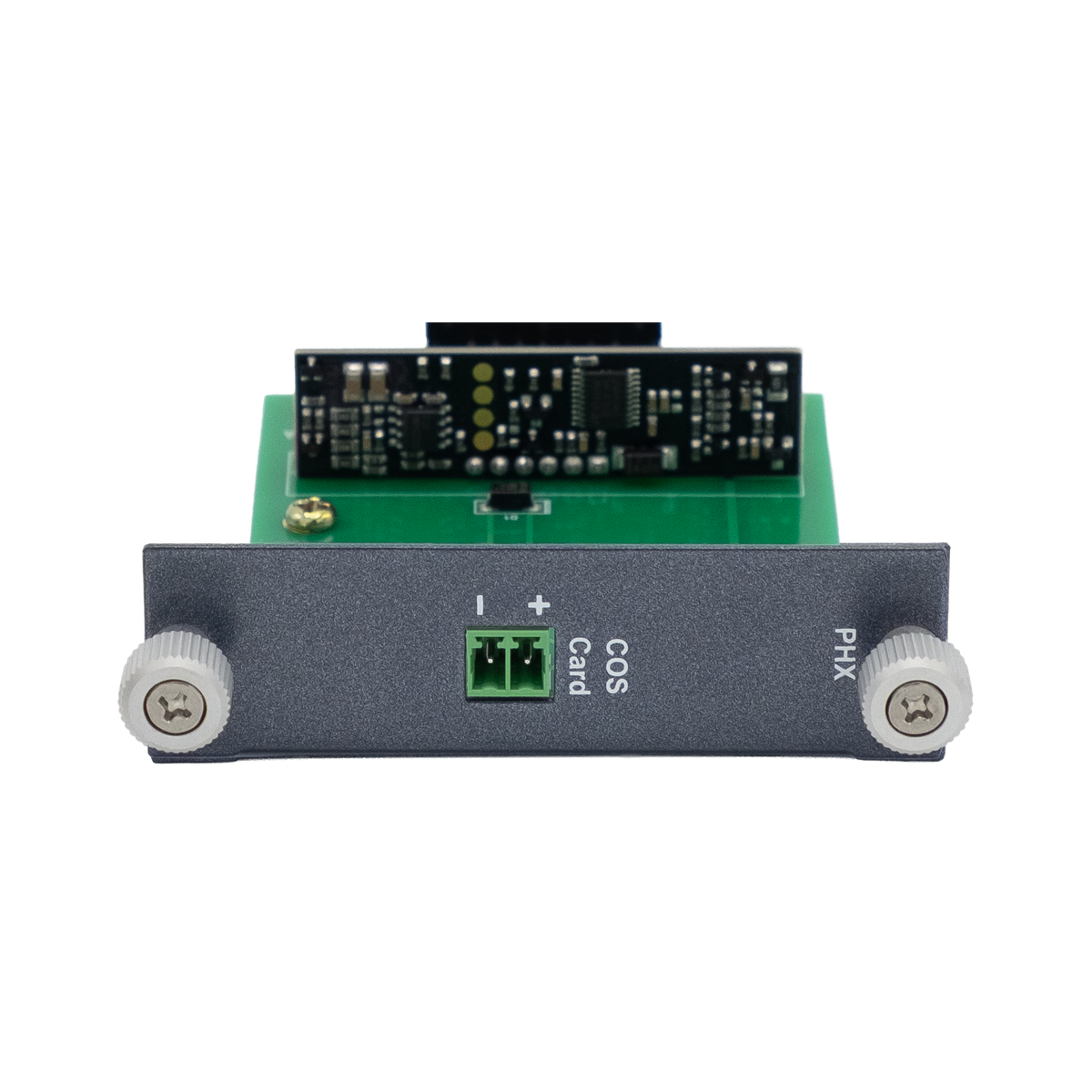

Each slot accepts either a MAX2-POH-F or MAX2-PHX-F module, allowing any combination of the two module types across the 16 available channels. The MAX2-PSU-F works with MAX2-CIS100 and MAX2-CIS100-V2 input cards, as well as MAX2-COS100 and MAX2-COS100-V2 output cards.
Key Features
- 16-channel modular PoH power supply for MAX2 HDBaseT extenders
- Required for PoH operation with MAX2-12X, MAX2-216X, and MAX2-288X frames
- 16 modular slots accept any combination of MAX2-POH-F and MAX2-PHX-F modules
- Compatible with MAX2-CIS100/CIS100-V2 input cards and MAX2-COS100/COS100-V2 output cards
Specifications
| Standards & Compliance |
|
| Compliance |
TAA |
Performance |
|
| MAX2 PoH Injector |
Up to 16 modular PoH injectors |
Power Switcher |
|
| Power Supply |
100–240VAC, 50/60Hz |
| Power Consumption |
650W max |
Environment |
|
| Operating Temperature |
32° to 117°F / 0° to 47°C |
| Storage Temperature |
-40° to 158°F / -40° to 70°C |
| Relative Humidity |
0 to 90% |
Enclosure |
|
| Rack Mounting |
2 RU |
| Frame Dimensions (W × D × H) |
12.63 × 9.38 × 3.50 in / 320.8 × 238.3 × 88.9 mm |
| Frame Weight |
10 lbs / 4.5 kg |
Warranty |
|
| Parts |
Frames: 5 Years; cards and extenders: 3 Years; front touch panel: 1 Year |
| Labor |
Frames: 5 Years; cards and extenders: 3 Years; front touch panel: 1 Year |
