12×12 Media Axis 2™ 4K60 Cross Platform Matrix Switcher Frame

MAX2 Frames

12×12 Media Axis 2™ 4K60 Cross Platform Matrix Switcher Frame

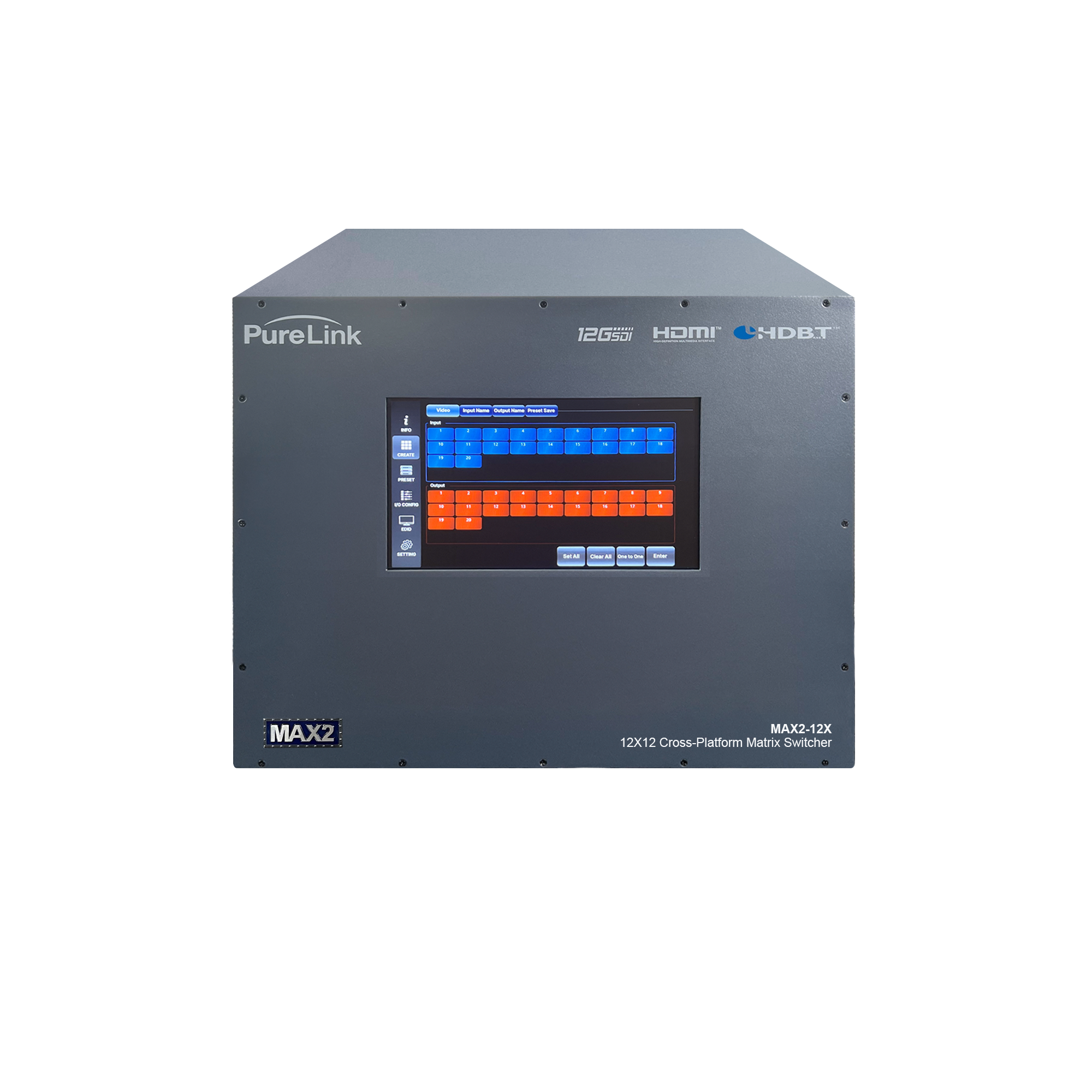

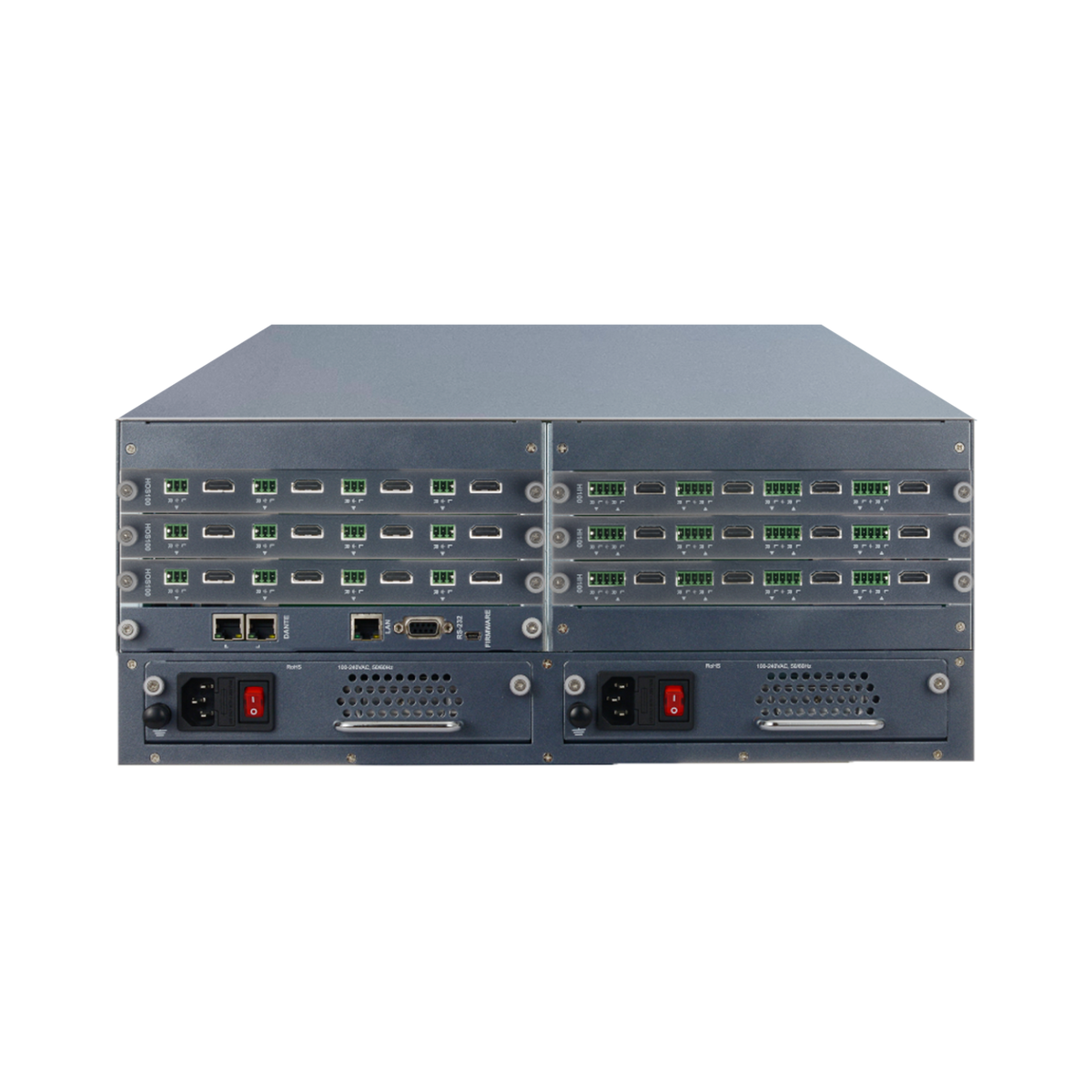

Name: 12×12 Media Axis 2™ 4K60 Cross Platform Matrix Switcher Frame
Brand: PureLink
SKU: MAX2-12X

MAX2-12X

New

TAA/NDAA

Contact us Find a dealer Test drive this product

Category	Title	Version
Comparison Chart	Media Axis vs. Media Axis 2 (MAX2) — Comparison Chart	1.0	Download
User Manual	MAX2 — User Manual	2.5	Download
Application Diagram	MAX2 — Multiview Application Diagram	5.5	Download
Application Diagram	MAX2 — Dante Application Diagram	2.0	Download
Product Catalog	MAX2 — Product Catalog	1.1	Download
Product Catalog	TAA — Product Catalog	1.3	Download

The MAX2-12X 4K60 Matrix and Extension System is the next generation of the most advanced and complete modular matrix switching and extension solution in the world. The MAX2-12X features a variety of cards and extension capabilities, as well as hot swappable cards, redundant power supplies, advanced cooling system, and much more.

Key Features

Omni-Flex™ Modular Design with Hot-Swappable PSU, MCU, I/O, and Fans
AirLift™ Advanced Fan Blade Constant Pressure Cooling System
Redundant Power Supplies
Input / Output and System Diagnostics
HDCP-Compliance Notification
TAA & NDAA Compliant: Complies with Trade Agreements Act and National Defense Authorization Act Regulations

Input/Output Card Features

Built-in Motore™ 2.0 Scaling and Don’t Blink™ Switching
Auto-EDID (EDID Library and Emulation)
Embedding and De-embedding of independent 2ch LPCM and Analog Audio Signals
Embedding and De-embedding of Dante™ IP Audio
Multiview and Videowall Processing
Bi-directional, RS-232 and LAN Control to Endpoints
Fiber and HDBaseT™ 3.0 Chassis and Single Gang Wall Plates available

Audio/Video & Transmission Technologies

Up to Ultra HD 4K/60Hz 4:4:4 HDR
HDMI 2.0 | HDCP 2.2
DisplayPort v1.2
12G-SDI
HDBaseT™ 3.0 uncompressed 4K/60Hz 4:4:4
1LC Fiber with Adaptive Multimode/Singlemode Processing Up to 984 ft (300m) via multimode and Up to 1.24mi (2KM) via singlemode

Core Technologies
Dante™ Audio	Provides seamless distribution of high-quality, uncompressed audio signals throughout the system
Motore 2.0™	Full-featured 4K60 4:4:4 media processing and auto-scaling with frame rate conversion available at every input and output card
AirLift™	Modular AirLift™ fan blade technology provides consistent, reliable airflow for direct cooling of matrix components, helping Media Axis™ 2 operate at peak efficiency and performance
Omni-Flex™	Fully modular, adaptive, and scalable technology with upgradeable components, including hot-swappable I/O cards, AirLift™ cooling units, and power supplies

Specifications

Hardware
Matrix Switcher	12 × 12 digital matrix, chassis only; 3 × Input slots, 3 × Output slots
Military Compliance	Trade Agreements Act (TAA), National Defense Authorization Act (NDAA)
Input Signal Type(s)	Configurable via Media Axis 2™ universal input cards: HDMI 2.0, HDBaseT 3.0, 1LC single-mode or multimode fiber, DisplayPort 1.2, 12G-SDI, and Dante™ audio
Output Signal Type(s)	Configurable via Media Axis 2™ universal output cards: HDMI 2.0, HDBaseT 3.0, 1LC single-mode or multimode fiber, DisplayPort 1.2, 12G-SDI, and Dante™ audio
Performance
Resolutions	Up to 4K@50/60Hz (4:4:4)
Video Bandwidth	18 Gbps
HDR Support	HDR
Control Options	LCD display (standard), RS-232, LAN
Cooling System	1 × Removable AirLift™ fan blade assembly; fan noise: 60–70dB
Main Power	2 × Removable, redundant 100–240VAC, 50/60Hz power modules
Power Supply	100–240VAC, 50/60Hz
Maximum Power Consumption (Internal PSU*) / PoH via MAX2-PSU-F	320W / 650W x # of MAX2-PSU-F
Power Injection for CATx Extenders	MAX2-PSU-F sold separately
Operating Temperature	32° to 117°F / 0° to 47°C
Storage Temperature	-40° to 158°F / -40° to 70°C
Relative Humidity	0–90% non-condensing
MTBF	50,000 hours
Enclosure
Enclosure Type	All-metal construction with dark gray powder-coated finish
Product Dimensions	17.2 in × 14.5 in × 6.97 in (436.88mm × 368.3mm × 177.04mm)
Product Weight	22 lbs (10kg)
RU	4
Warranty
Warranty	5 year
