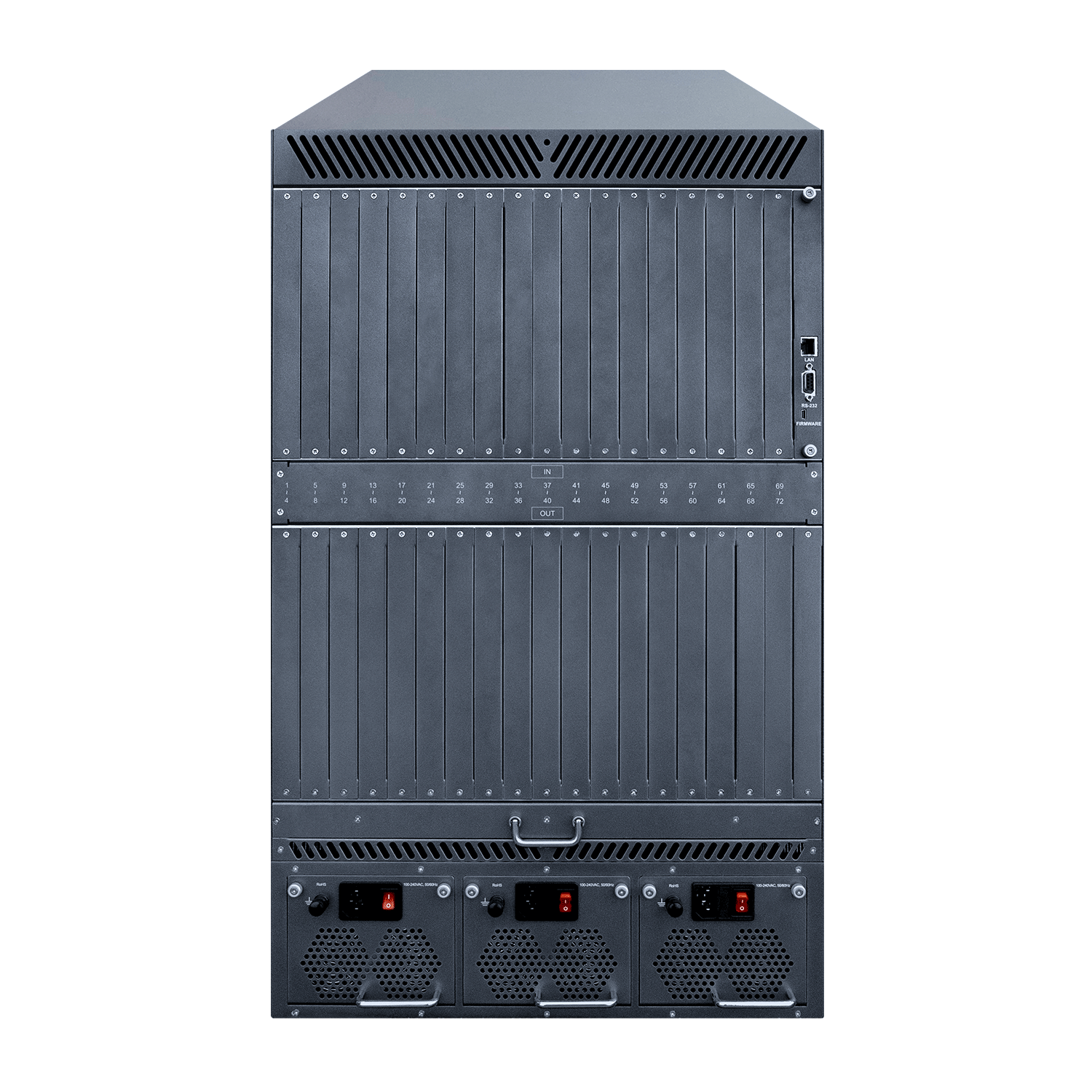

The MAX2-72X 4K60 Matrix and Extension System is the next generation of the most advanced and complete modular matrix switching and extension solution in the world. The MAX2-72X features a variety of cards and extension capabilities, as well as hot swappable cards, redundant power supplies, advanced cooling system, and much more.

Key Features

• Omni-Flex™ Modular Design with Hot-Swappable PSU, MCU, I/O, and Fans
• AirLift™ Advanced Fan Blade Constant Pressure Cooling System
• Redundant Power Supplies
• Optional PoH power supply for the HDBaseT™ 3.0 Extenders (MAX2-POH-PSU-V2)

• Input / Output and System Diagnostics
• HDCP-Compliance Notification
• TAA & NDAA Compliant: Complies with Trade Agreements Act and National Defense Authorization Act Regulations

Input/Output Card Features

• Built-in Motore™ 2.0 Scaling and Don’t Blink™ Switching
• Auto-EDID (EDID Library and Emulation)
• Embedding and De-embedding of independent 2ch LPCM and Analog Audio Signals
• Embedding and De-embedding of Dante™ IP Audio
• Multiview and Videowall Processing
• Bi-directional, RS-232 and LAN Control to Endpoints
• Fiber and HDBaseT™ 3.0 Chassis and Single Gang Wall Plates available

Audio/Video & Transmission Technologies

• Up to Ultra HD 4K/60Hz 4:4:4 HDR
• HDMI 2.0 | HDCP 2.2
• DisplayPort v1.2
• 12G-SDI
• HDBaseT™ 3.0 uncompressed 4K/60Hz 4:4:4
• 1LC Fiber with Adaptive Multimode/Singlemode Processing Up to 984 ft (300m) via multimode and Up to 1.24mi (2KM) via singlemode


Specifications
