The VIP-T400-D provides professional UltraHD/4K60 4:4:4 HDR HDMI and USB/KM over IP streaming with ultra-low latency and versatile connectivity. Designed for mission-critical AV, government and military, and 24/7 operations, it transports HDMI, audio, RS-232, IR, and USB signals—including USB cameras—over CAT and fiber networks with precision and reliability. Multi-platform control and management simplify deployment, switching, and matrixing for complex AV environments.

The VIP-T400 offers point-to-point extension up to 120m, and network switch extension up to 240m over CAT 6A, and from 300m to 2km over SM/MM fiber, along with expansion to layered distribution and matrix switching via optional network switching and control, such as PureLink's VIP-NET and iCON. Audio insertion/extraction, built-in videowall processing, and instant switching ensure seamless operation, while TAA compliance provides government readiness.

Key Features

• Ultra HD/4K60 4:4:4 HDR HDMI and USB/KM AV over IP
• Ultra-low latency (<17 ms)
• HDMI, audio, RS-232, IR, and USB extension (including USB cameras)
• Point-to-point extension over CAT6A up to 120m, network switch up to 240m, SM/MM fiber from 300m to 2km
• HDCP 2.2
• Built-in videowall processing up to 8×8
• Built-in scaler (decoder) and image rotation 90°, 180°
• Instant switching at same resolutions
• Audio insertion/extraction
• Dolby, DTS, LPCM
• USB 2.0 extension for keyboard, mouse, camera, or storage
• IR and RS-232 extension with TCP/IP to RS-232 conversion
• Multiple control options: PureLink iCON™ Control/Automation, Crestron/QSC plug-ins, third-party integration via API, front panel buttons
• Matrix switching up to 999 sources and 65K displays
• Comprehensive diagnostics via API
• PoE (7–8.5W) or AC/12V power

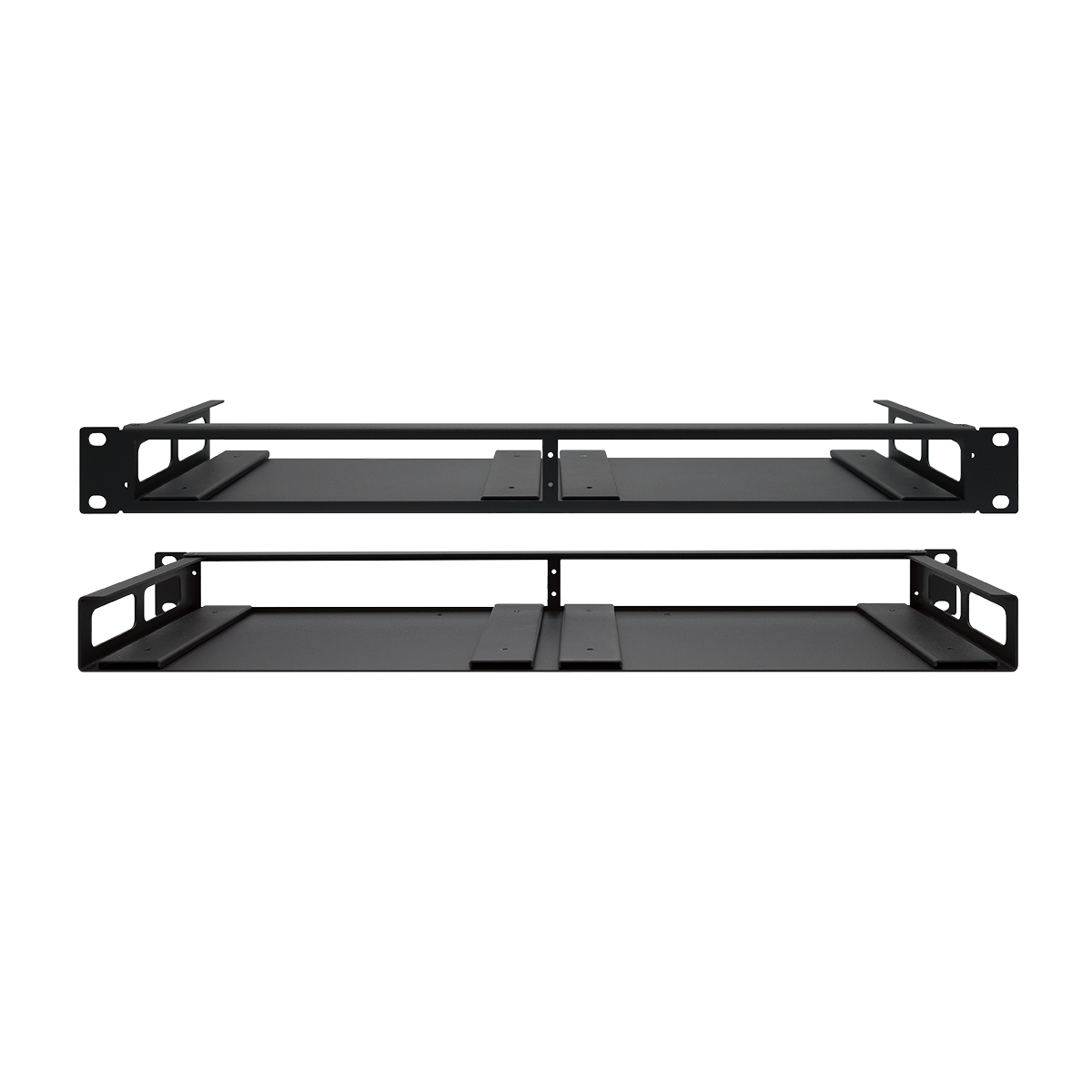

• Rack-mount option
• TAA-compliant
