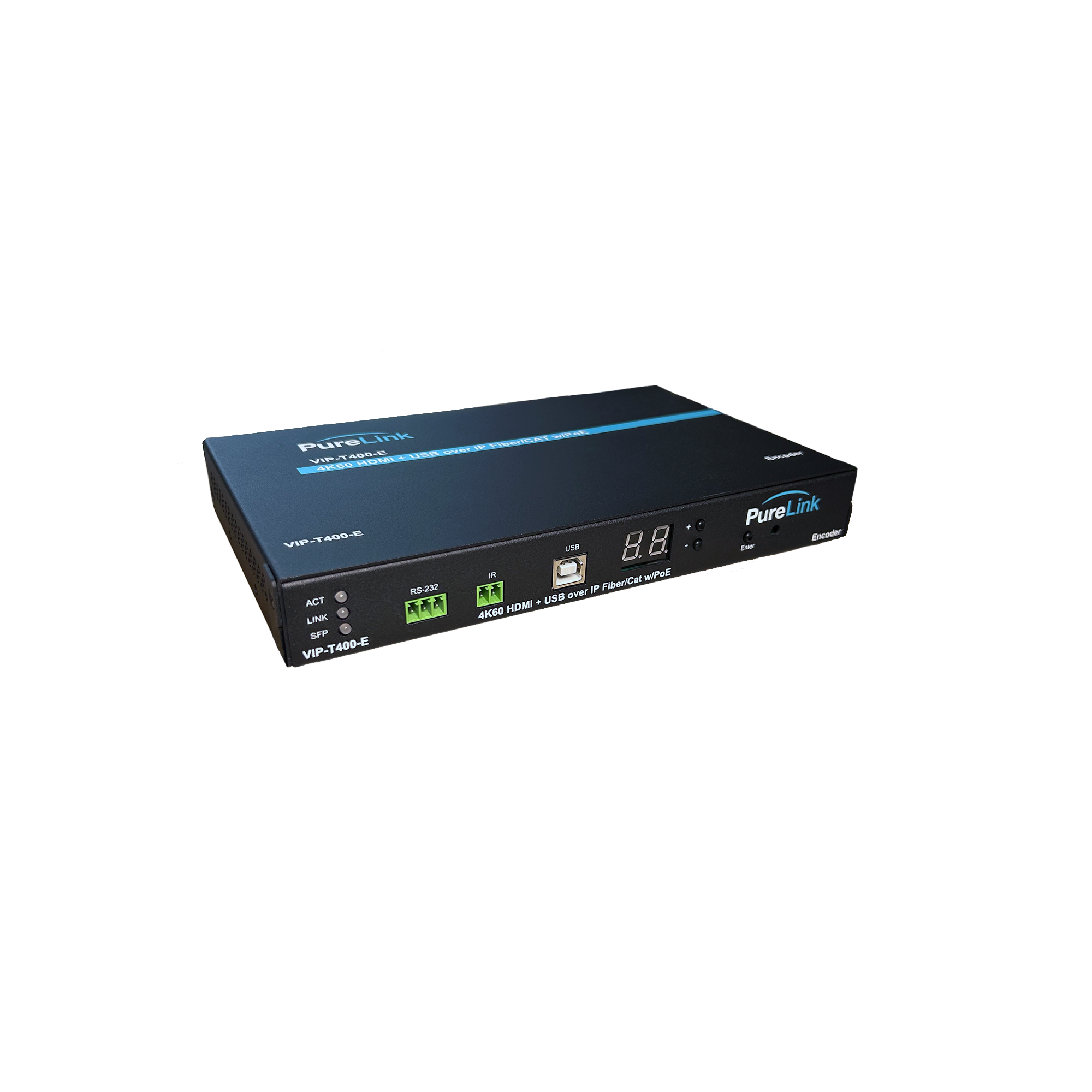

The VIP-T400-E delivers professional Ultra HD/4K60 4:4:4 HDR HDMI and USB/KM over IP distribution with ultra-low latency and versatile CAT and fiber connectivity. Designed for mission-critical AV, government and military applications, and 24/7 operations, it transports HDMI, audio, RS-232, IR, and USB signals, including USB cameras, over CAT and fiber networks with precision and reliability. Multi-platform control and management simplify deployment, switching, and matrix routing for complex AV environments.
When paired with the VIP-T400-D, the VIP-T400-E provides point-to-point extension up to 394 ft (120 m) and network switch extension up to 787 ft (240m) over CAT6A. Its included multimode SFP modules provide fiber transmission up to 1,640 ft (500m), while optional single-mode SFP modules extend the reach up to 1.24 miles (2km). It also scales to layered distribution and matrix switching with optional network switching and control through solutions such as PureLink VIP-NET and iCON. Audio insertion and extraction, built-in videowall processing, and instant switching keep operation seamless, while TAA compliance makes it well suited for government applications.
Key Features
- Ultra HD/4K60 4:4:4 HDR HDMI and USB/KM AV over IP with ultra-low latency under 17 ms
- Extends HDMI, audio, RS-232, IR, and USB 1.1/2.0 signals, including keyboards, mice, storage, and USB cameras
- Point-to-point extension up to 394 ft (120m) over CAT6A and up to 787 ft (240m) through a network switch
- Included multimode SFP modules extend fiber signals up to 1,640 ft (500m); optional single-mode SFP modules extend up to 1.24 miles (2km)
- HDCP 2.2 compliant with instant switching between matching resolutions
- Built-in videowall processing up to 8×8
- 90° and 180° image rotation
- Audio insertion and extraction
- Dolby, DTS, and LPCM compatibility
- HDMI loop-out on the encoder
- IR extension
- RS-232 extension with TCP/IP-to-RS-232 conversion
- Control via PureLink iCON™, front-panel controls, Crestron and Q-SYS plug-ins, and third-party API integration
- Comprehensive API diagnostics including device discovery, signal data, push notifications, and EDID
- Scalable matrix switching up to 999 sources and 65K displays
- Powered via PoE or power adapters
- Optional rack-mount available
- TAA compliant
Specifications
| Standards & Compliance |
|
| Signal Standards |
HDMI 2.0, CAT6A, CAT5e
|
| Compliance |
TAA |

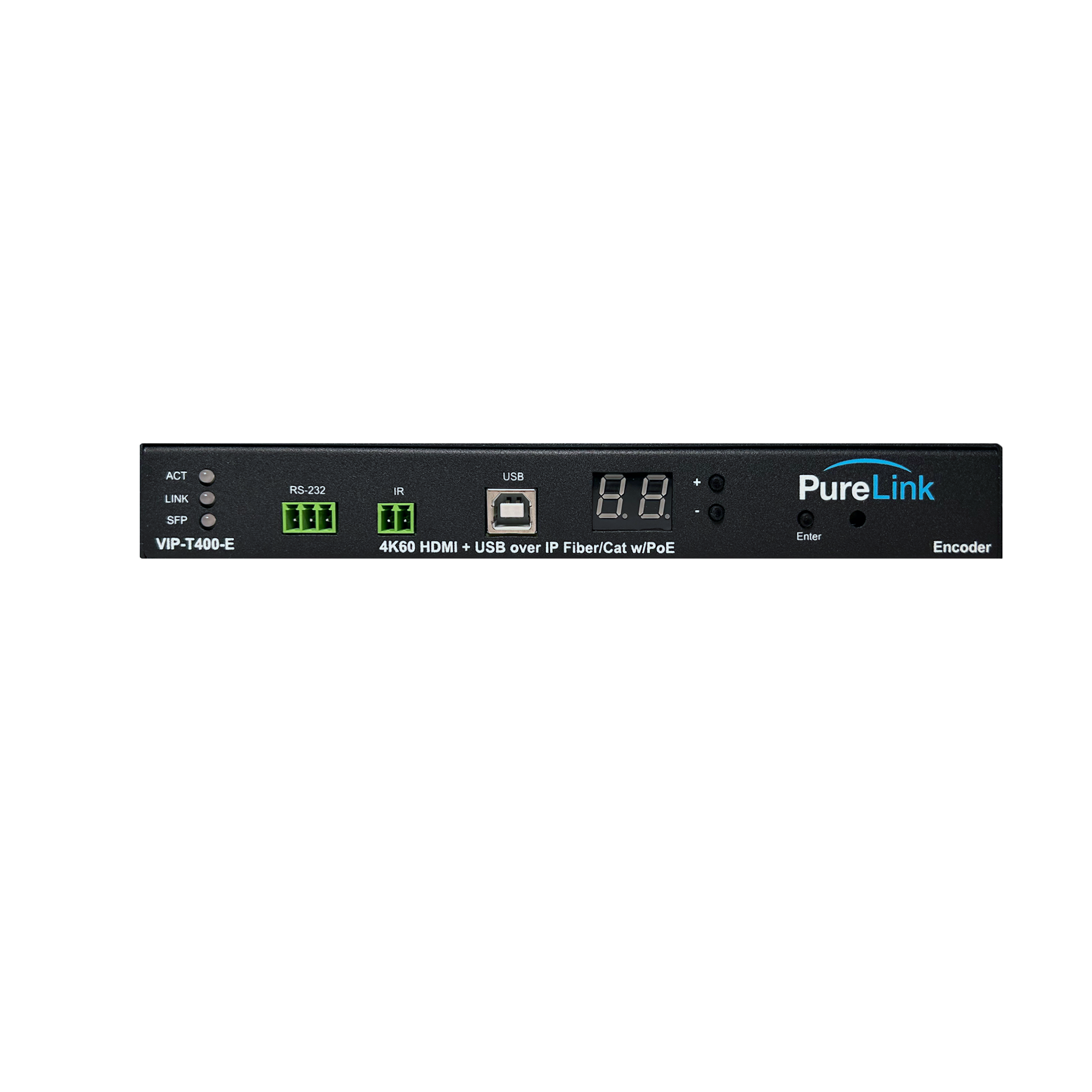

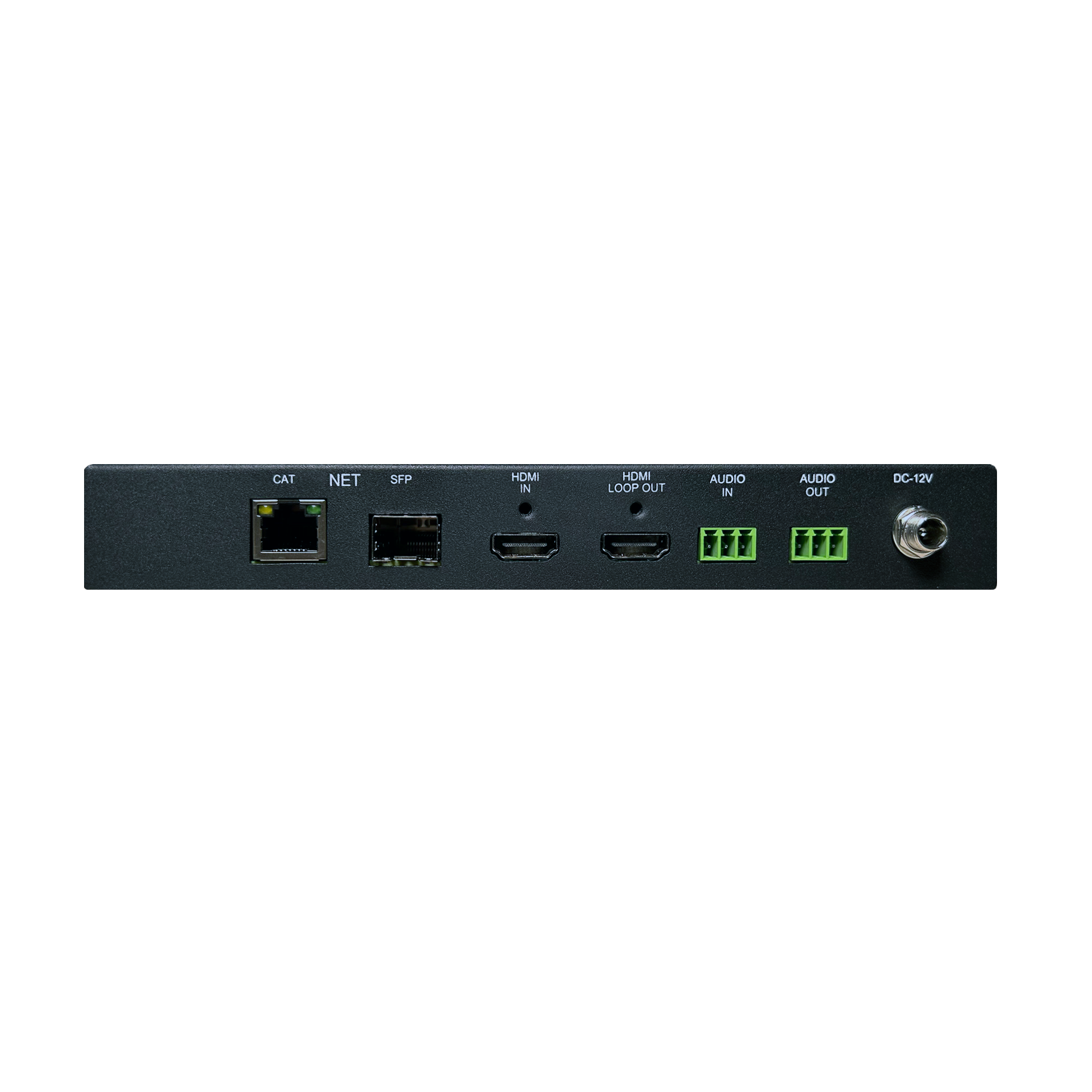

Encoder Connector Types
|
|
| HDMI Inputs - TX |
1 × HDMI IN (Type A, 19-pin female) |
| Loop out - TX |
1 × HDMI OUT (Type A, 19-pin female) |
| CATx - TX |
1 × LAN (RJ45) |
| IR In - TX |
3.5mm 2-pin Phoenix, Unidirectional
|
| IR Out - TX |
3.5mm 2-pin Phoenix |
| RS-232 - TX |
3.5mm 3-pin Phoenix |
| Audio Inputs - TX |
3.5mm 3-pin Phoenix |
| Audio Outputs - TX |
3.5mm 3-pin Phoenix |
| Fiber - TX |
2 LC Single mode, multimode-1G SFP Slot |
| USB Devices - TX |
1 × USB-B |
Performance
|
|
| Fiber Transmission Distance |
2km via Single mode |
| CATx Transmission Distance |
150M via CAT6a |
| Codec |
JPEG2000 |
| Max Video Resolution |
4K60 (4:4:4) |
| Data Rate |
50-850 mbps |
| HDR |
HDR10+, HDR10, HDR, Dolby Vision
|
| HDCP |
HDCP 1.4 Input , HDCP 2.2 Input, HDCP 1.4 Output
|
| HDMI Audio Formats |
LPCM, DTS-HD Master Audio, Up to 7.1 channels 192 KHz, Dolby TrueHD
|
| Power Supply (Optional) |
12V DC Input |
| RS-232 Support |
Bi-directional RS-232, RS-232 Extension
|
| IR Extension |
3.5mm 3-pin Phoenix |
| Latency |
<17 mS |
Software
|
|
| Control Automation |
Crestron, AMX, Extron
|
| VPX Software Suite |
Yes |
| Software |
iCON, VPX
|
Communications & Control
|
|
| Control Ports |
RS-232, IR, TCP/IP
|
Power Transmitter
|
|
| Power Input |
PoE (IEEE 802.3af) |
| Power Supply |
DC 12V/2A |
| Power Consumption |
20W (max) |
Enclosure
|
|

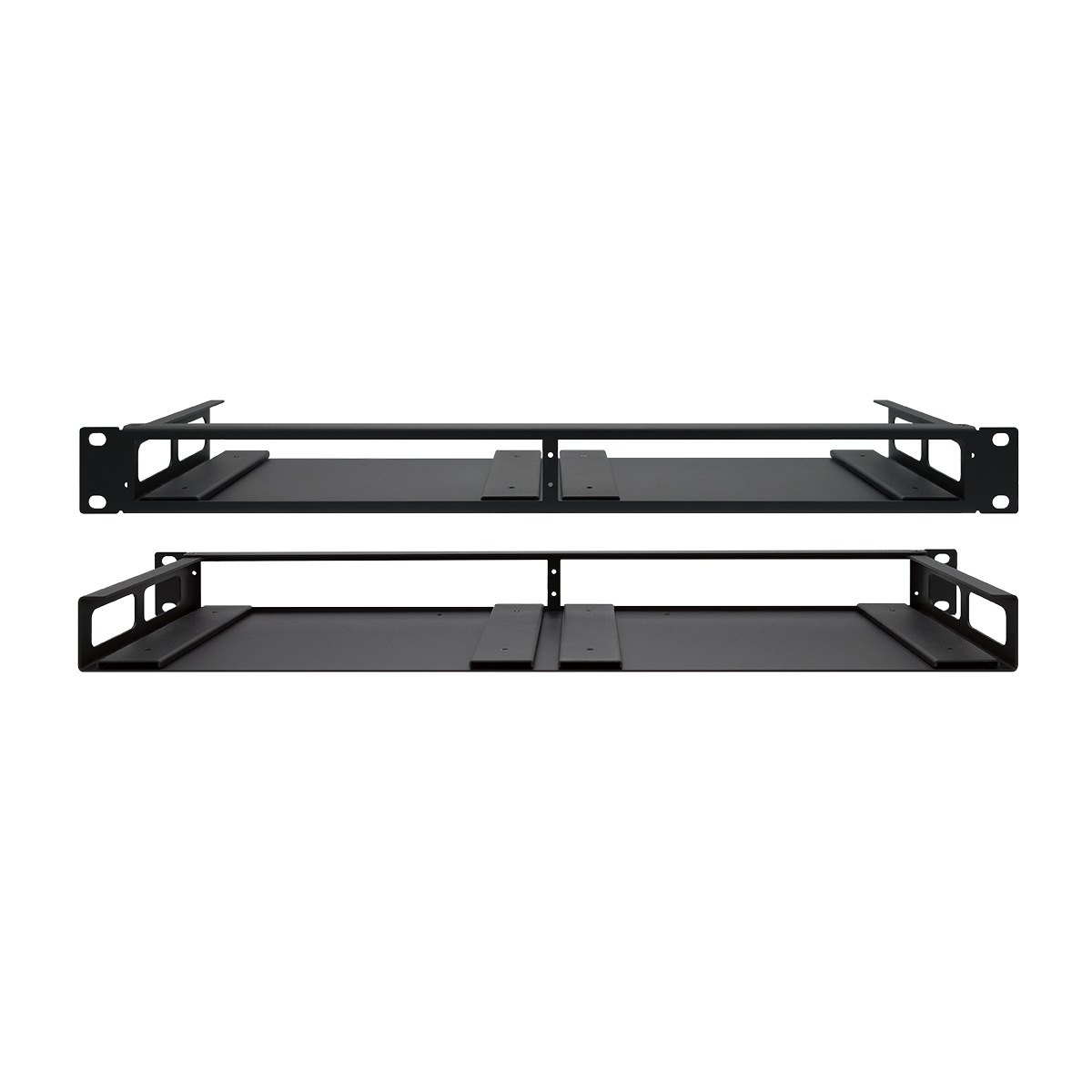

| Rack Mounting Option |
1-RU Rack Plate |
| Product Dimensions (W × D × H) |
8.125 in × 5.5 in × 1 in (205mm × 140mm × 25.4mm) |
| Weight |
1.5 lbs (680.38g) |
Warranty
|
|
| Parts |
3 year |
| Labor |
3 year |
