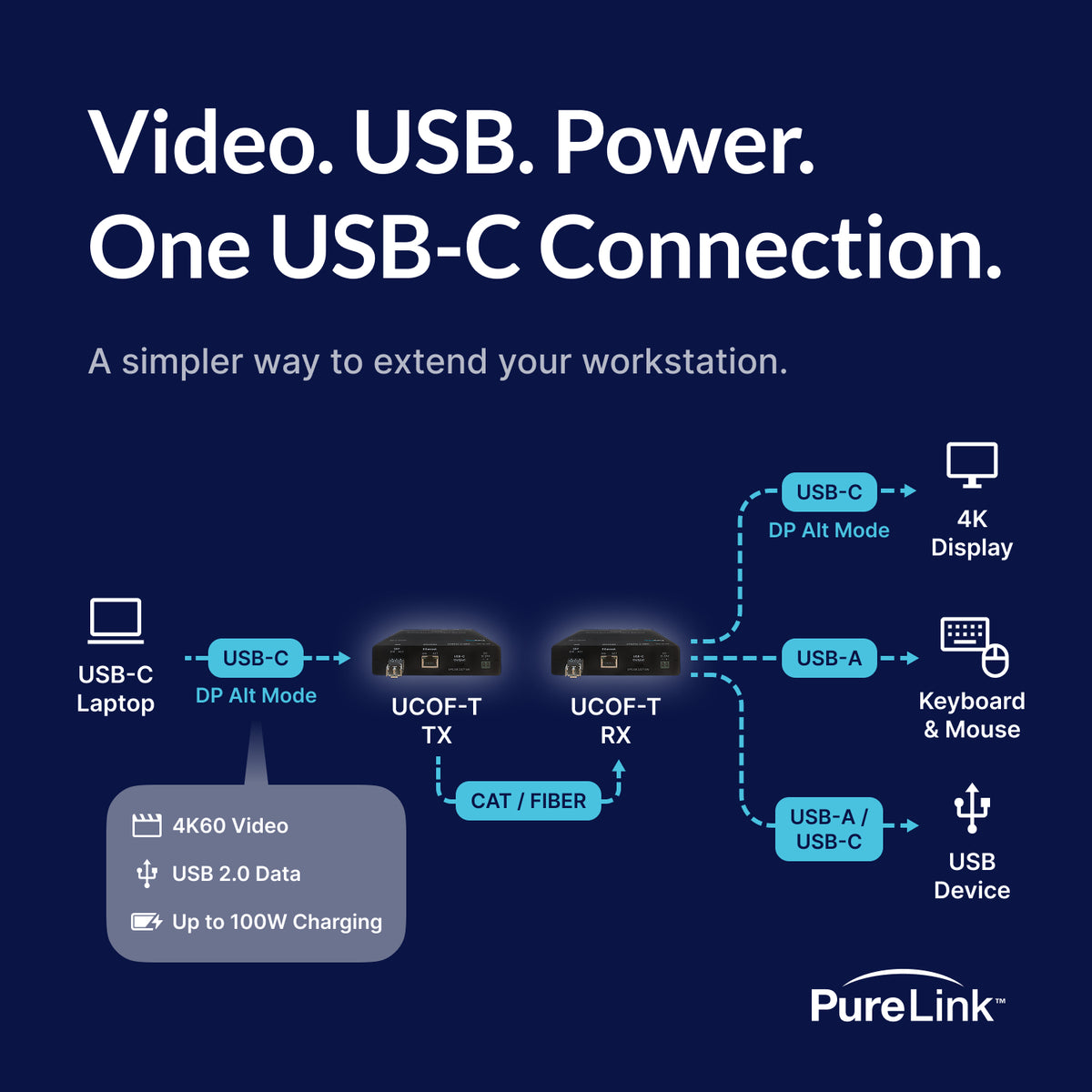

The UCOF-T extends 4K60 USB-C video over either CAT or fiber, giving installations the flexibility to choose the transmission method and distance that best fit the application. USB-C with DisplayPort Alt Mode carries high-resolution video from compatible laptops and devices, while 100W Power Delivery charges the connected USB-C source from the transmitter.

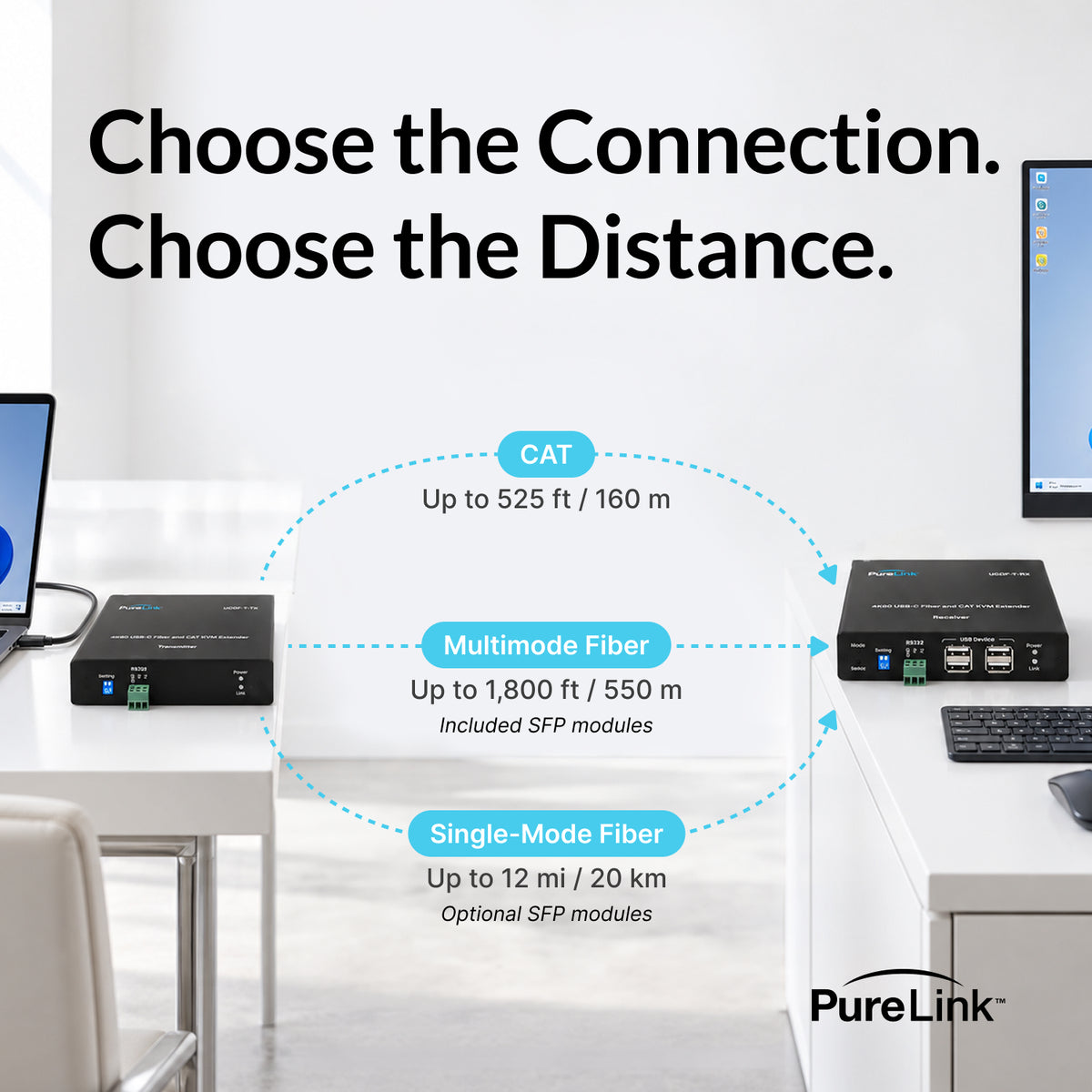

Use CAT cabling for extension up to 525 ft, or switch to fiber for significantly longer distances. The included multimode SFP modules extend signals up to 1,800 ft, while optional single-mode SFP modules increase the reach up to 12 miles.

USB 2.0 KVM extension allows keyboards, mice, and other USB peripherals to be located at the remote end, making the UCOF-T a versatile solution for workstations, control rooms, classrooms, and other applications requiring long-distance USB-C connectivity.

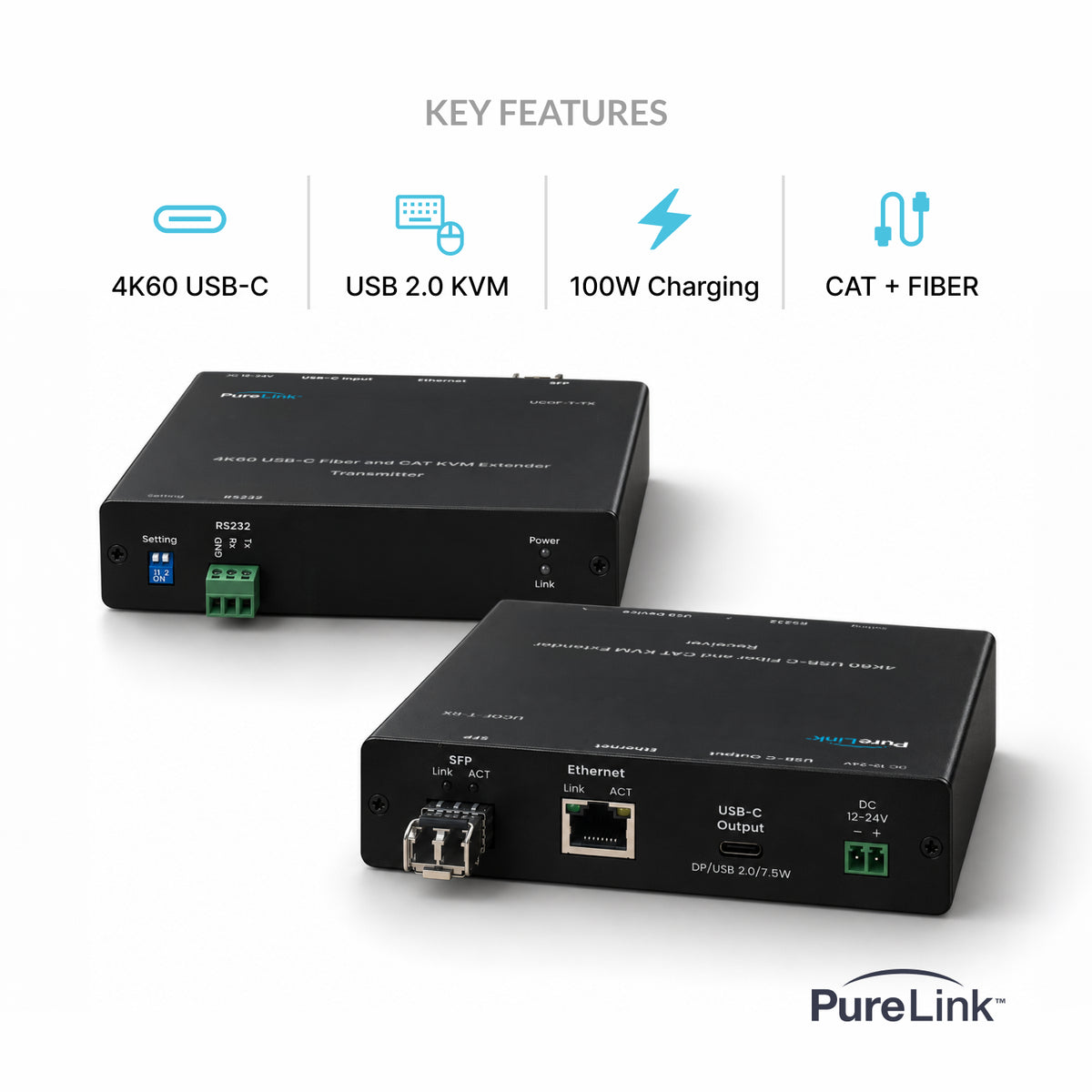

Key Features

• Extend 4K60 USB-C video over CAT or fiber
• USB-C input with DisplayPort Alt Mode
• Deliver up to 100W Power Delivery charging to compatible USB-C devices
• Extend over CAT up to 525 ft
• Extend over fiber up to 1,800 ft with included multimode SFP modules
• Reach up to 12 miles with optional single-mode SFP modules
• Extend USB 2.0 KVM for keyboard, mouse, and other peripheral connectivity
• Choose CAT or fiber transmission to match installation distance requirements
• Power supply included
• TAA Compliant
